Industrial compressor 270l, 5.5kW, 10bar, vertical tank

Industrial compressor 270l, 5.5kW, 10bar, vertical tank

Product code: CV-27053

Brand: Lincos

Manufactured in Italy, an outstanding wearability and a low rpm ensure a long lifetime, belt-driven, oil-lubricated compressor, cast pump. 827l/min, 270l tank, 10bar. Vertical tank, more compact
🔴 Out of stock
Gross price: 1.675,13 €
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank
Industrial compressor 270l, 5.5kW, 10bar, vertical tank

Product description

Description

  • Manufactured in Italy
  • An outstanding wearability and a low rotation speed ensure a long lifetime
  • Vertical tank, compact design
  • Stable, easily portable structure
  • Double stage, piston compressor
  • The indrawn air is pre-compressed by the first (larger) cylinder, then after cooling, further compressed by the second piston
  • Belt-driven, oil-lubricated
  • Cast pump (no overheating, no output loss, long lasting)
  • After-coolers make compressing more effective by cooling the air
  • Safety encasing
  • Aluminium, massive crankcase
  • Air filter
  • Oil sight gauge

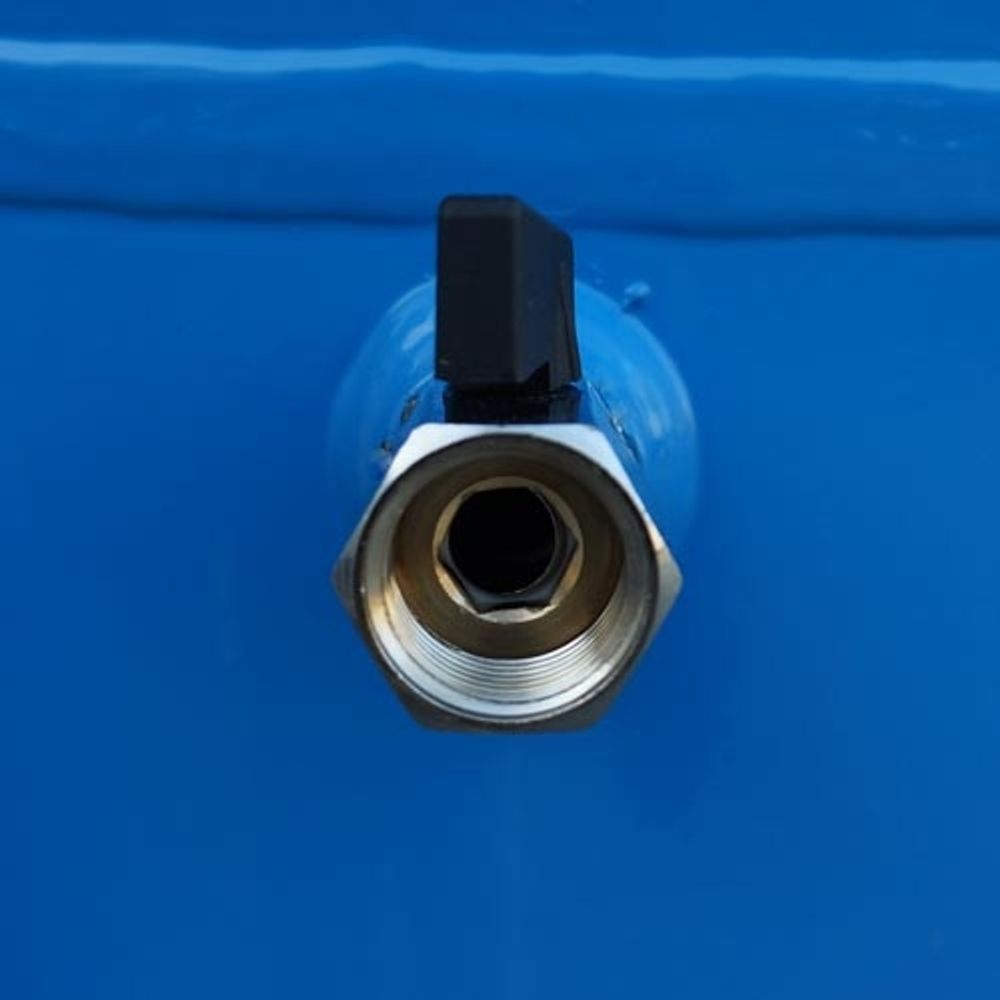

  • Faucet for condensed water drainage
  • The pressure switch can be set to a minimal pressure value of 4bar
  • Maximal pressure 10bar
  • Delta pressure 2bar

Technical details

  • Power 5.5kW
  • Voltage 400V
  • Tank capacity 270l
  • Air inlet capacity 827l/min
  • Air delivery 579l/min
  • Rotation speed 1450rpm
  • Operating pressure 10bar
  • Number of cylinders: 2
  • Number of pistons: 2
  • Weight 148kg
  • Size 650X1750mm

Product packing

Pack number Dimensions Weight
1 86 x 65 x 187 cm 148 kg
