Air condition pressure gauge for refrigerant R744
Product code: BGS-74435
Brand: BGS
Product description

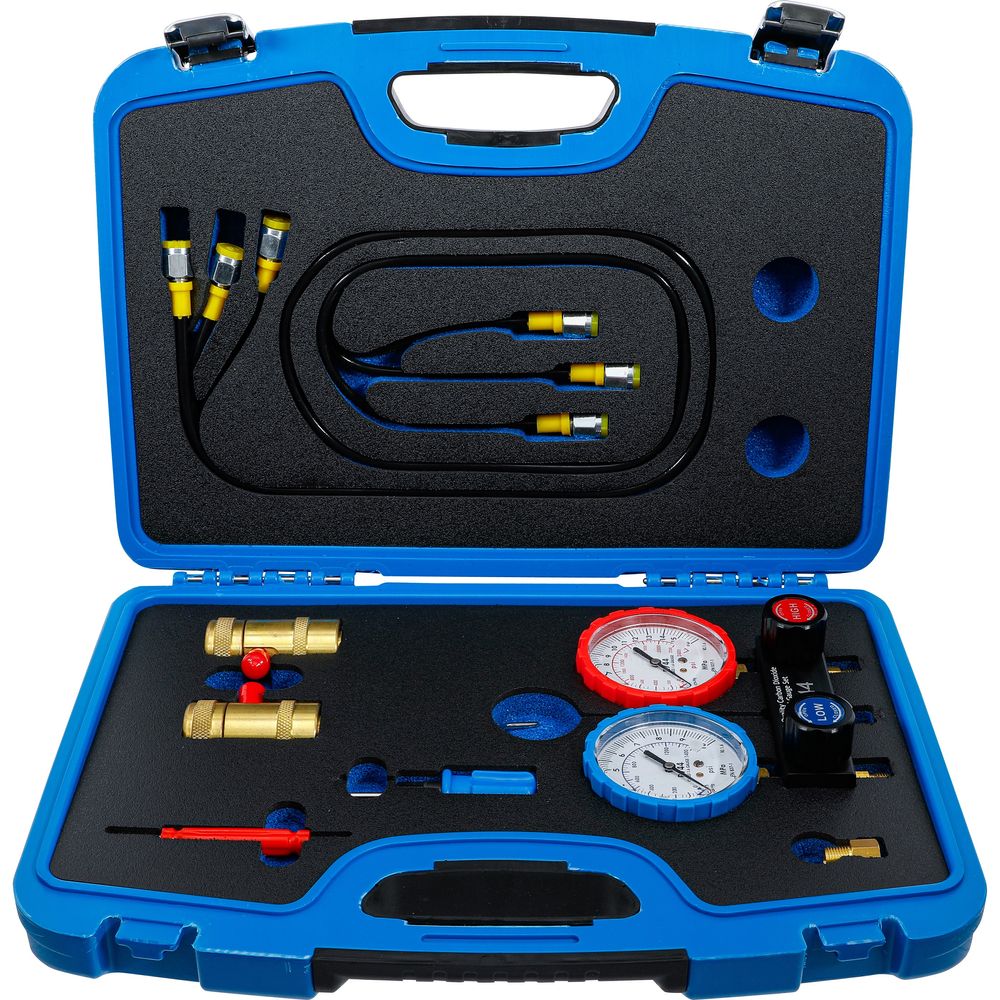

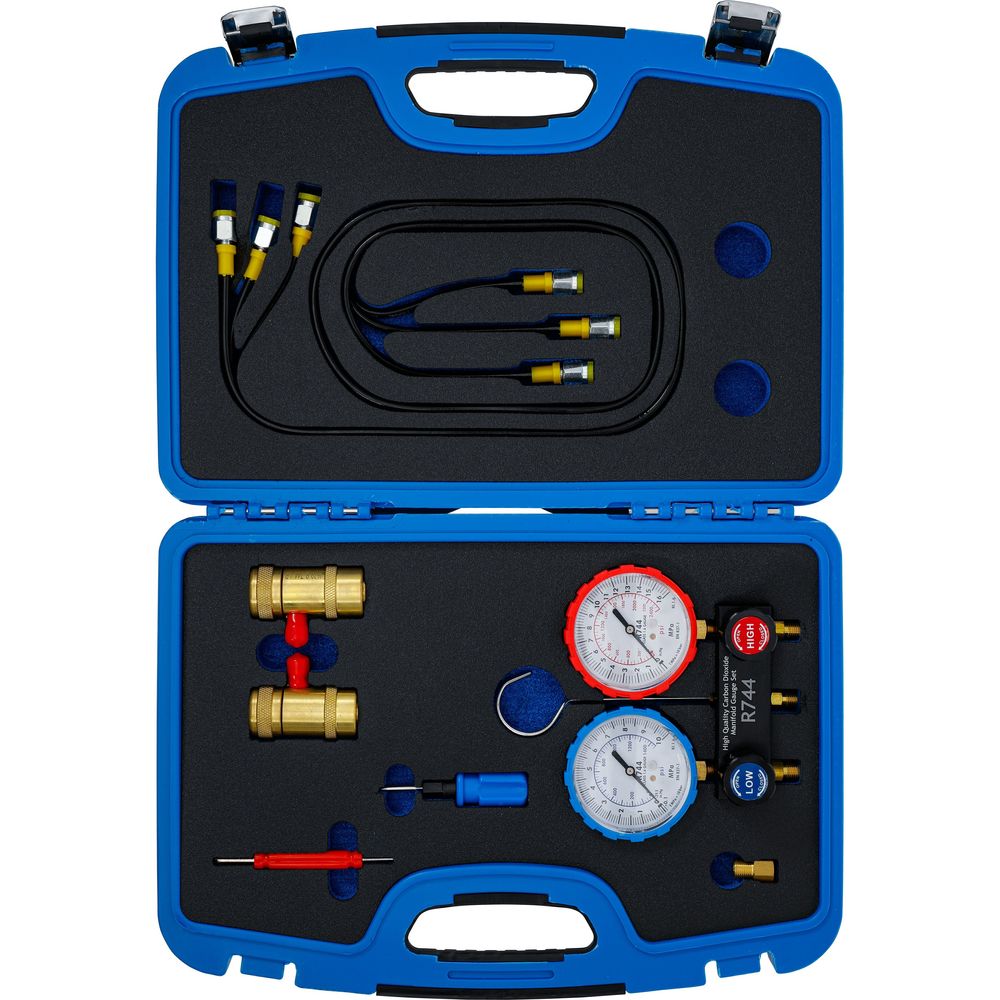

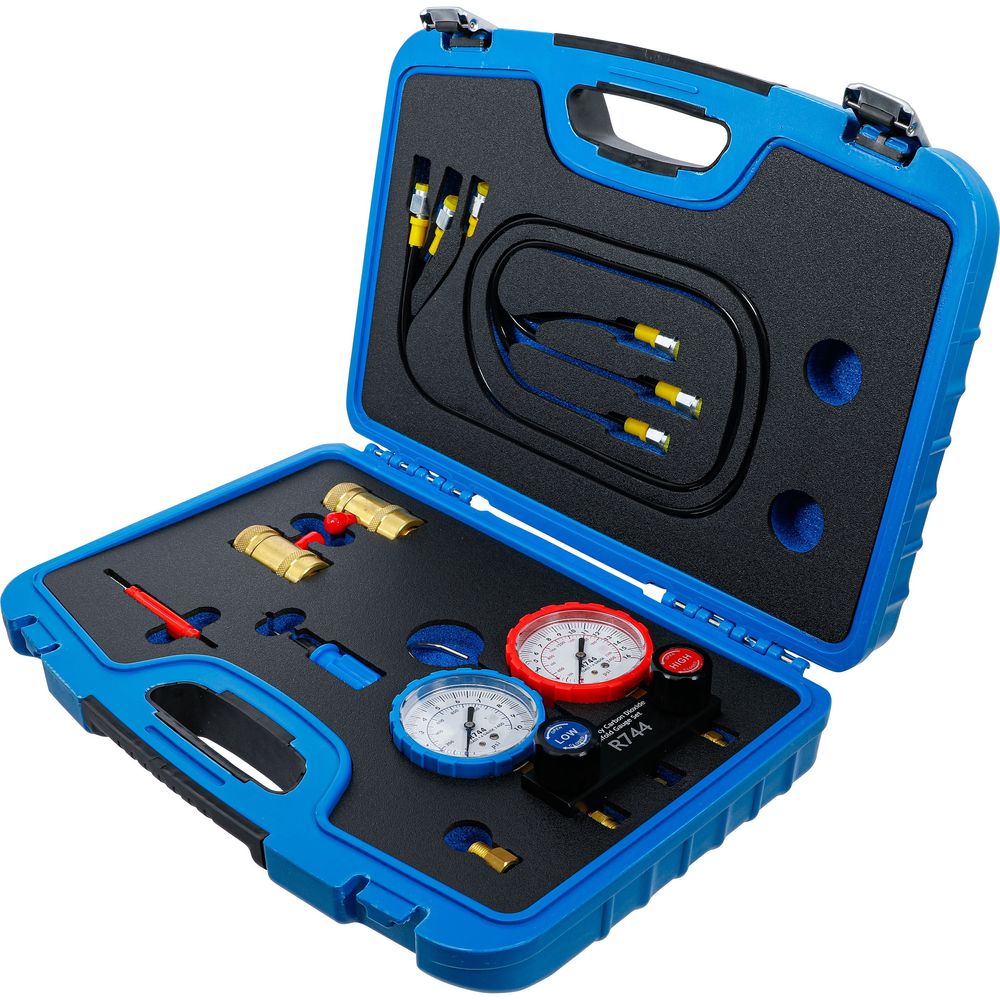

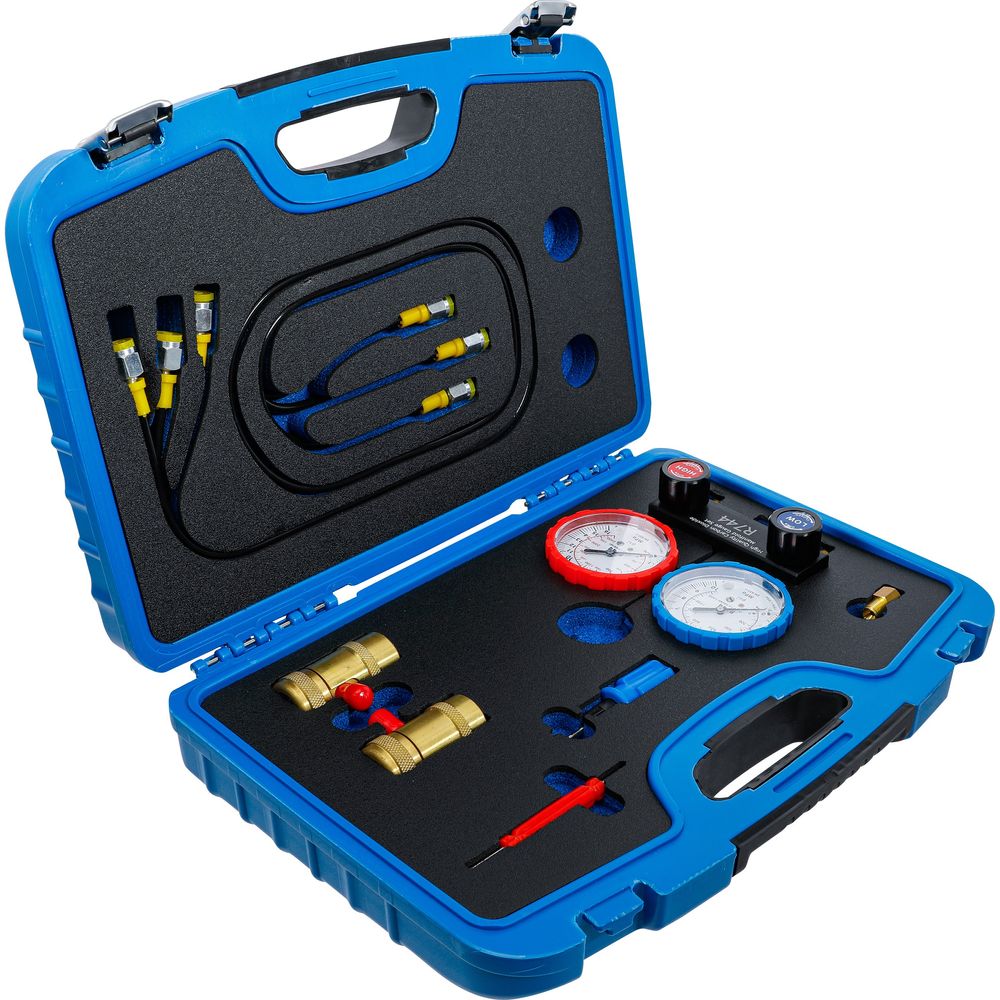

The air condition pressure gauge for refrigerant R744 is a professional-grade instrument designed for precise measurement of both high and low pressure in automotive and industrial air conditioning systems using R744 (carbon dioxide) refrigerant.
It includes high- and low-pressure hoses and a connection hose for integration with service devices. The central valve block is equipped with shut-off valves in piston design, allowing safe and controlled measurement. The system is enhanced with a retaining hook for easy suspension during diagnostics.
The pressure gauges, each 70mm in diameter, are shock-protected for added durability. Measurement ranges and resolutions are as follows:
-
Low-pressure gauge:
-
0–1425 PSI (resolution: 25 PSI)
-
0–10 MPa (resolution: 0.1 MPa)
-
-
High-pressure gauge:
-
0–2250 PSI (resolution: 50 PSI)
-
0–16 MPa (resolution: 0.2 MPa)
-
This gauge is an ideal replacement for damaged pressure gauges on existing service units, but it can also be used independently for diagnostic purposes without a service device.
Key features
| Feature | Specification |
|---|---|
| Refrigerant compatibility | R744 (CO₂) |
| Gauge type | High and low pressure |
| Gauge size | 70mm, shock-protected |
| Low-pressure scale | 0–1425 PSI / 0–10 MPa |
| High-pressure scale | 0–2250 PSI / 0–16 MPa |
| Resolution (low/high) | 25 PSI / 50 PSI; 0.1 MPa / 0.2 MPa |
| Valve type | Piston shut-off valves |
| Accessories | Hoses (high, low, service), retaining hook |
| Application | Service and diagnostics of A/C systems |
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 45.3 x 32.4 x 10.3 cm | 3.98 kg |
