Flushing machine for car air conditioning system
Product code: MS101P
Brand: MSG
A specialized flushing stand for cleaning AC system pipelines and components from contaminants and old oil using forced fluid circulation.
🔵
Available in 15 days
Gross price:
3.227,07 €

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system

Flushing machine for car air conditioning system
Product description

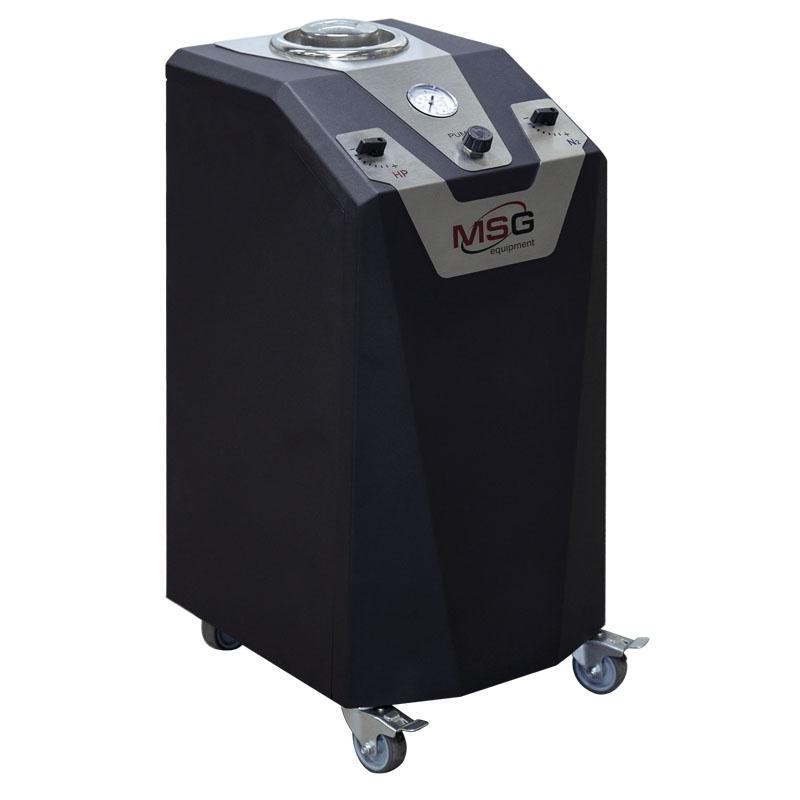

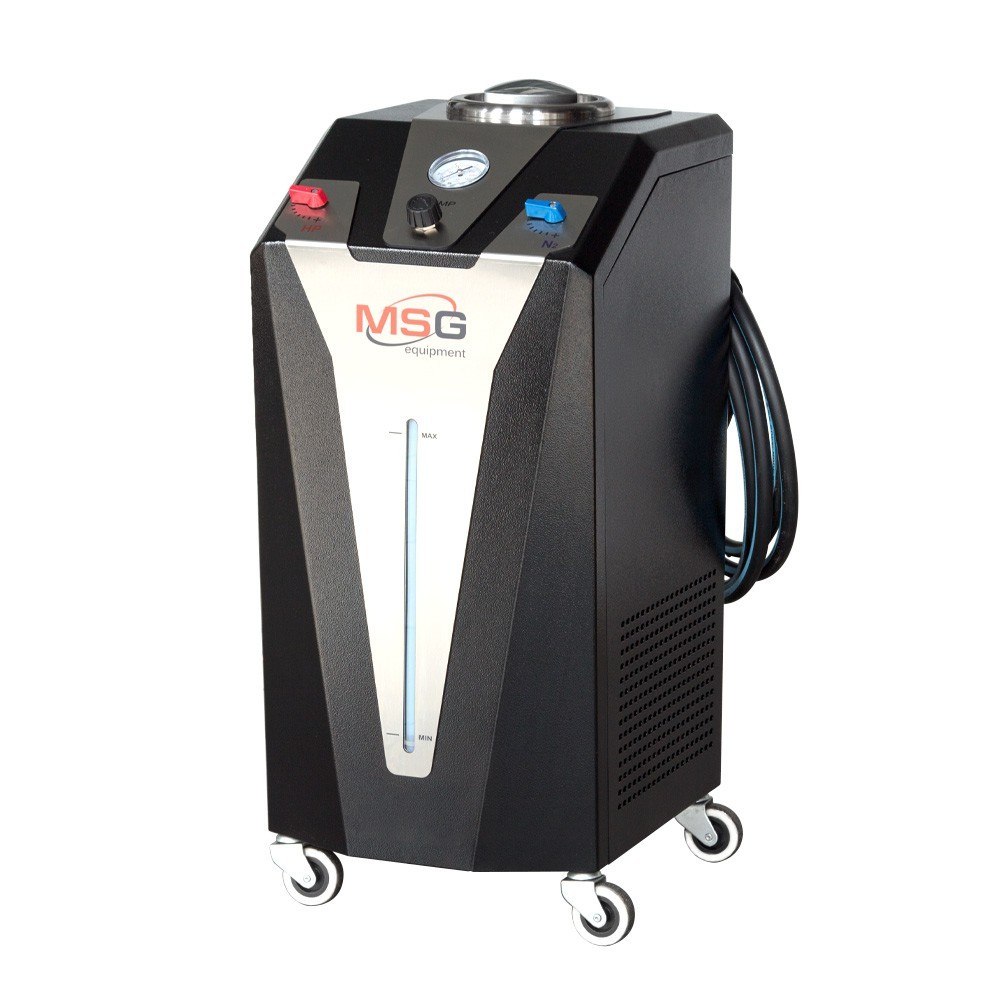

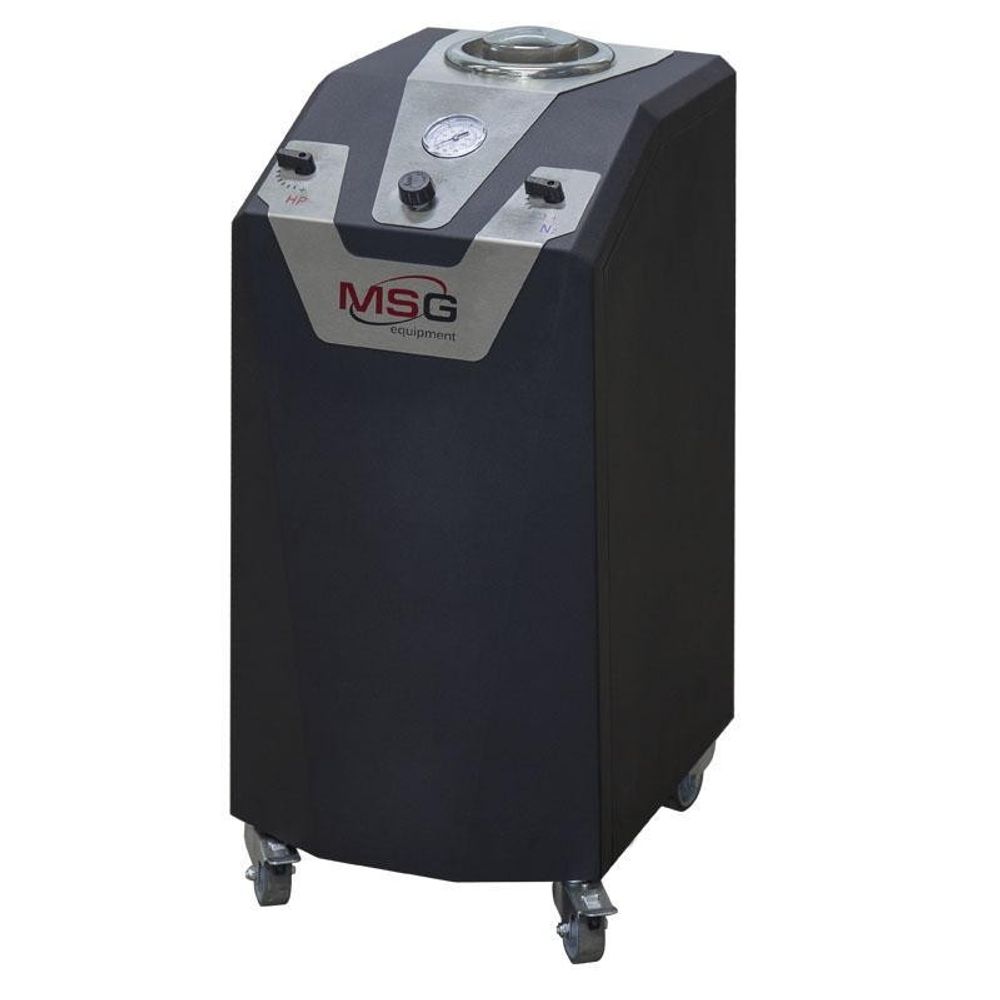

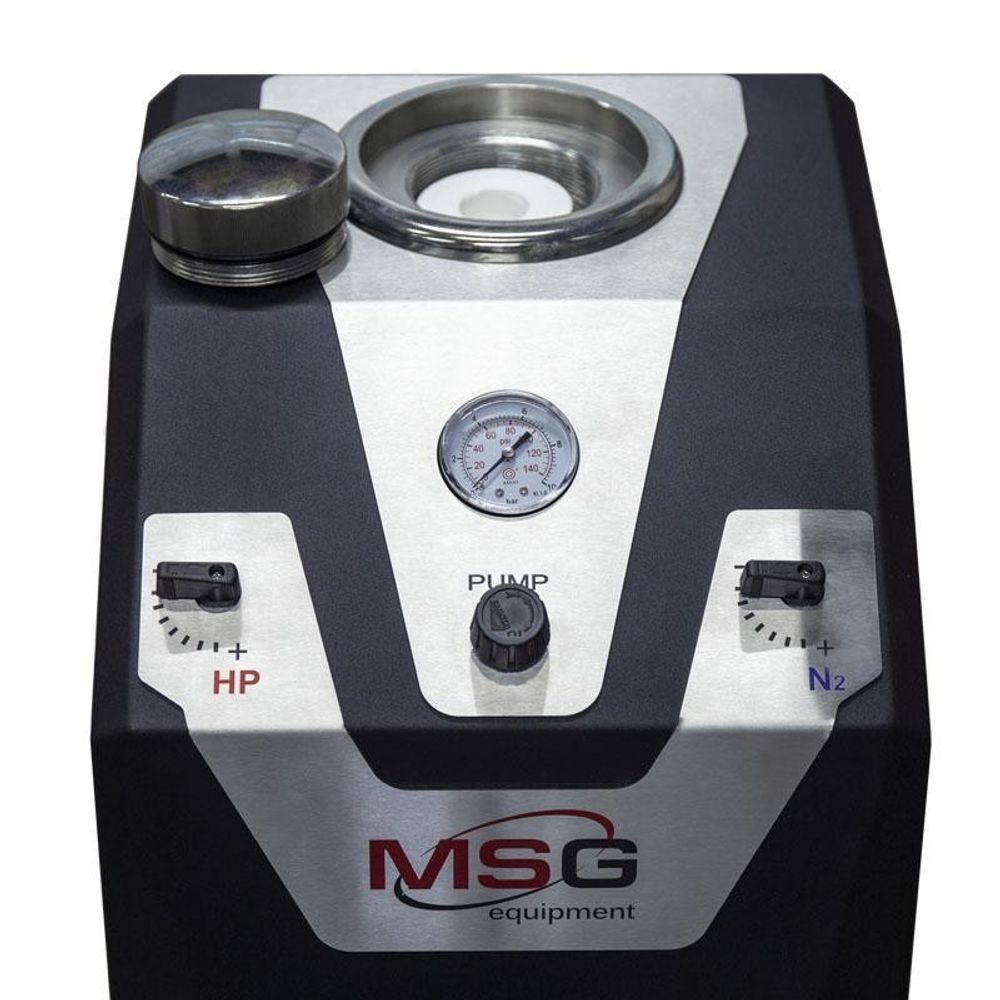

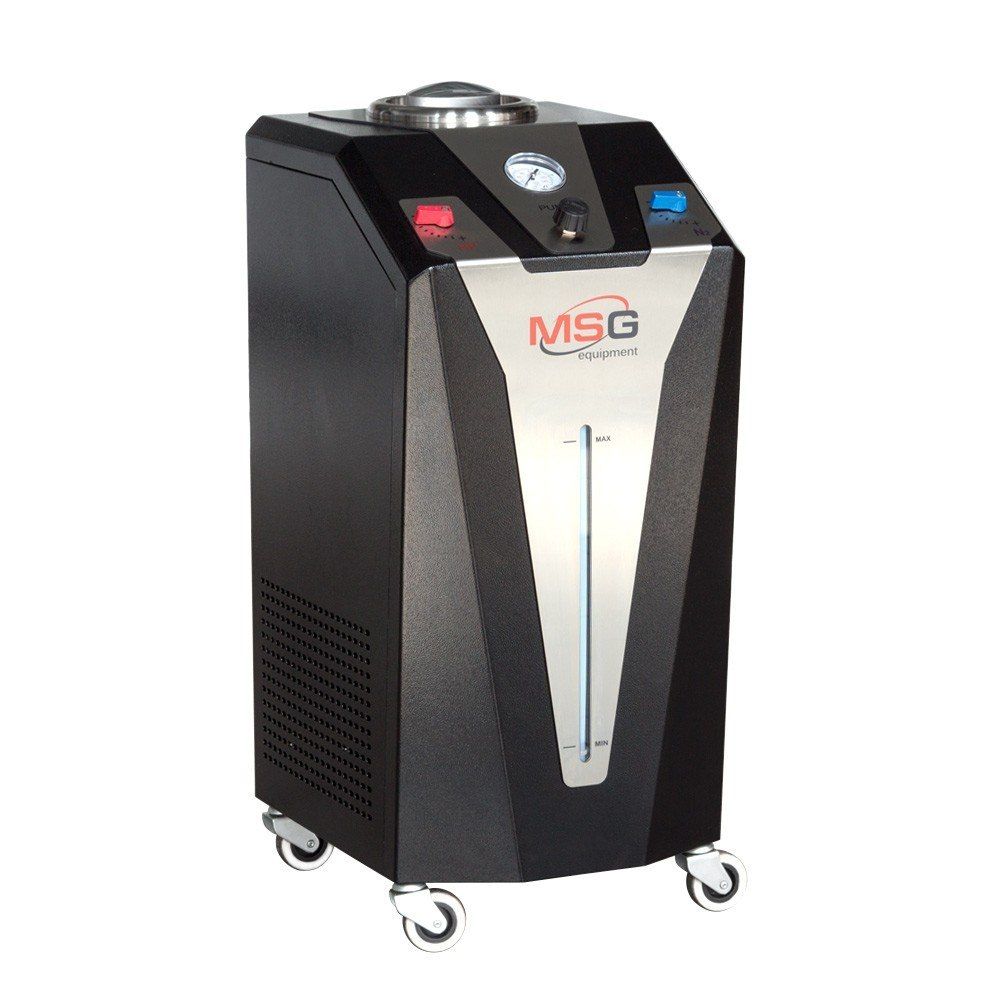

The MS101P flushing stand is designed for high-quality cleaning of air conditioning system pipelines and components during repair and maintenance. It operates by circulating flushing fluid through a closed system to remove contaminants effectively. After the process, compressed nitrogen is used to eliminate residual waste fluid from the system, ensuring a clean and dry finish.
Advantages
- Universal fixing mechanism for connection to any vehicle model
- Flushing with pulsating flow for improved cleaning efficiency
- Post-flushing system drying with nitrogen

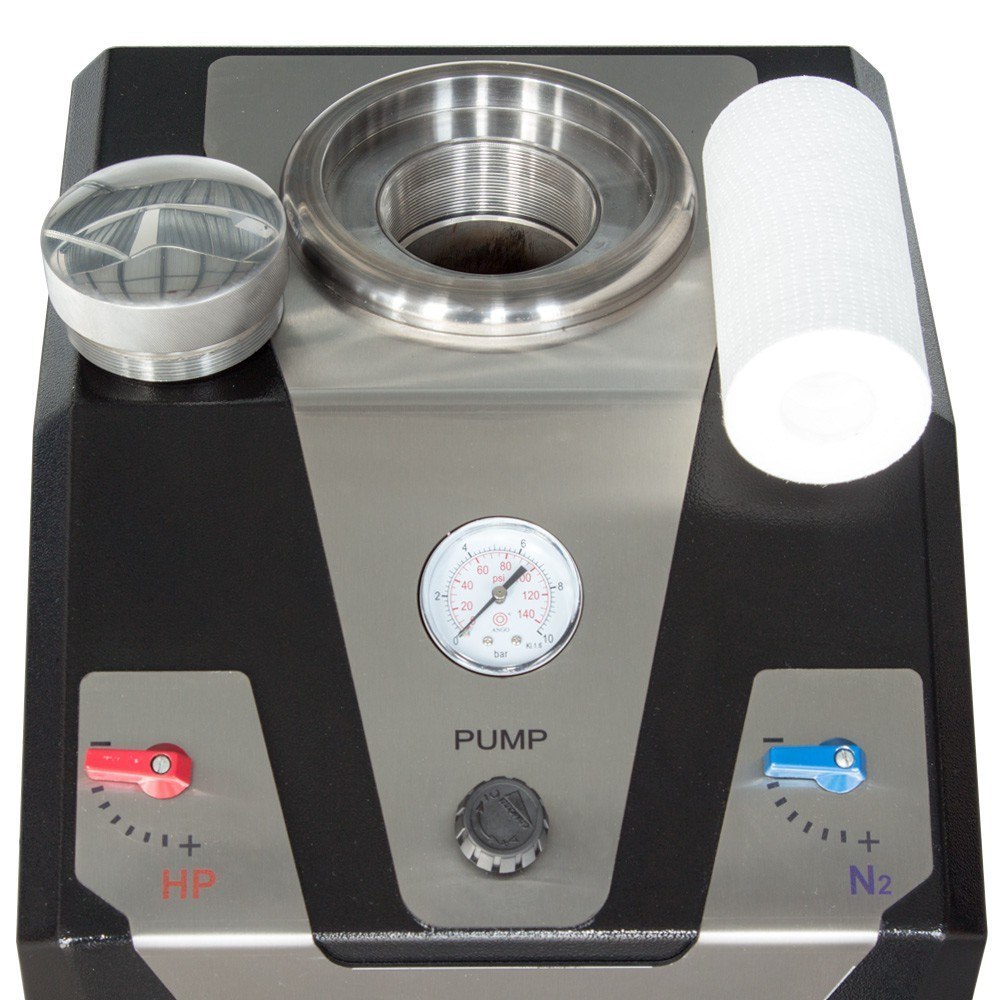

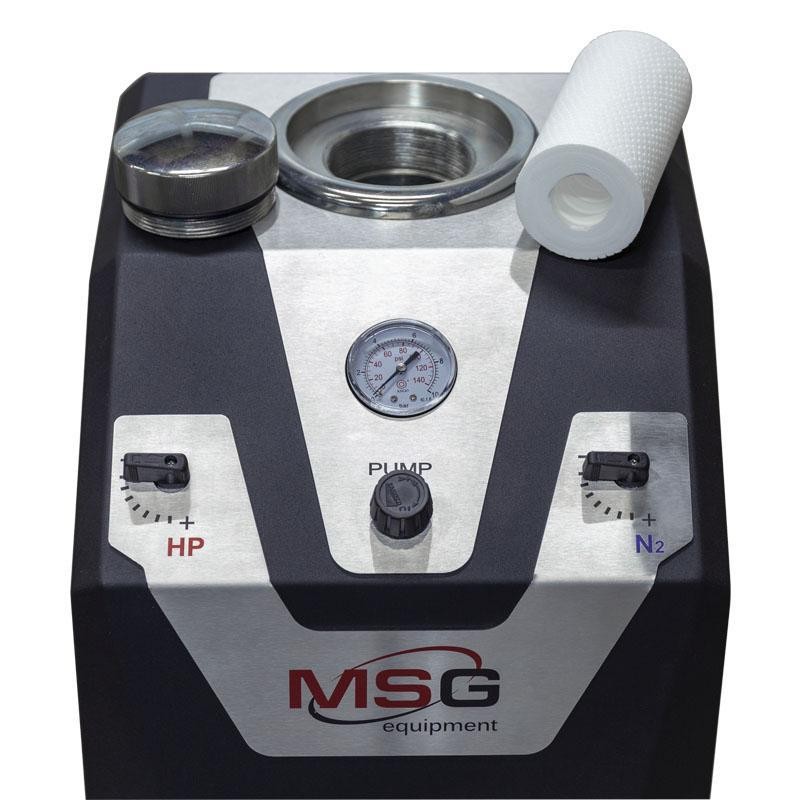

- Easy-to-replace filter
- Compact and mobile design
Technical specifications
Parameter | Value |
---|---|
Dimensions (L × W × H) (mm) | 350 × 300 × 670 |
Weight (kg) | 28 |
Power Source | Compressed air |
Operating Pressure of Pneumatic Line (bar) | 6 – 8 |
Maximum Air Consumption (l/min) | 250 |
Working Fluid | R141b or isopropyl alcohol |
Working Fluid Tank Capacity (l) | 15 |
Maximum Pump Capacity of the Station (l/min) | 15 |
Maximum Output Pressure of the Station Pump (bar) | 7 |

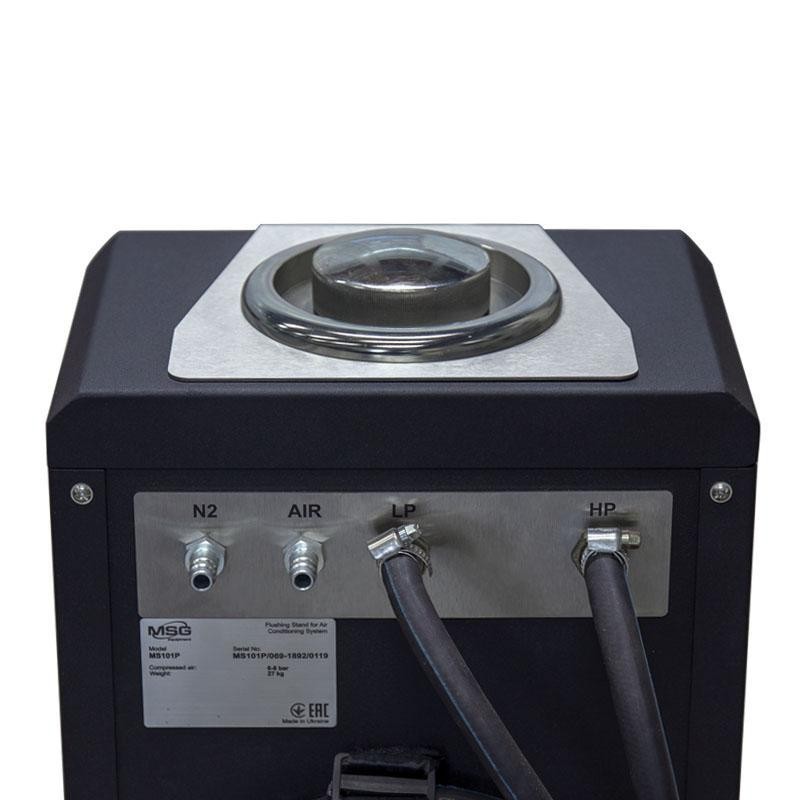

Working Gas for System Drying | Compressed nitrogen (external source) |
Working Pressure at Nitrogen Cylinder Outlet (bar/psi) | 7 – 8 bar (100 – 110 psi) |
Filtering Element | Polypropylene |
Filtering Element Size (mm/inch) | 127 mm (5”) |
Recommended Micron Rating of the Filter (μm) | 10 – 50 |
Hose Length (m) | 2.5 |
Car Connection Fitting | Universal |
Product packing
Pack number | Dimensions | Weight |
---|---|---|
1 | 43 x 55 x 96 cm | 45 kg |
