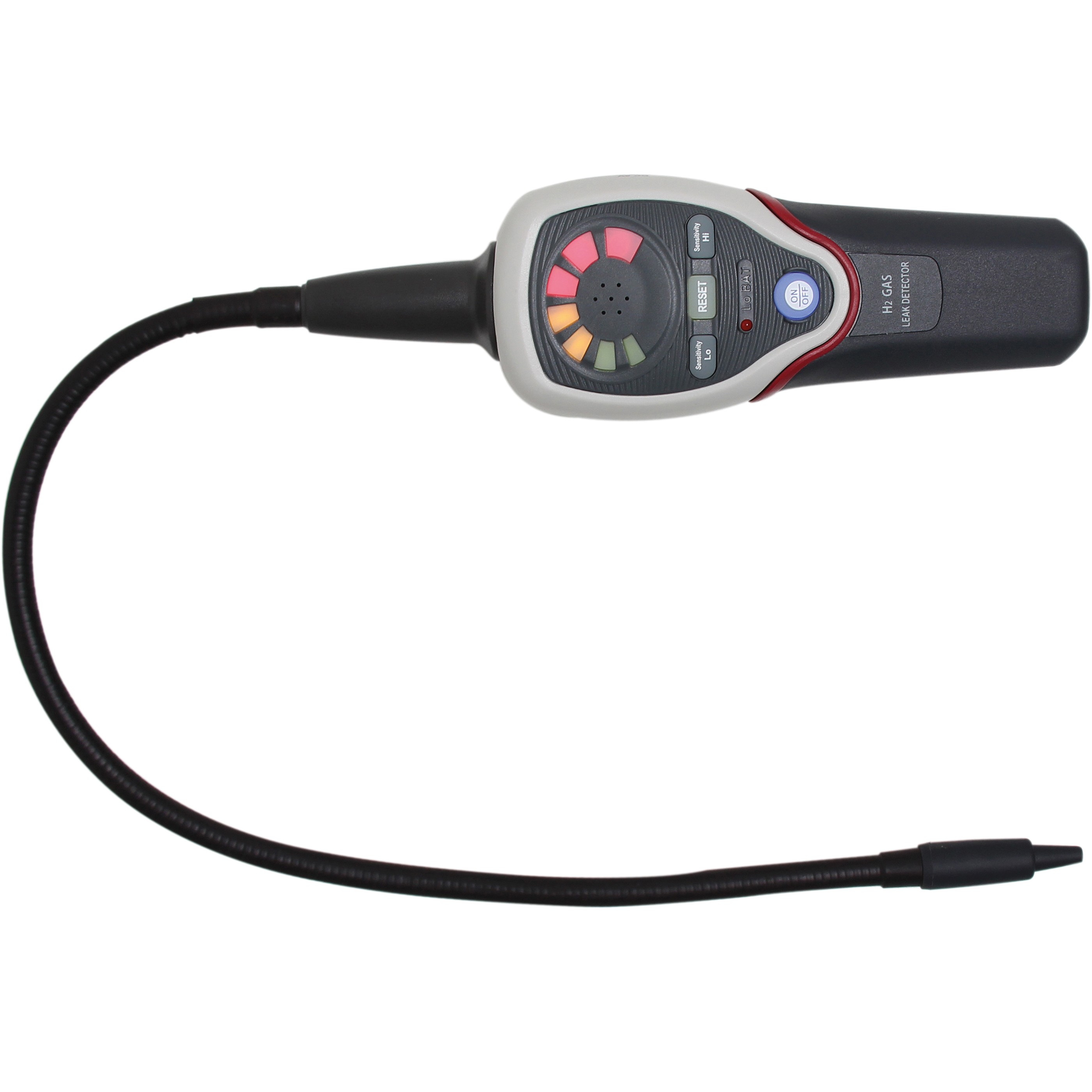

Forming Gas Leak Detector
Product code: BGS-3401
Brand: BGS
Product description
- This Forming Gas Leak Detector is specifically designed for leakage testing in air conditioning systems that are filled with forming gas (5% hydrogen and 95% nitrogen) for testing purposes. Thanks to its advanced digital signal processing and semiconductor sensor, it ensures quick, accurate, and reliable leak detection.
- The detector features a tricolor LED bar and an audible buzzer for clear and immediate alerts. Sensitivity is adjustable, allowing precise detection down to less than 5 ppm of hydrogen gas. The device automatically compensates for background gas concentrations, enhancing its accuracy.
- Its flexible 40 cm stainless steel probe reaches tight spaces easily, making it ideal for HVAC technicians and automotive service. It includes a microprocessor-controlled system, a fast 45-second warm-up time, and a 7-hour battery life under normal use.
- Additional smart features include automatic power-off, low battery indication, and a compact and lightweight design for portability.
Key Features
-
For testing systems filled with 5% H₂ + 95% N₂ (forming gas)
-
Highly sensitive: detects concentrations < 5 ppm
-
Tricolor LED bar and buzzer alarm
-
Adjustable sensitivity
-
Semiconductor gas sensor
-
Microprocessor control with digital signal processing
-
Automatic zeroing and ambient compensation
-
40 cm flexible stainless steel probe
-
Warm-up time: ~45 seconds
-
Battery life: ~7 hours (normal use)
-
Operating temperature: 0–40°C
-
Auto power-off and low battery indicator
Technical Data
| Specification | Value |
|---|---|
| Sensitivity | < 5 ppm |
| Probe length | 40 cm (flexible steel) |
| Dimensions | 173 × 66 × 56 mm |
| Weight | ~400 g |
| Warm-up time | ~45 seconds |
| Operating temperature | 0 – 40°C |
| Battery life | ~7 hours |
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 33.6 x 25.8 x 7.5 cm | 1.26 kg |
Delivery fee
| Delivery method | Gross price |
|---|---|
| Pickup in Nagytarcsa | 0,00 € |
| Pickup in Debrecen | 0,00 € |
| DHL Worldwide Express | 72,56 € |
