Test bench for diagnostics of electric compressors of automotive air conditioners

Test bench for diagnostics of electric compressors of automotive air conditioners

Product code: MS112

Brand: MSG

A specialized test bench for assessing the technical condition of electric air conditioning compressors in hybrid and electric vehicles.
🔵 Available in 15 days
Gross price: 15.646,40 €
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners
Test bench for diagnostics of electric compressors of automotive air conditioners

Product description

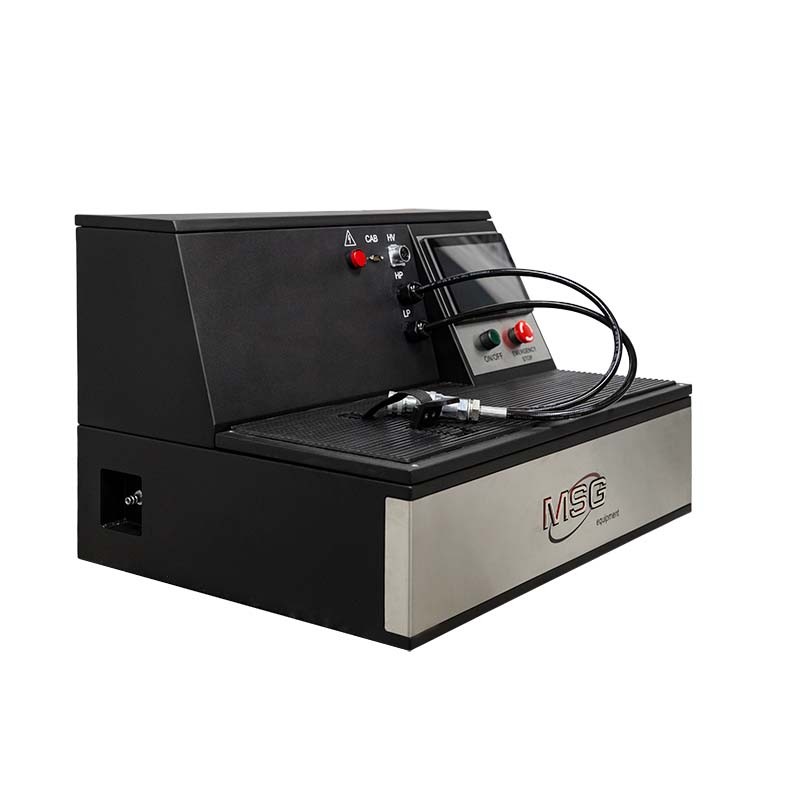

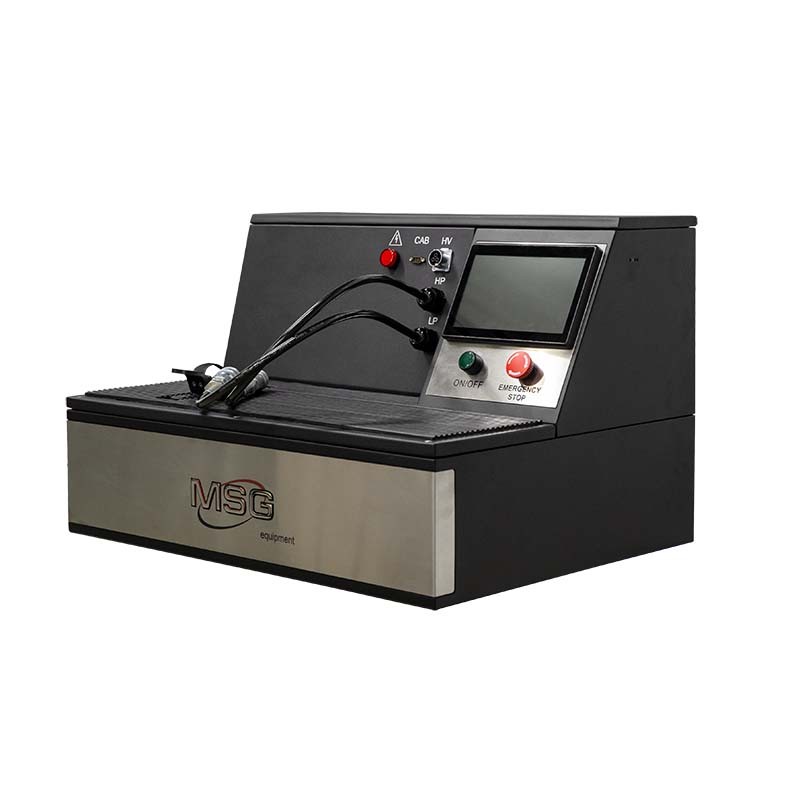

The MS112 test bench is designed for diagnosing electric compressors in vehicle air conditioning systems with a DC power supply voltage of 200–400V. It evaluates compressor performance and inverter functionality using compressed nitrogen as the working medium.

The test bench offers two diagnostic modes:

  • "Express Test" – Quickly identifies non-functional compressors by activating only the compressor motor without nitrogen supply.
  • "Full Test" – Conducts a complete check of electrical components and performance to ensure full functionality.

Advantages

  • Compressor database for reference and efficient diagnostics.
  • Automated testing process for accurate results.

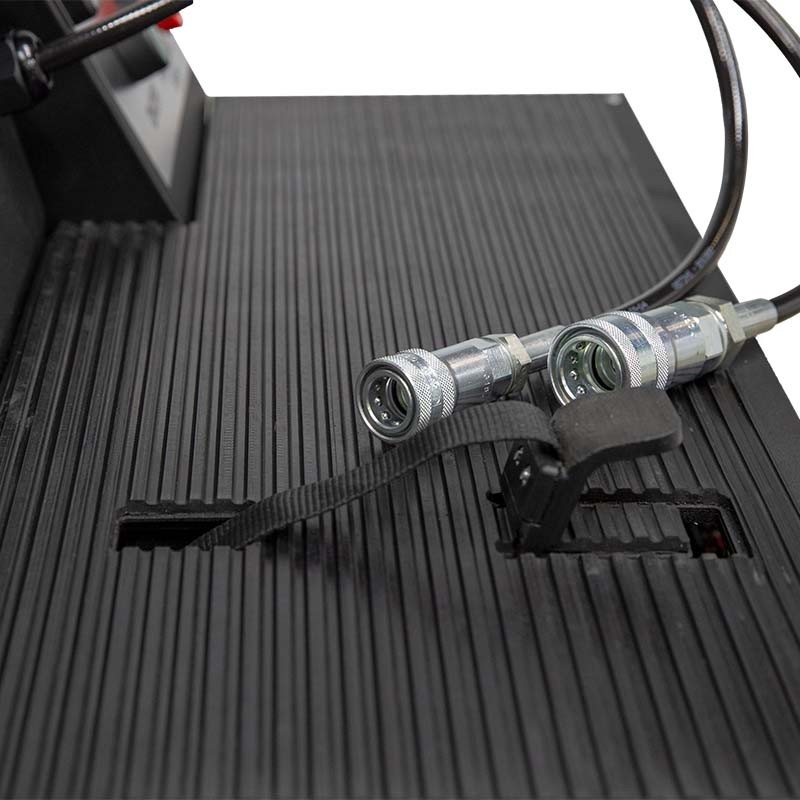

  • Specialized cables and fittings for easy compressor connection.
  • Free software updates for improved performance.

Technical specifications

Parameter Value
Supply Voltage (V) 230
Supply Mains Type Single-phase
Power Demand (kW) 3
Dimensions (L × W × H) (mm) 740 × 600 × 550
Weight (kg) 40
Compressor check
Tested Units 2-pin high voltage connection, built-in inverters
Tested Unit Supply Voltage (VDC) 200 – 400
Working Substance Compressed nitrogen (external source required)
Working Pressure at Nitrogen Cylinder Output (Bar / psi) 7 – 8 Bar (100 – 110 psi)
Nitrogen Consumption 100 normal liters per test
Required Nitrogen Flow (l/min) 400
Nitrogen Recovery No (waste gas discharged into atmosphere)
Nitrogen Connection SAE 1/4”
Additional features
Software Update Available
USB Flash Drive Connection USB Type-C

Product packing

Pack number Dimensions Weight
1 84 x 73 x 67 cm 50 kg
