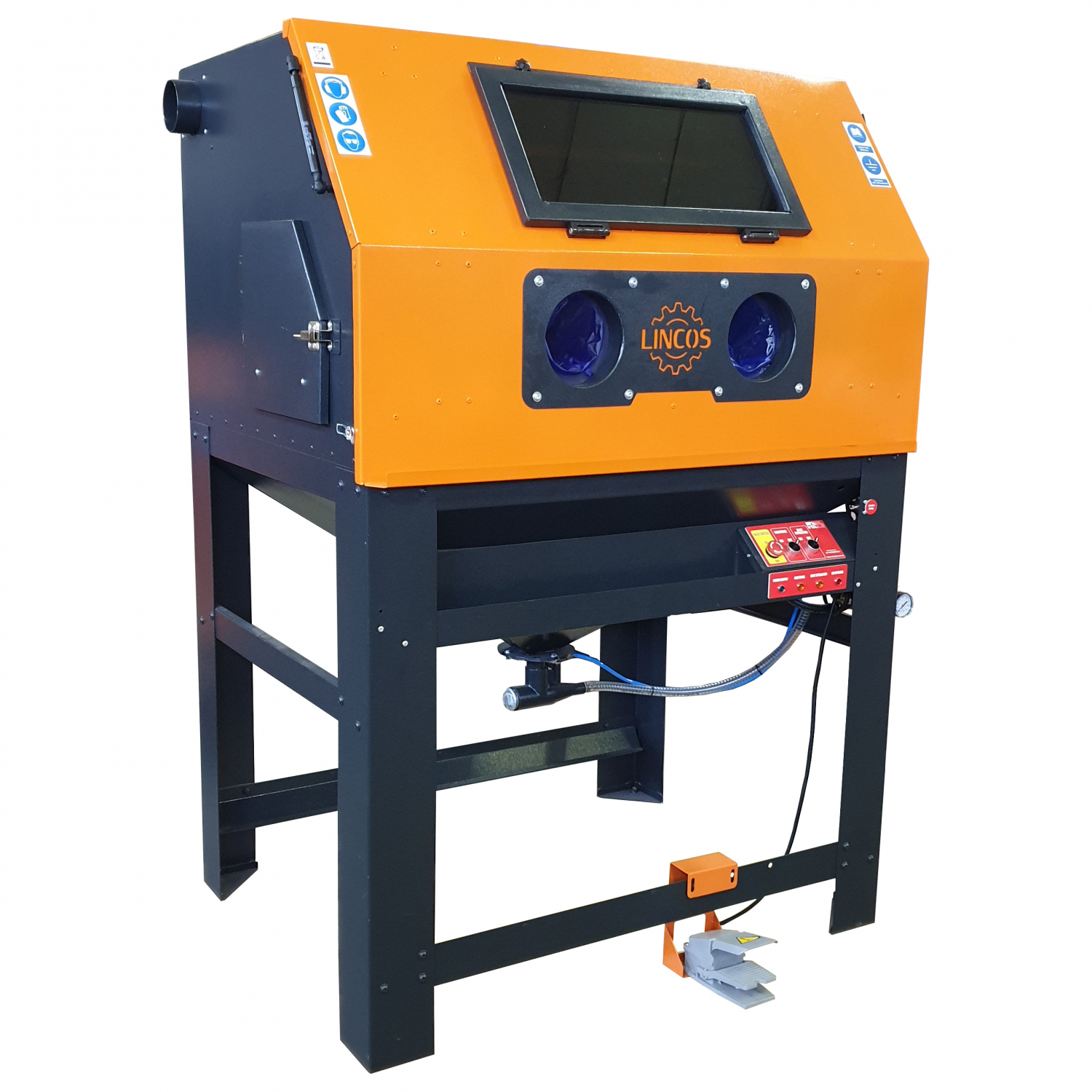

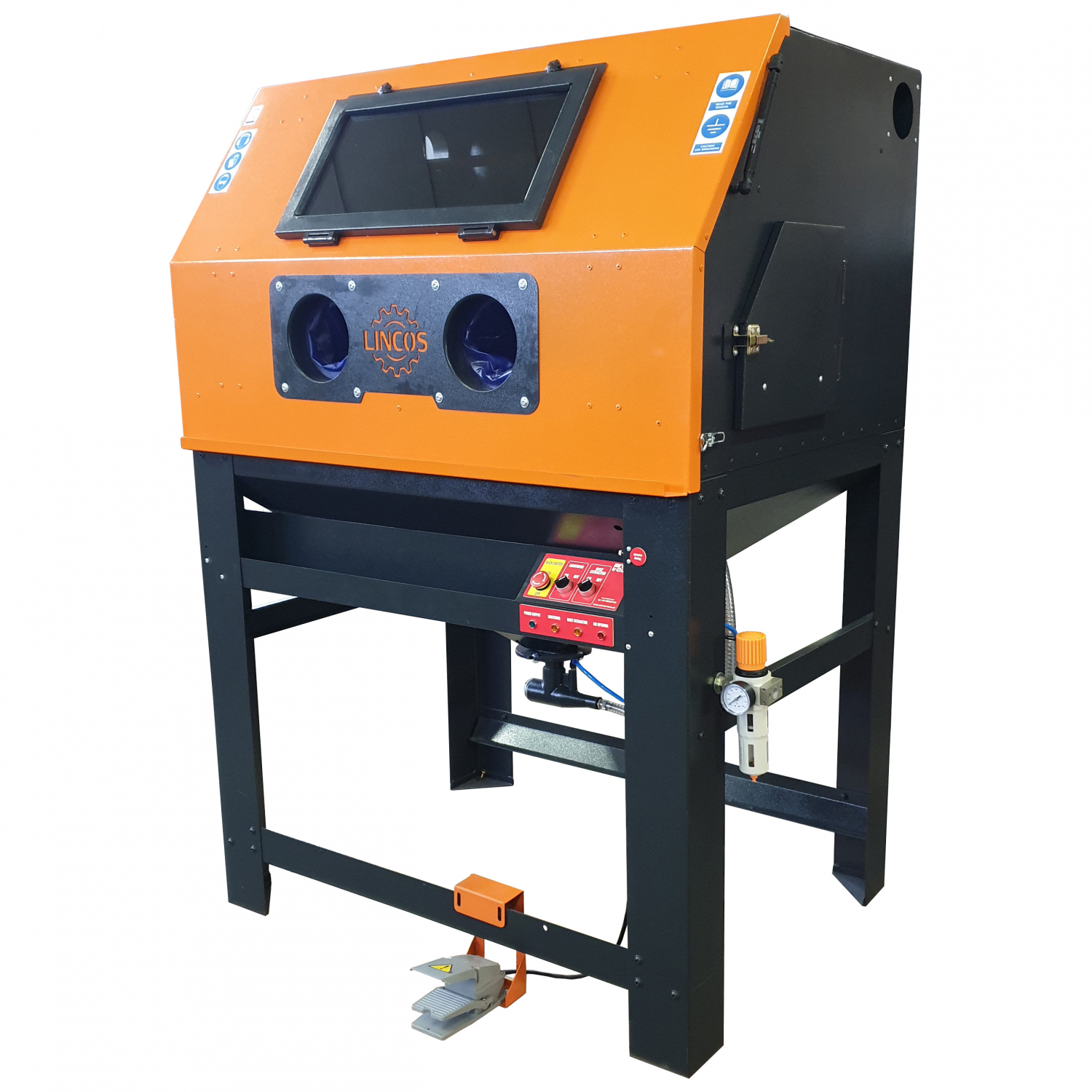

Sandblaster cabinet 700l, with cyclone tank
Product code: SBC700E
Brand: Lincos
Blasting cabinet size 1200x900x700mm, lighting, cyclone tank, large front door, side doors, pedal-controlled blasting gun, max. 8.5bar, air consumption 400-700l/min
🟡 Expected in stock on:
03/04/2025
Gross price:
2.310,13 €
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Sandblasting cabinet 700l, with dust extractor
Product description
Description
- Pedal-controlled blasting gun
- Flexible hose, built into the blasting cabinet
- Large sized window
- Large front door

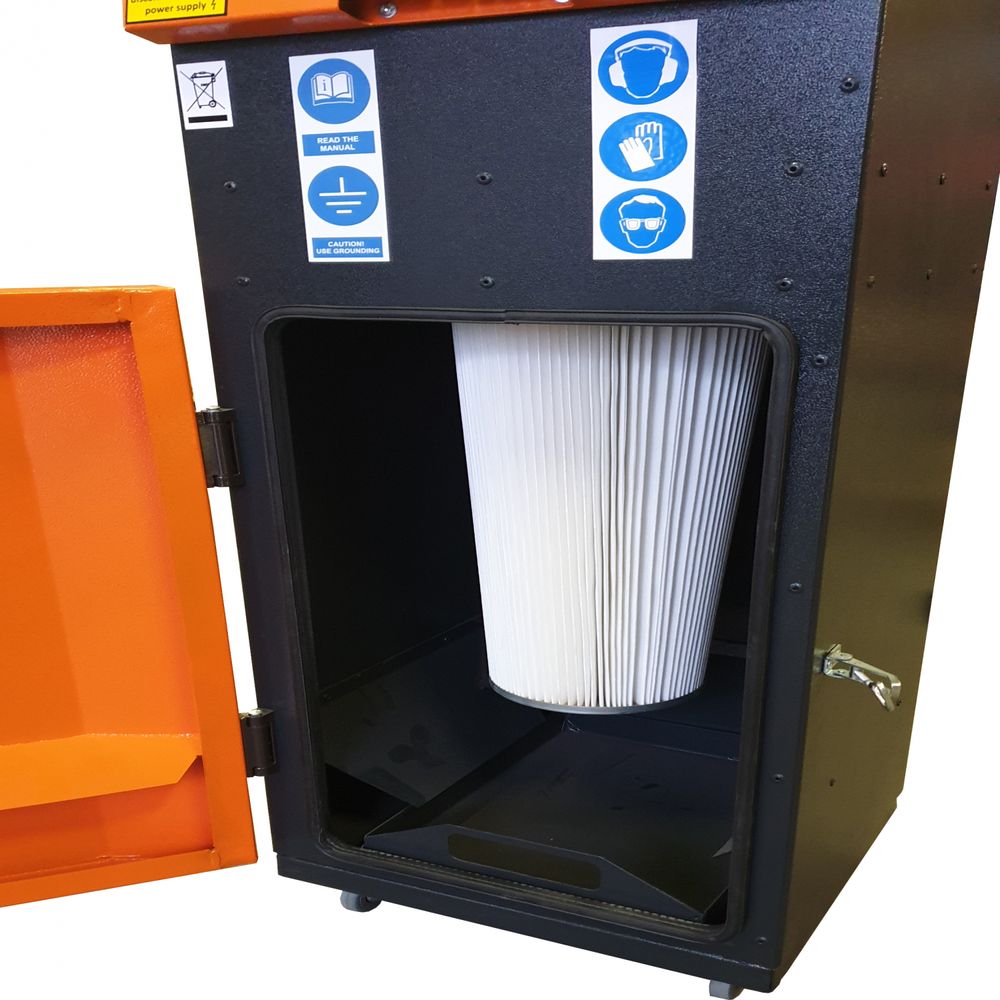

- The cyclone assures the continuous extraction of the dust and the sand
- Inner lighting
- Doors on both sides (230x240mm)
- Surface treatment powder coating
Technical details
| Blasting cabinet size | 1200x900x700mm |
| Total size | 1300x960x1800mm |
| Cyclone size | 420x410x1110mm |
| Cabinet volume | 700l |
| Cabinet volume with sand tank | 900l |
| Side door size | 230x240mm |
| Front door size | 1200x900mm |
| Max. pressure | 8,5bar |
| Operating pressure | 3,4-5,5bar |
| Air consumption | 400-700l/min |
| Gloves length | 600mm |
| Gloves diameter | 160mm |
| Tank capacity | 18kg |
| Power supply | 230V, 50Hz |
| Cyclone power consumption | 1200W |
| Lighting | 50W (23V) LED, IP67, 5000lm, -40°C - +55°C |
| Noise level | 80dB |
Accessories
- 5 ceramic nozzles (3pcs 6mm, 2pcs 7mm)
- 1 sand blasting gun (industrial)
- 2 window underlays

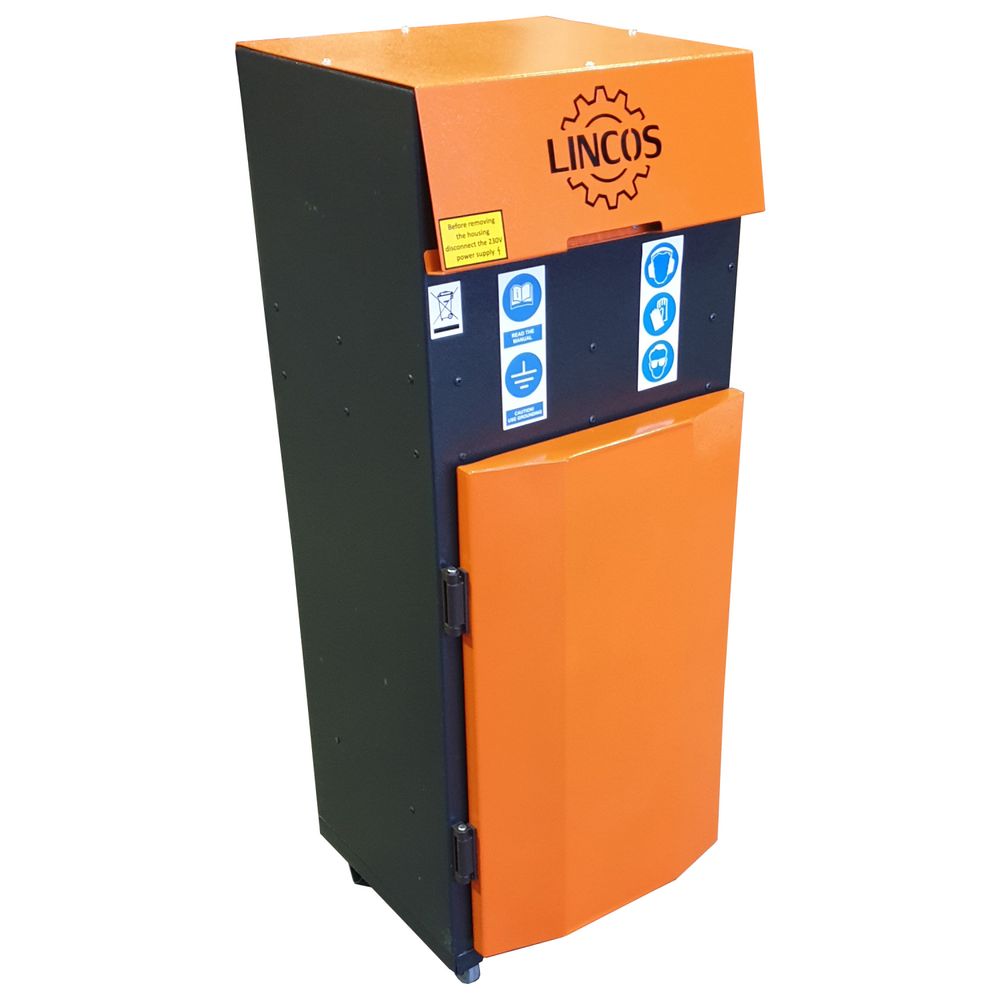

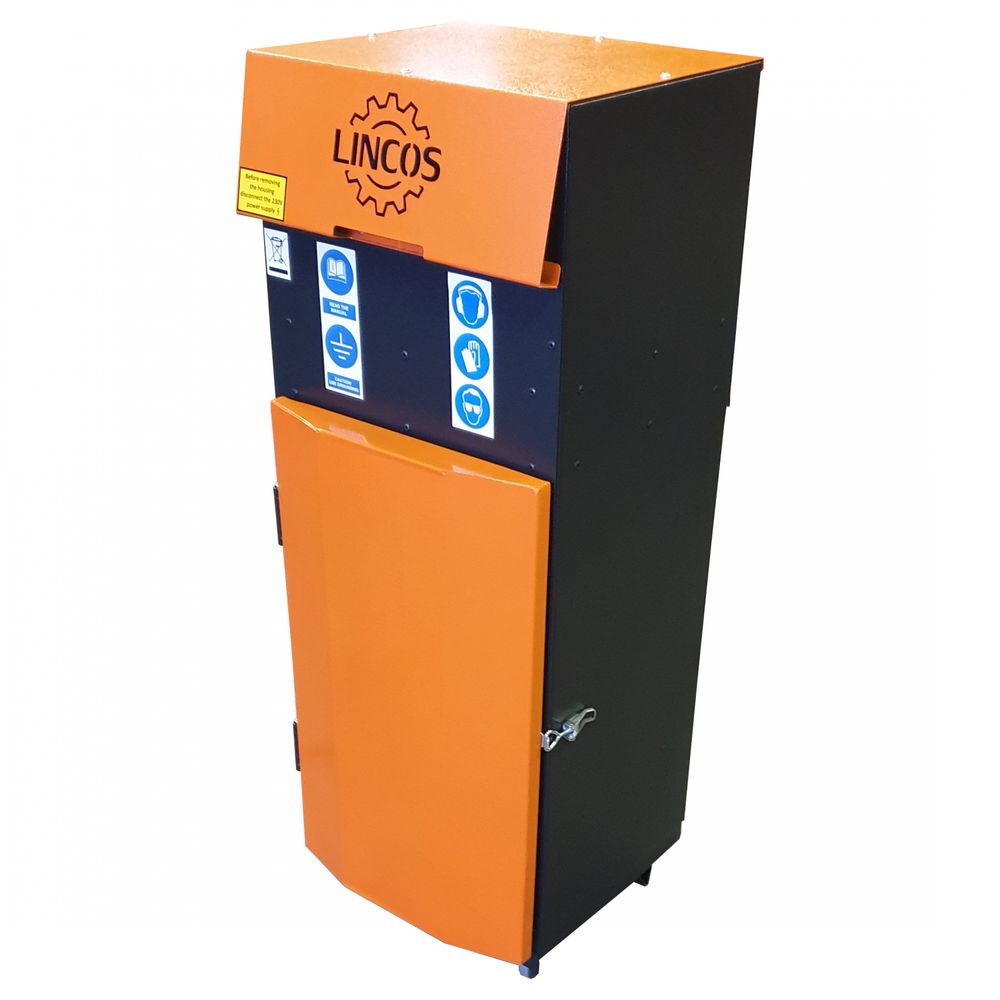

- Cyclone tank

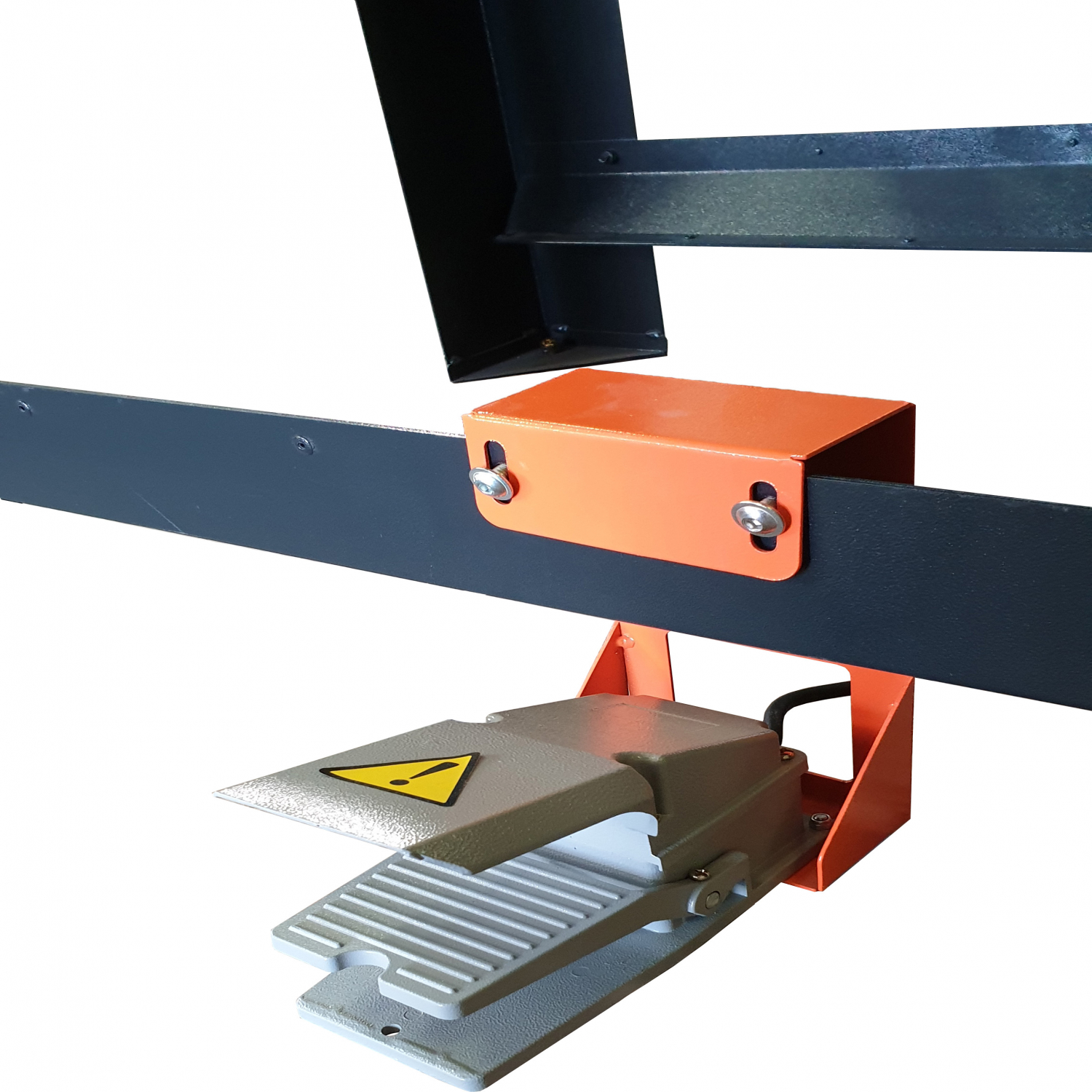

- Control pedal

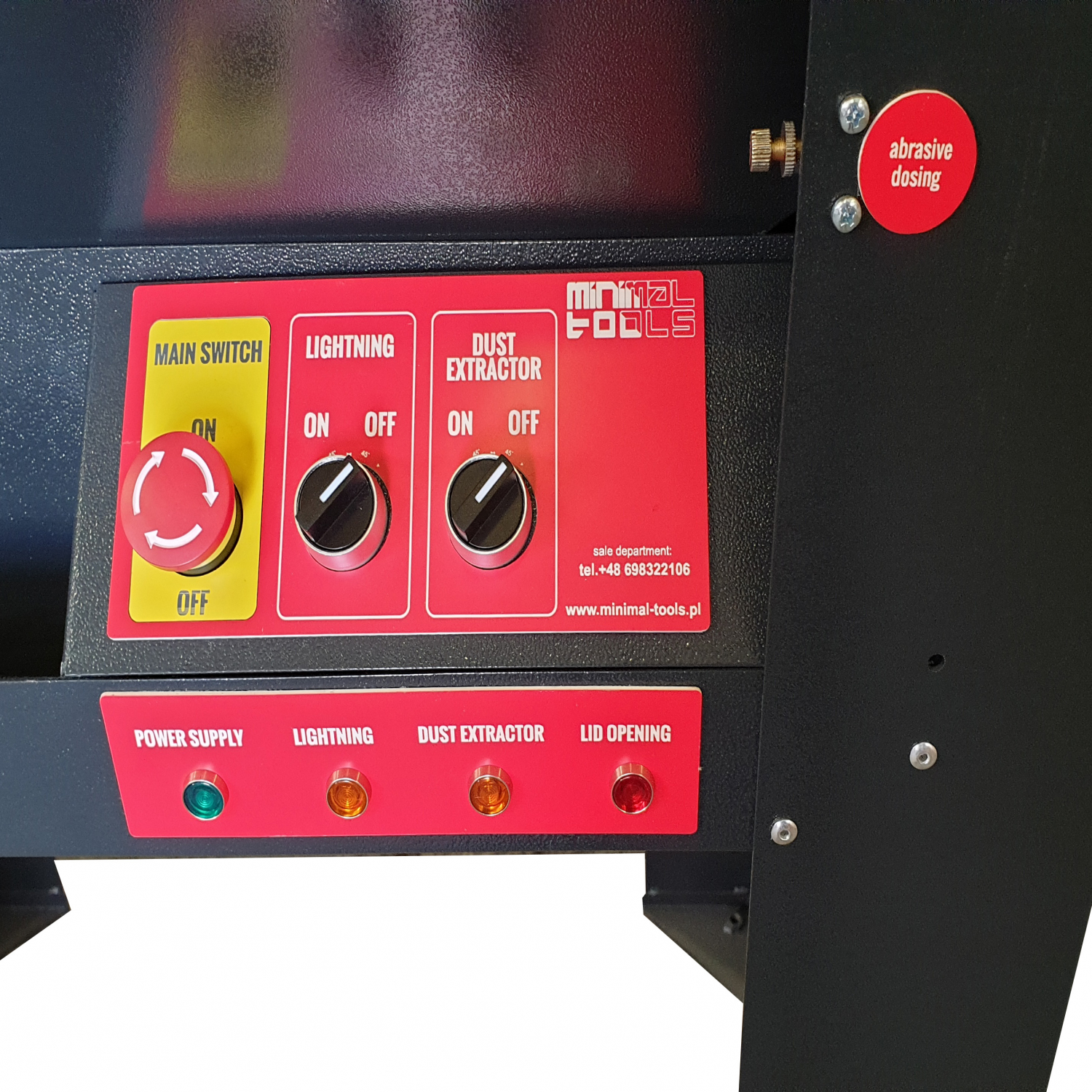

- Electrical control panel: emergency stop, lamp, cyclone switch
- 1 water-separator/regulator

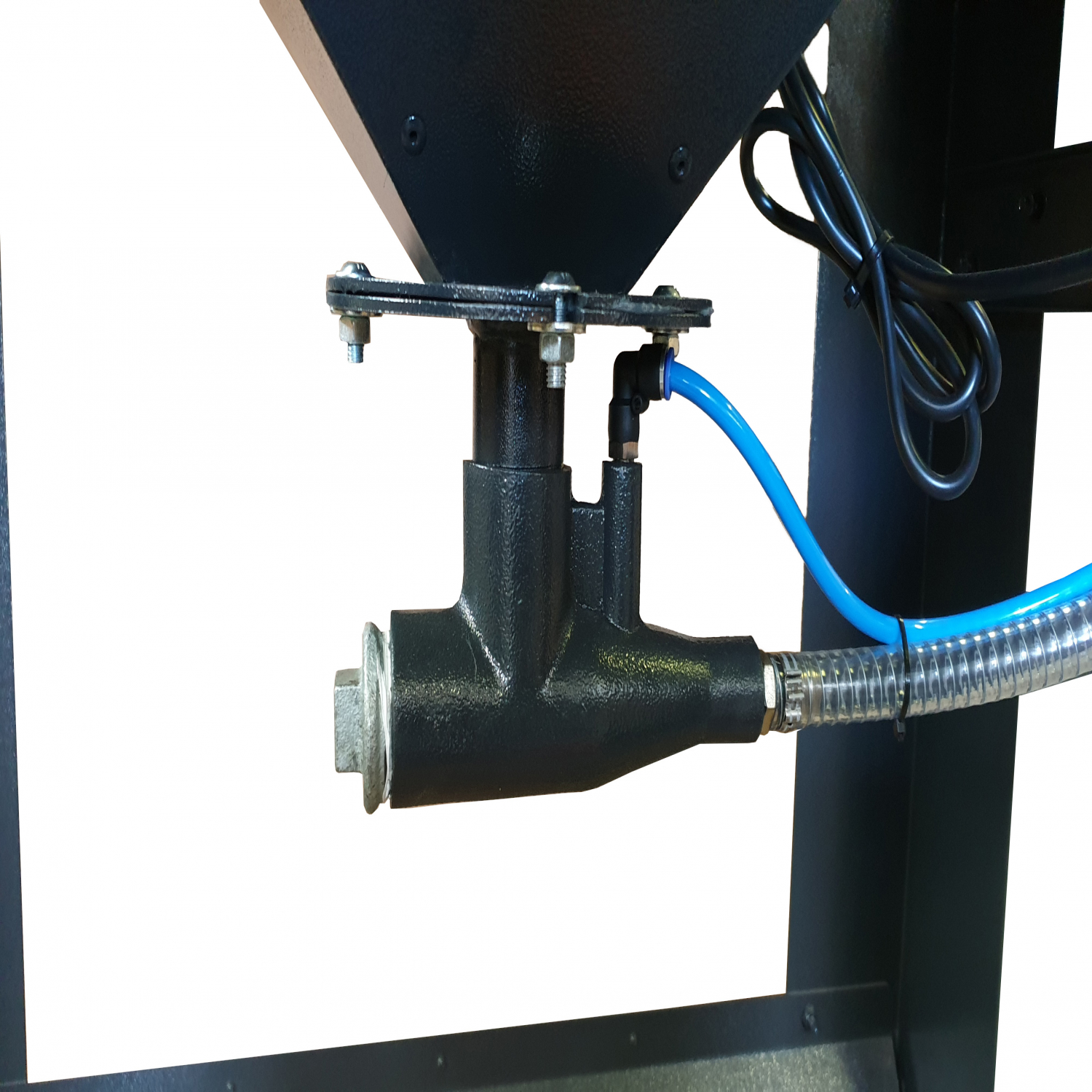

- Sand mixing valve
- Door solenoid valve
- Support bar for hanging small items
Abrasive media used
- The quality of the media used for polishing influences the effectivity of blasting.
- Ordinary sand may contain contaminants, which may cause the machine to malfunction.
- Moisture and organic matter contained in the abrasive media may clog up the nozzles and the valves.
- If the abrasive media is used repeatedly, the reduction of the particle surface must be considered, which reduces the effectivity of the blasting process.
- Quartz sand, glass beads, polishing dust, synthetic sand
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 125 x 98 x 195 cm | 161 kg |
