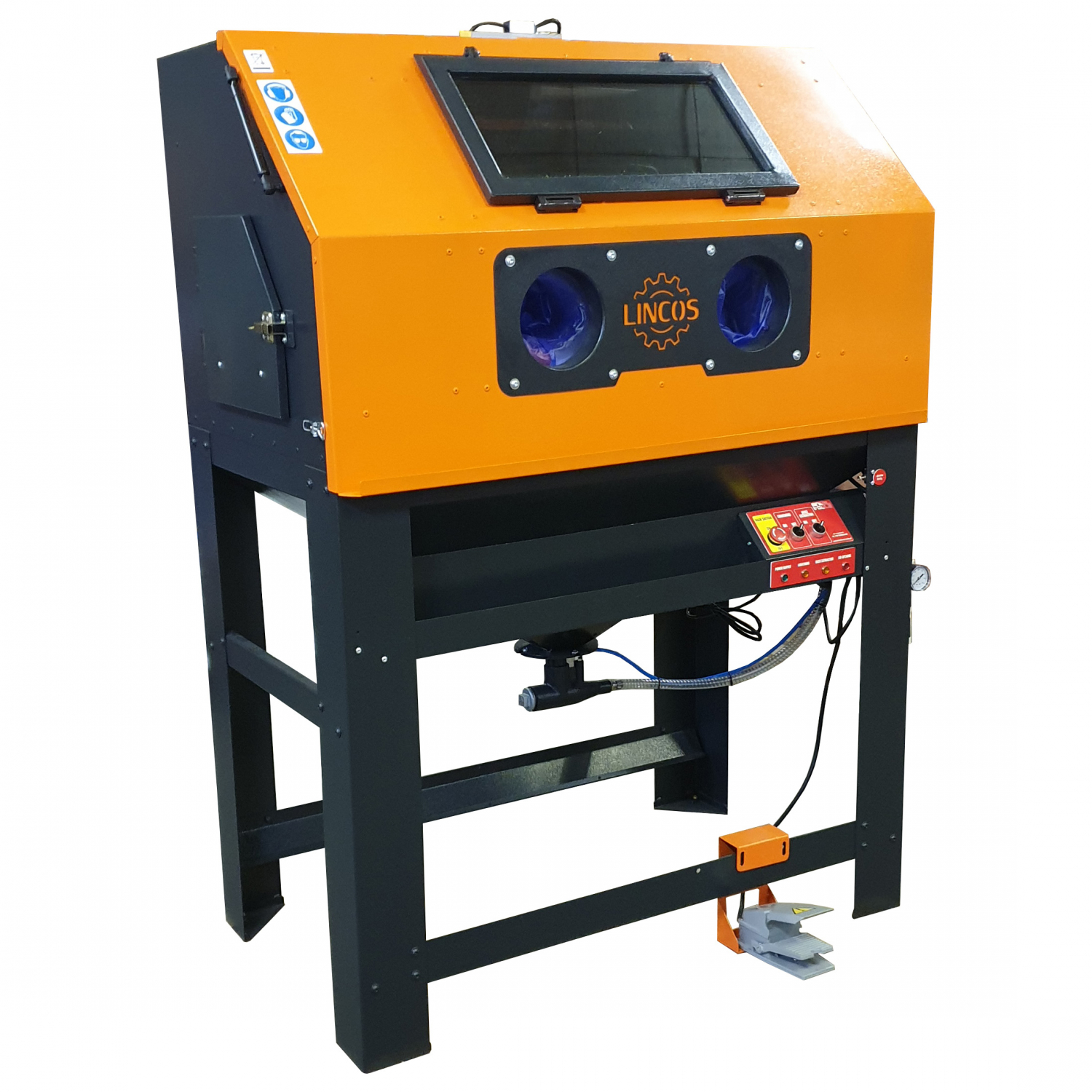

Sandblasting cabinet 520l, with dust extractor

Sandblasting cabinet 520l, with dust extractor

Product code: SBC520E

Blasting cabinet size 1200x700x650mm, lighting, cyclone tank, large front door, side doors, pedal-controlled blasting gun, max. 8.5bar, air consumption 400-700l/min
🟢 In stock
Locations:
  • Debrecen: 0
  • Budapest: 1
Gross price: 1.939,30 €
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor
Sandblasting cabinet 520l, with dust extractor

Product description

Description

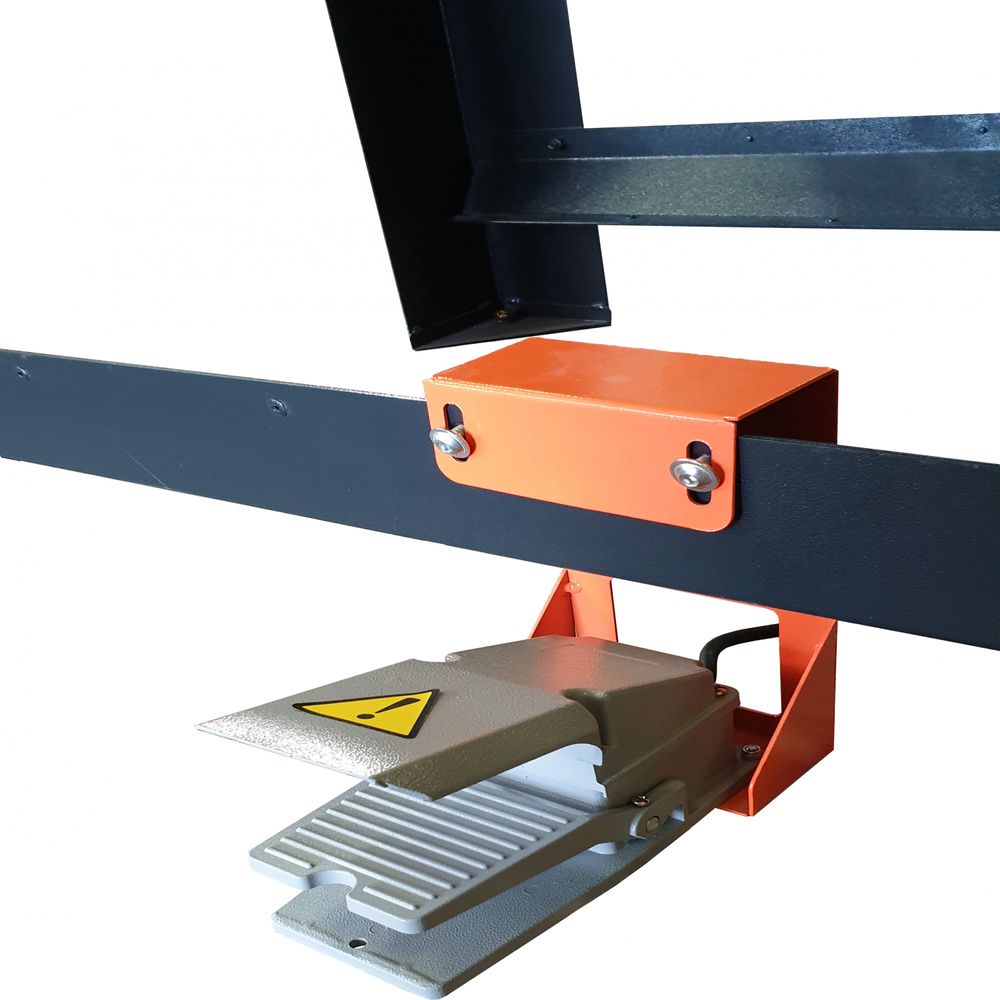

  • Pedal-controlled blasting gun
  • Flexible hose, built into the blasting cabinet
  • Large sized window
  • Large front door

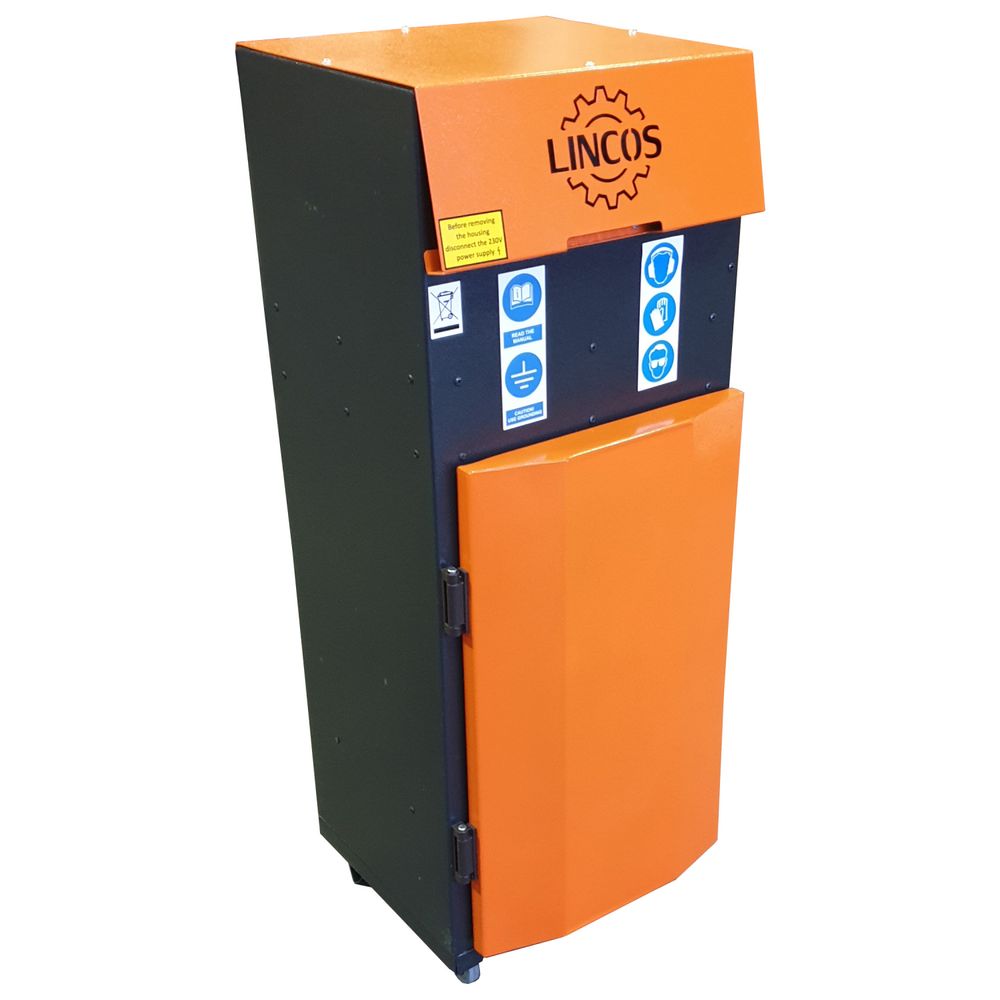

  • The cyclone assures the continuous extraction of the dust and the sand
  • Inner lighting
  • Doors on both sides (230x240mm)
  • Surface treatment powder coating



Technical details

Blasting cabinet size 1200x700x650mm
Total size 1260x770x1740mm
Cyclone size 420x410x1110mm
Cabinet volume 520l
Cabinet volume with sand tank 700l
Side door size 230x240mm
Front door size 1260x700mm
Max. pressure 8,5bar
Operating pressure 3,4-5,5bar
Air consumption 400-700l/min
Gloves length 600mm
Gloves diameter 160mm
Tank capacity 18kg
Power supply 230V, 50Hz
Cyclone power consumption 1200W
Lighting 50W (23V) LED, IP67, 5000lm, -40°C - +55°C
Noise level 80dB



Accessories

  • 5 ceramic nozzles (3pcs 6mm, 2pcs 7mm)
  • 1 sand blasting gun (industrial)
  • 2 window underlays
  • Cyclone tank
  • Control pedal

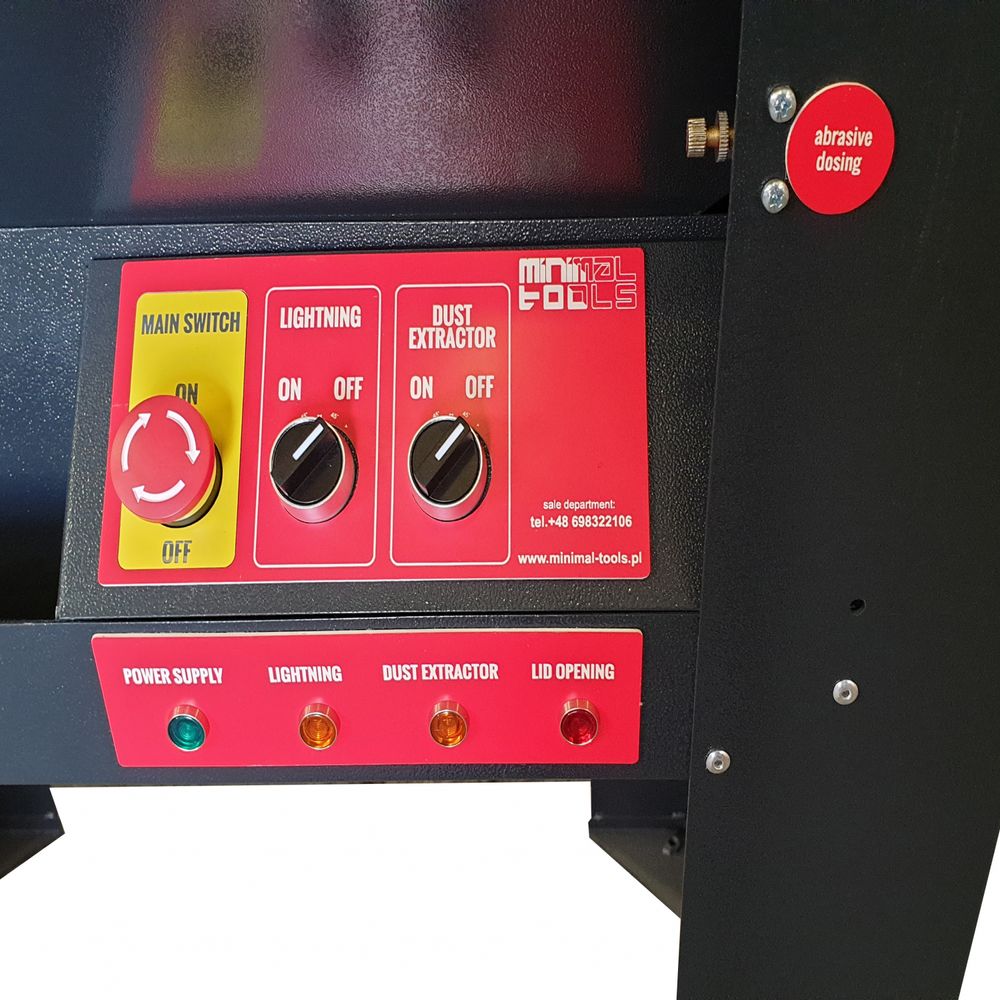

  • Electrical control panel: emergency stop, lamp, cyclone switch
  • 1 water-separator/regulator

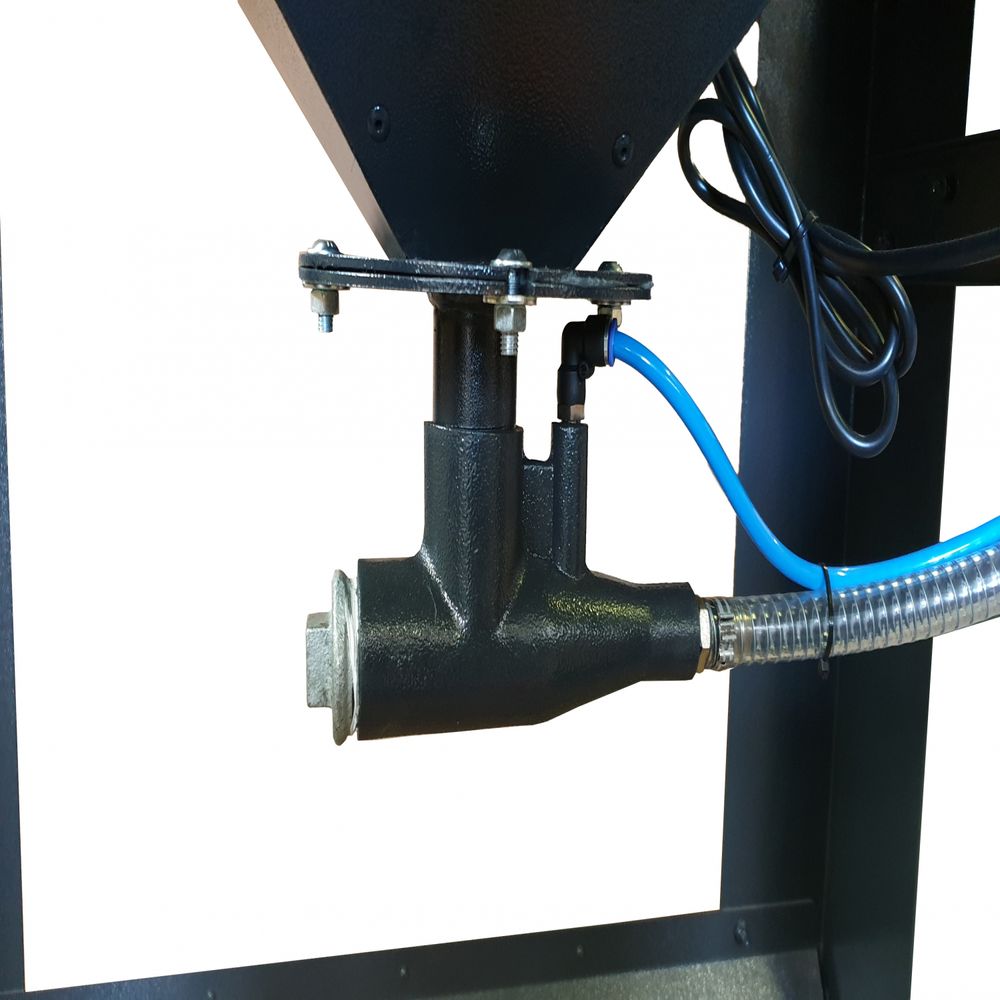

  • Sand mixing valve
  • Door solenoid valve
  • Support bar for hanging small items



Abrasive media used

  • The quality of the media used for polishing influences the effectivity of blasting.
  • Ordinary sand may contain contaminants, which may cause the machine to malfunction.
  • Moisture and organic matter contained in the abrasive media may clog up the nozzles and the valves.
  • If the abrasive media is used repeatedly, the reduction of the particle surface must be considered, which reduces the effectivity of the blasting process.
  • Quartz sand, glass beads, polishing dust, synthetic sand

Product packing

Pack number Dimensions Weight
1 127 x 80 x 194 cm 152 kg
