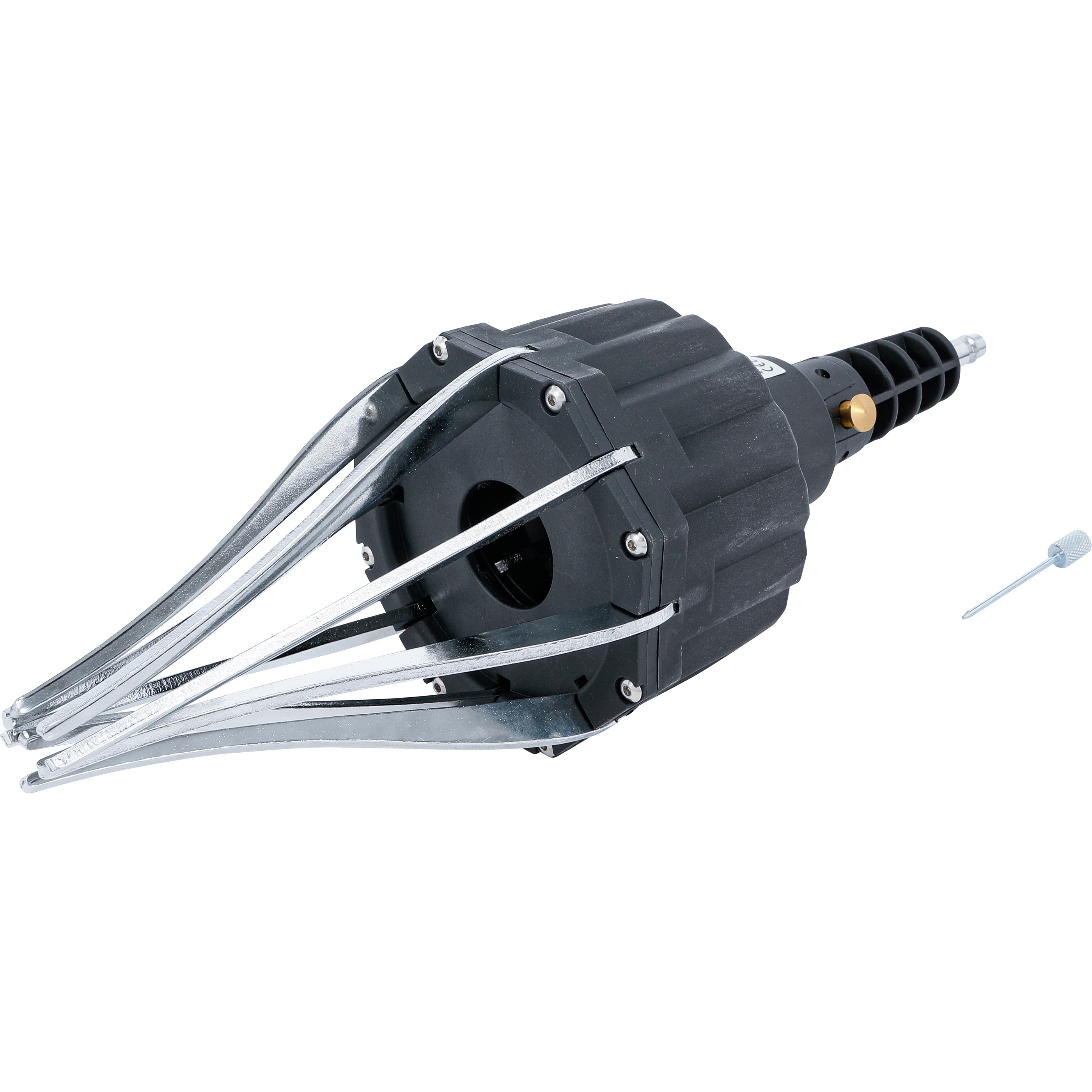

CV Boot Air Assembly Tool, 20 - 110 mm

CV Boot Air Assembly Tool, 20 - 110 mm

Product code: BGS-9825

Brand: BGS

Air-powered CV boot installer with 8 reinforced arms, adjustable from 20 to 110mm, compatible with universal and OEM axle boots. Max. pressure: 8bar.
🔵 Available in 10 days
Gross price: 90,72 €
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm
CV Boot Air Assembly Tool, 20 - 110 mm

Product description

The CV boot air assembly tool, 20–110mm is designed for the efficient installation of both universal and original equipment axle boots. This pneumatic tool simplifies the mounting process by expanding the CV boot uniformly using 8 sturdy spreader arms, powered by compressed air.

Key Features

  • Adjustable span: 20–110mm – suitable for a wide range of CV boots

  • Operating pressure: 5–8bar

  • Maximum pressure: 8bar (116 PSI)

  • Material: Polyamide 6 with 30% glass fiber (PA6 GF30) – ensures strength and durability

  • Weight: 2.2kg

  • Gross weight: 2424g

  • Air connection: 1/4"

The arms are spread using compressed air, allowing for fast and damage-free installation without manually stretching the boot. This ensures a secure fit and prevents wear during fitting.

Specifications Table

Specification Value
Span Range 20–110mm
Max. Pressure 8bar / 116 PSI
Operating Pressure 5–8bar
Material PA6 GF30
Weight 2.2kg
Gross Weight 2424g
Air Inlet 1/4"
Spreader Arms 8

Product packing

Pack number Dimensions Weight
1 46.5 x 14.4 x 14.3 cm 2.42 kg
