External/internal 2-arm puller, 15–120mm
Product code: BGS-7713
Brand: BGS
Product description

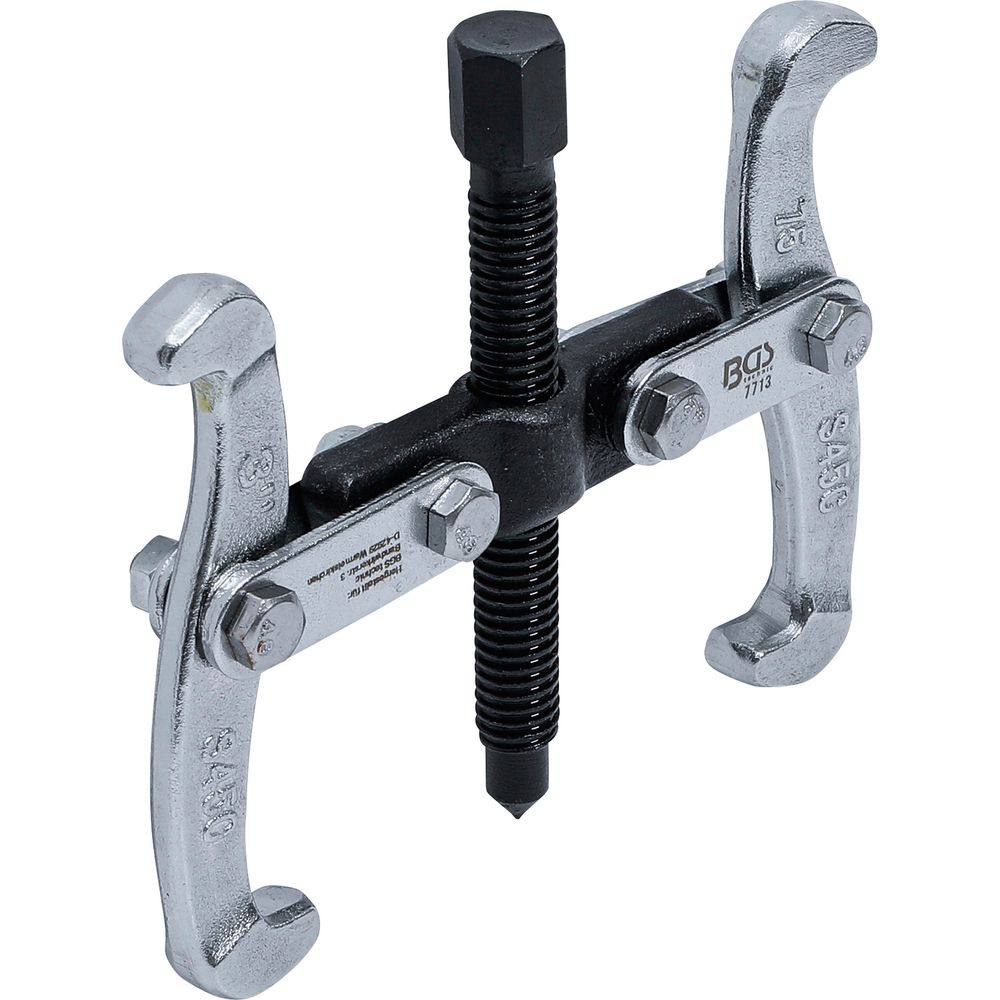

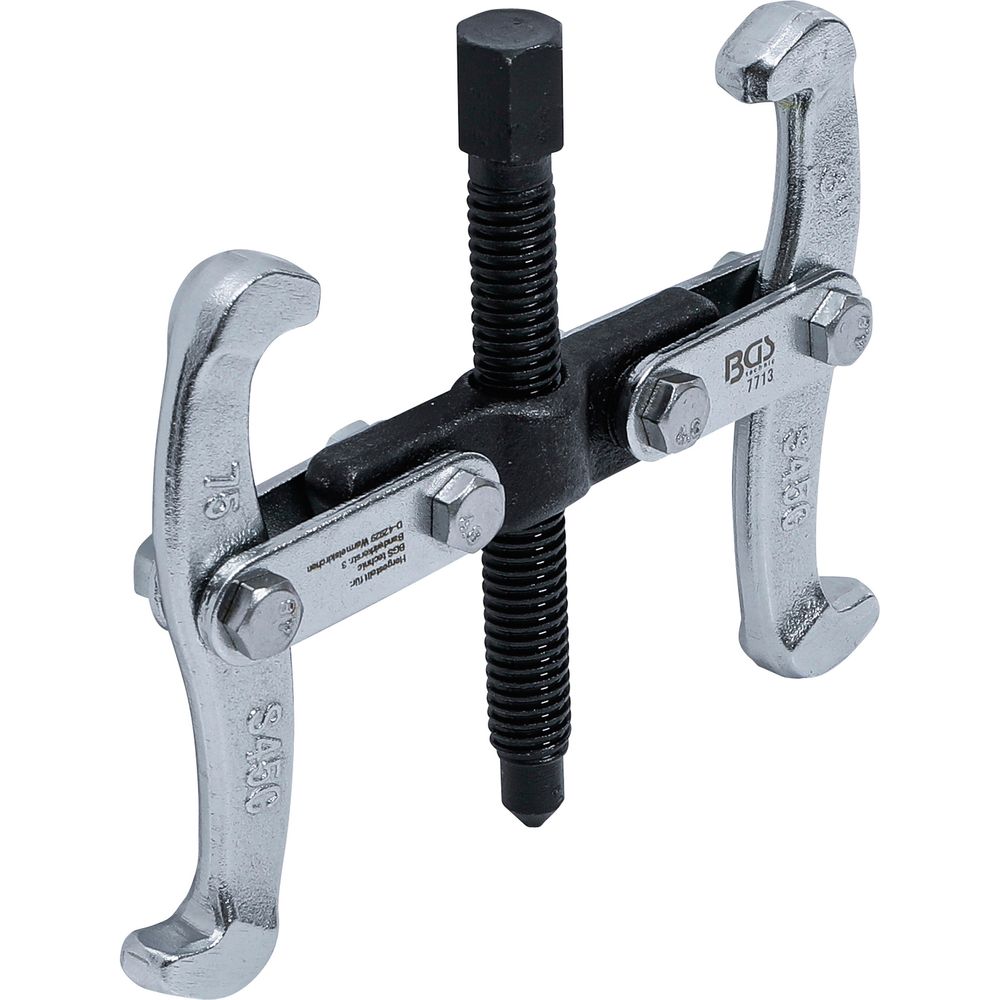

The external/internal 2-arm puller 15–120mm is a versatile tool for removing bearings, gears, pulleys, and press-fitted components. The reversible 2-arm design allows it to be used both as an internal and external puller, making it highly adaptable for various repair and maintenance tasks.
Made of forged steel for strength and durability, the puller features a galvanized, electroplated surface for corrosion resistance. Its 14mm hex drive ensures easy operation with standard tools, while the wide clamping range (15–120mm) and 75mm clamping depth provide flexibility for different component sizes.
Technical data
| Specification | Value |
|---|---|
| Clamping width | 15–120mm |
| Clamping depth | 75mm |
| Hook length | 19mm |
| Hook foot thickness (top) | 7mm |
| Hook foot height | 6mm |
| Spindle length | 100mm |
| Drive size | Hex 14mm |
| Surface finish | Galvanized, electroplated |
| Material | Forged steel |
| Design | Reversible |
Key features
- Reversible design for internal and external pulling
- 2-arm construction for stable grip
- Forged steel body for high durability
- Galvanized surface for corrosion protection
- 14mm hex drive for easy operation
- Wide clamping range: 15–120mm
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 13.5 x 11.6 x 3.2 cm | 0.46 kg |
