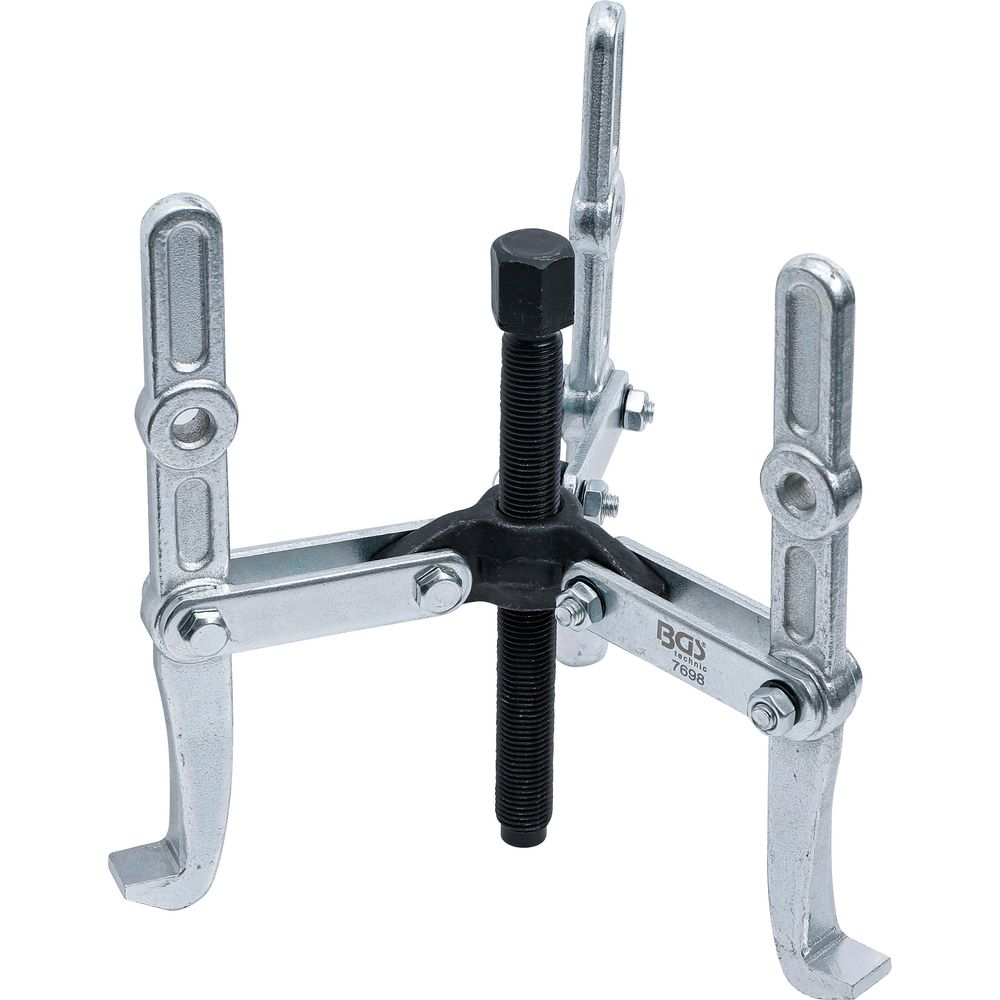

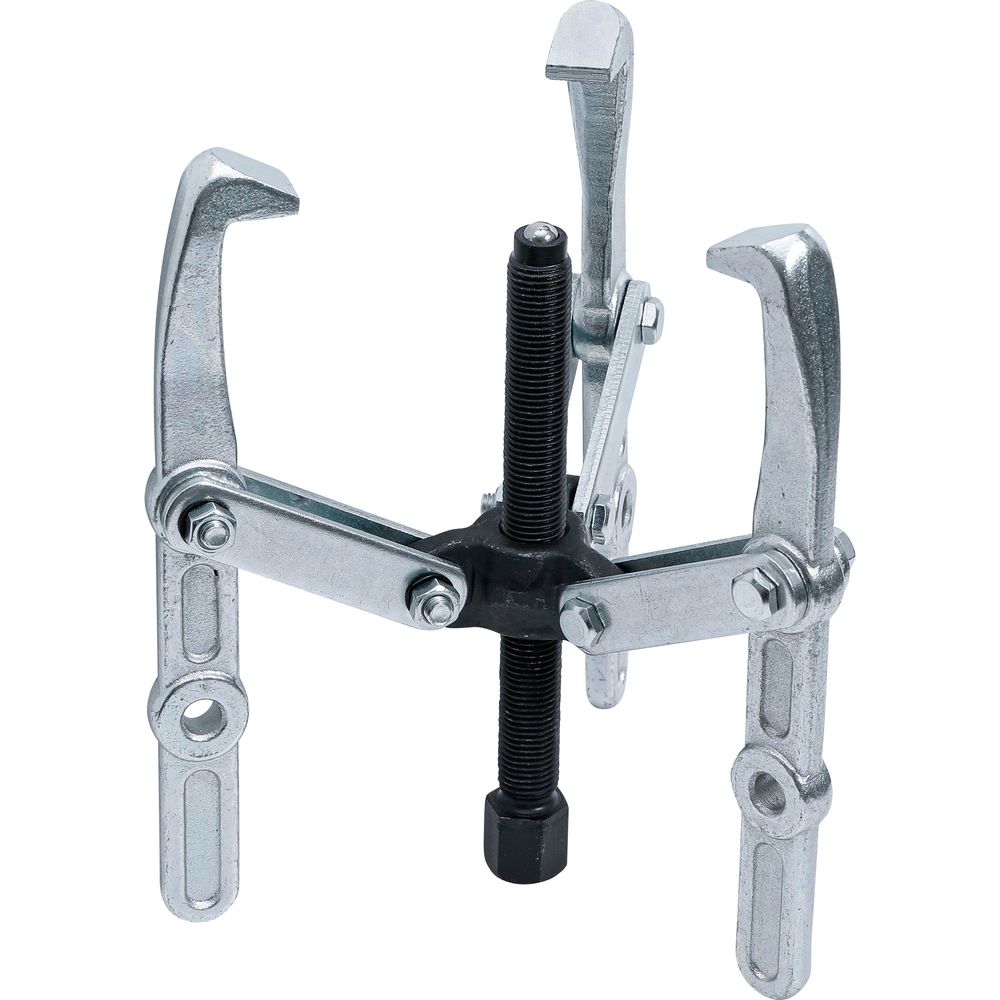

External/internal 3-arm puller, 30–150mm
Product code: BGS-7698
Brand: BGS
Product description
The external/internal 3-arm puller 30–150mm is a versatile tool designed for both internal and external pulling applications, making it suitable for bearings, gears, pulleys, rotors, and other press-fitted components. The 3-arm design ensures even force distribution and a firm grip during extraction.
Constructed from forged steel, the puller offers outstanding durability under heavy loads. The ball tip spindle allows smooth, precise operation while protecting the workpiece. With a wide clamping width range of 30–150mm and a clamping depth of 155mm, it covers a broad spectrum of applications. The tool is operated via a 17mm hex drive, suitable for use with standard hand tools or socket wrenches.
Technical data
| Specification | Value |
|---|---|
| Clamping width | 30–150mm |
| Clamping depth | 155mm |
| Hook length | 22mm |
| Hook foot thickness (top) | 6.5mm |
| Hook foot height | 11mm |
| Spindle length | 135mm |
| Drive size | Hex 17mm |
| Material | Forged steel |
| Design | Forged with ball tip |
Key features
- Internal and external pulling capability
- 3-arm design for stable and even force application
- Forged steel construction for durability
- Ball tip spindle for smooth operation
- Wide clamping range: 30–150mm
- Hex drive 17mm for easy operation
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 19.7 x 6.9 x 5.7 cm | 1.1 kg |
