Parallel puller, 2-arm, 35–80mm
Product code: BGS-74523
Brand: BGS
Product description

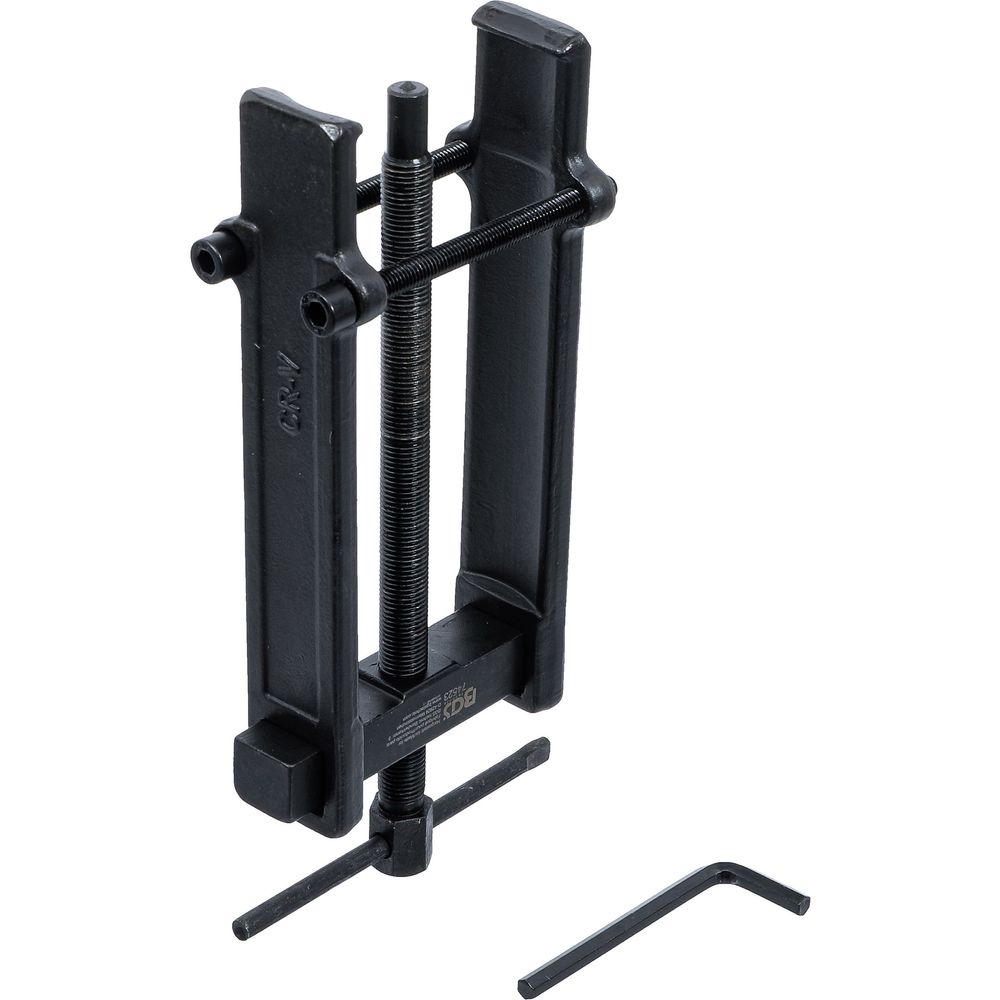

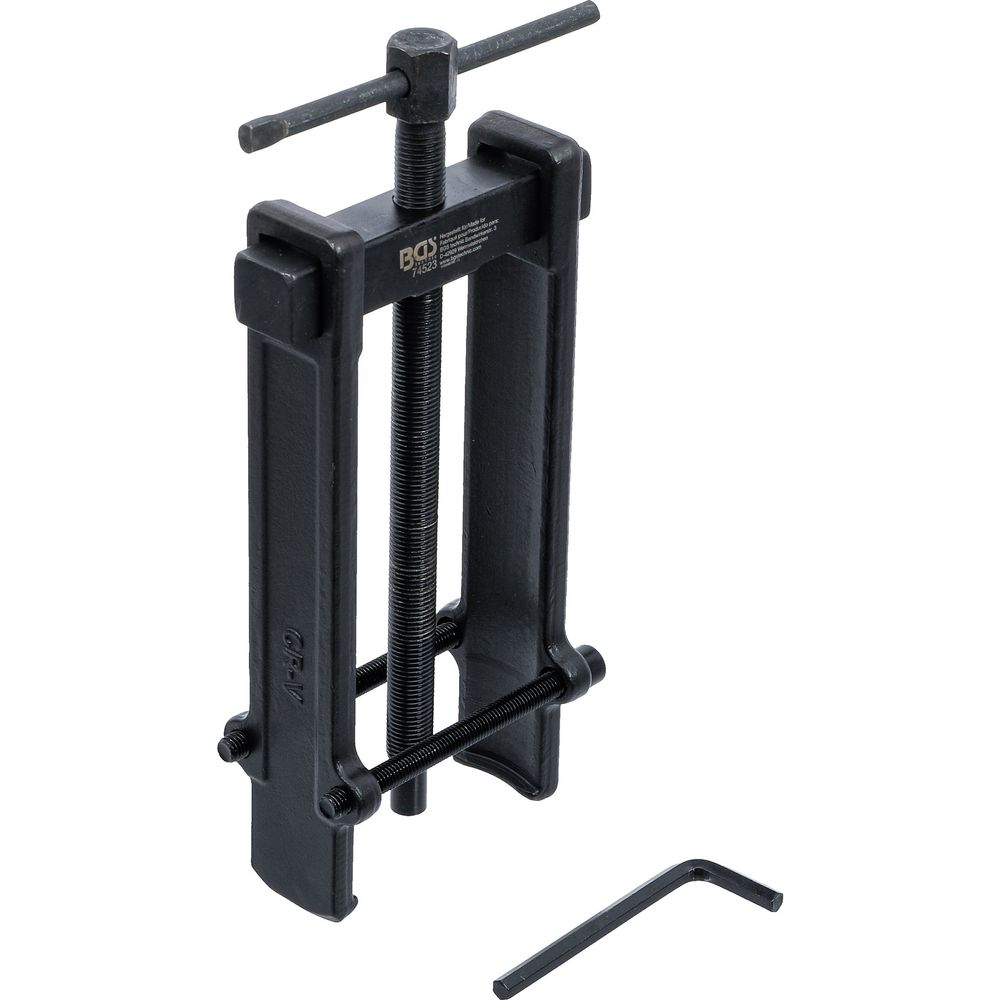

The parallel puller 2-arm 35–80mm is designed for safe removal of bearings, gear wheels, rotors, and other press-fitted parts during maintenance and repair. Its parallel 2-arm design with laterally positioned tension screws ensures firm, non-slip grip on components, even under high pulling forces.
Perfectly suited for motorcycle, bicycle, and automotive repair work, this puller is made from drop-forged chrome vanadium steel, offering maximum durability and strength. The puller is equipped with a 17mm hex drive, making it easy to operate with standard hand tools or socket wrenches.
Technical data
| Specification | Value |
|---|---|
| Clamping width | 35–80mm |
| Clamping depth | 40mm |
| Hook length | 210mm |
| Hook foot thickness (top) | 4.5mm |
| Hook foot height | 5mm |
| Spindle length | 240mm |
| Drive size | Hex 17mm |
| Material | Chrome vanadium steel |
| Design | Drop-forged |
Key features
- Ideal for removing bearings, gears, rotors
- Perfect for motorcycles, bicycles, vehicles
- 2-arm parallel design with lateral tension screws
- 17mm hex drive for easy operation
- Drop-forged chrome vanadium steel for high durability
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 24.9 x 13.8 x 6.4 cm | 1.76 kg |
