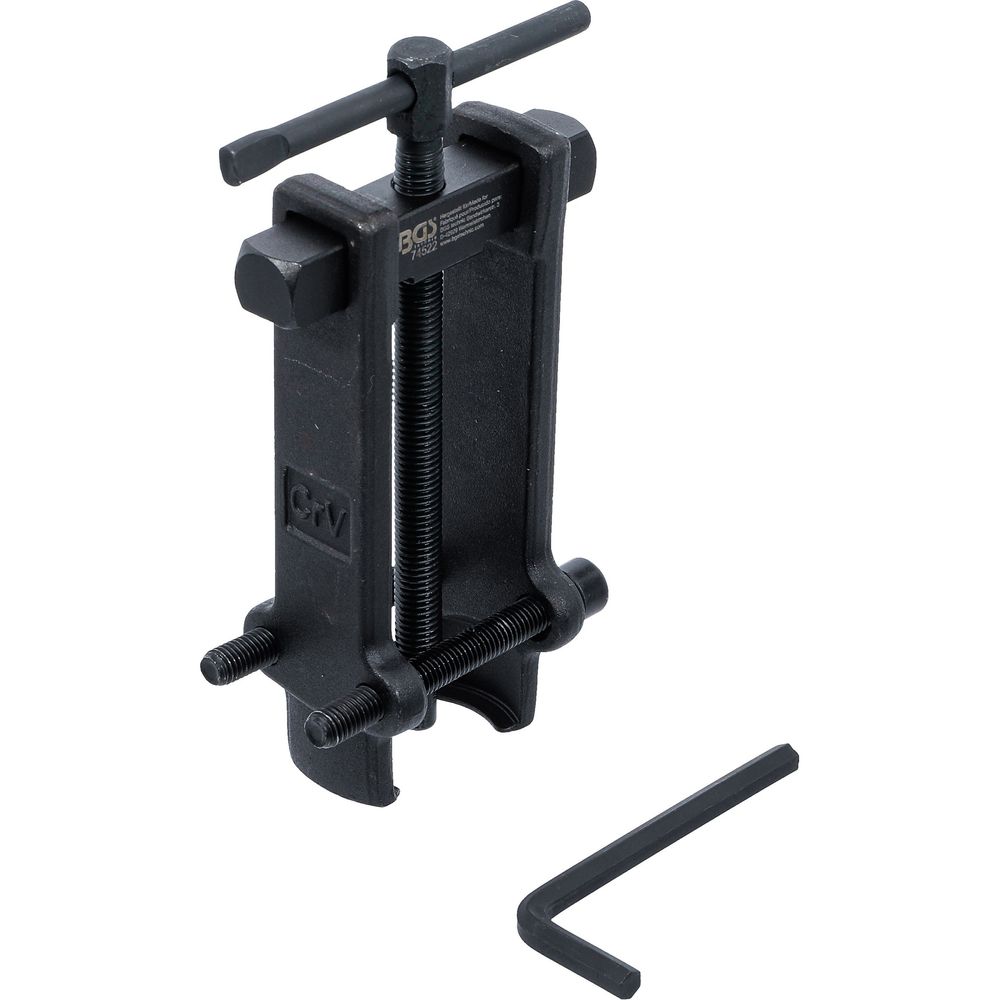

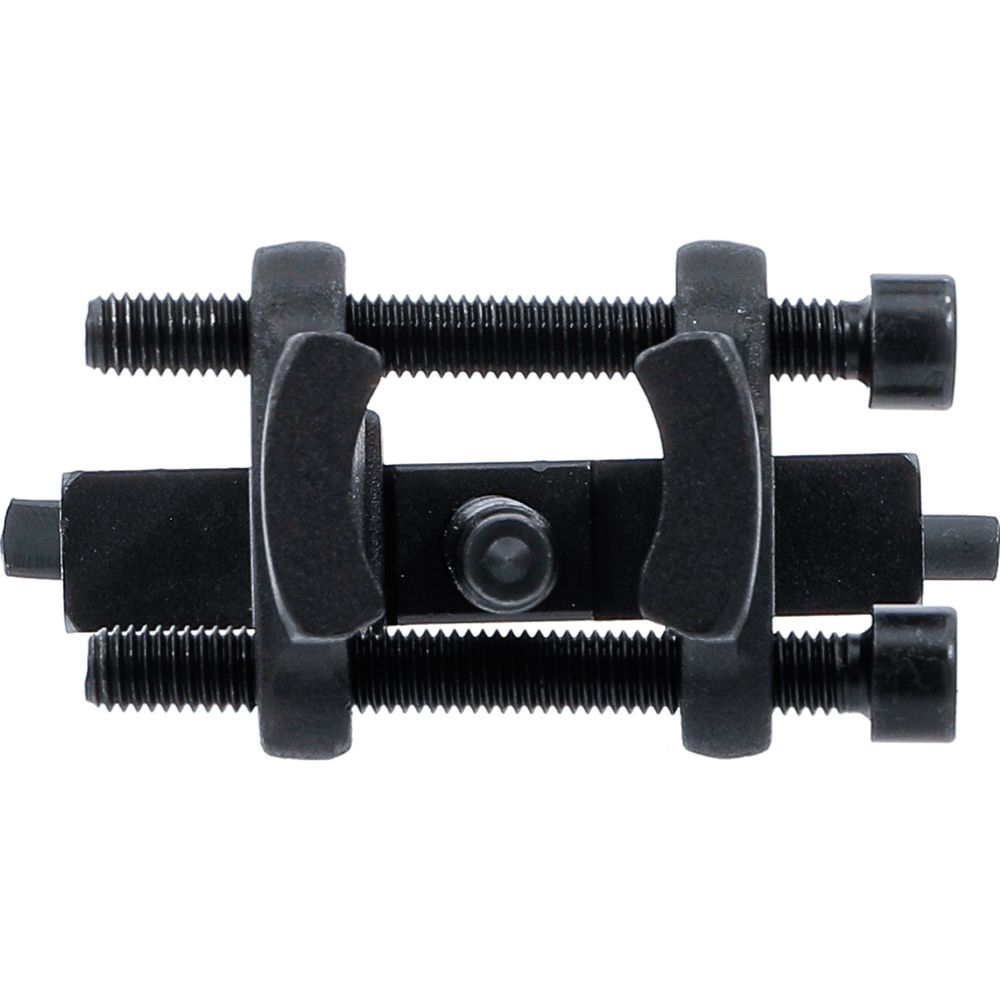

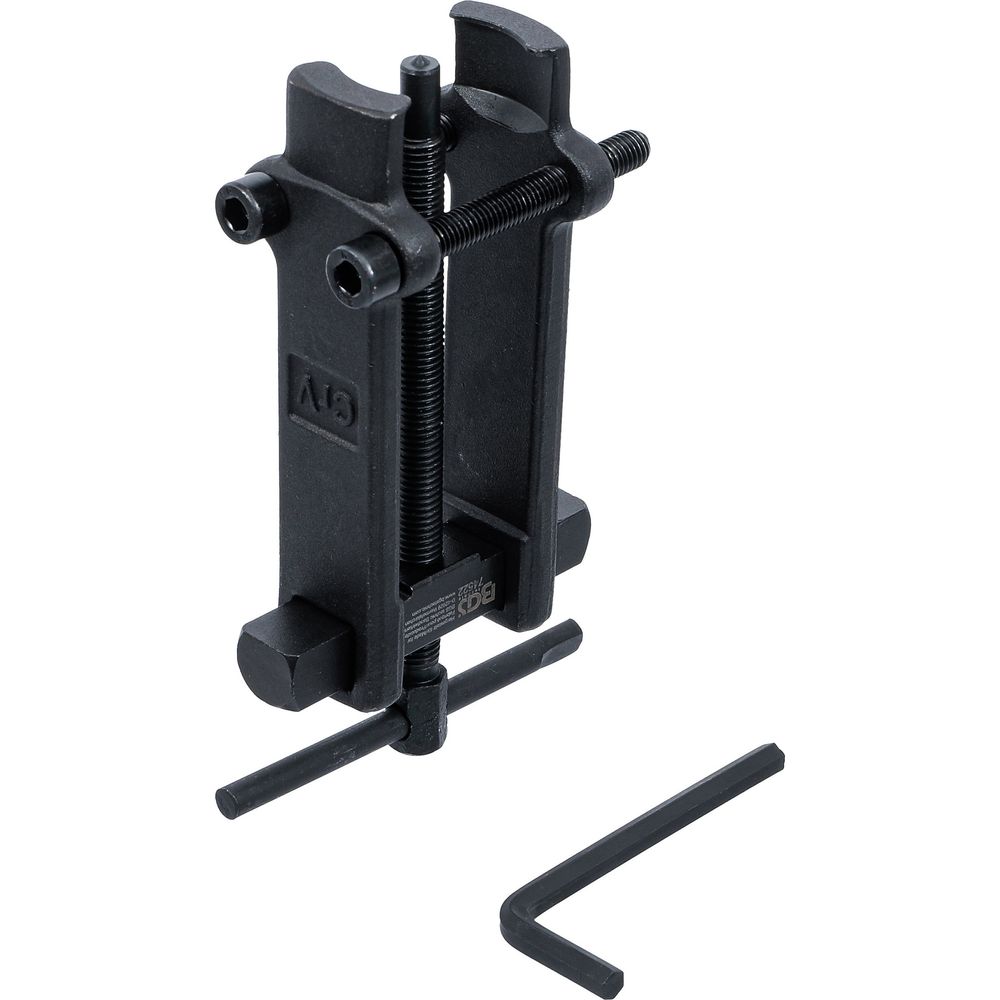

Parallel puller, 2-arm, 24–55mm
Product code: BGS-74522
Brand: BGS
Product description
The parallel puller 2-arm 24–55mm is designed for safe and efficient extraction of bearings, gear wheels, rotors, and other press-fitted components. Its parallel 2-arm design combined with laterally mounted tension screws ensures secure grip, preventing the pulling hooks from slipping off during use.
The tool is suitable for motorcycle, bicycle, and general vehicle maintenance, offering reliable performance in both professional workshops and DIY environments. Manufactured from drop-forged chrome vanadium steel, the puller delivers outstanding durability and long-term reliability. The 12mm hex drive allows easy operation using standard hand tools.
Technical data
| Specification | Value |
|---|---|
| Clamping width | 24–55mm |
| Clamping depth | 23mm |
| Hook length | 131mm |
| Hook foot thickness (top) | 2mm |
| Hook foot height | 3.5mm |
| Spindle length | 152mm |
| Drive size | Hex 12mm |
| Material | Chrome vanadium steel |
| Design | Drop-forged |
Key features
- Ideal for bearings, gears, rotors, press-fitted parts
- Suitable for motorcycles, bicycles, vehicles
- 2-arm parallel design with anti-slip tension screws
- 12mm hex drive for easy operation
- Drop-forged chrome vanadium steel for high strength
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 16.3 x 10.1 x 5.2 cm | 0.79 kg |
Delivery fee
| Delivery method | Gross price |
|---|---|
| Pickup in Nagytarcsa | 0,00 € |
| Pickup in Debrecen | 0,00 € |
| DHL Worldwide Express | 67,48 € |
