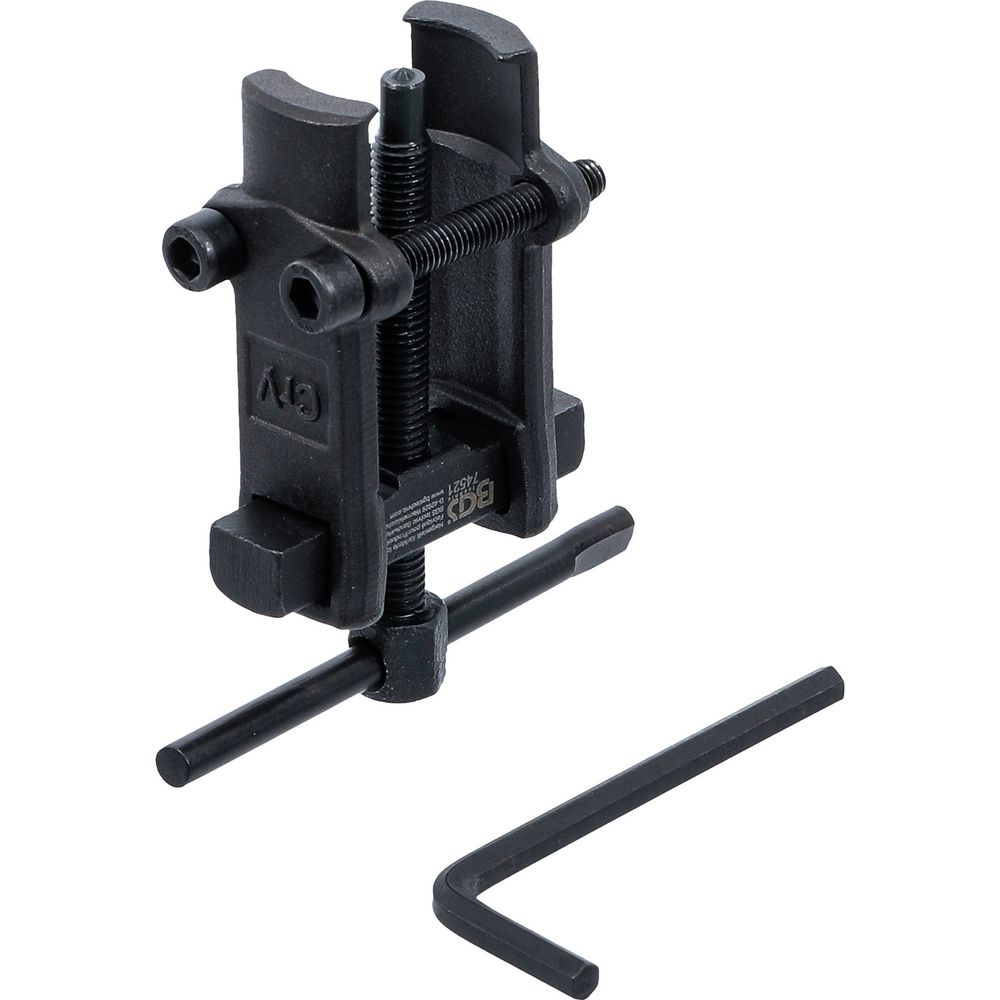

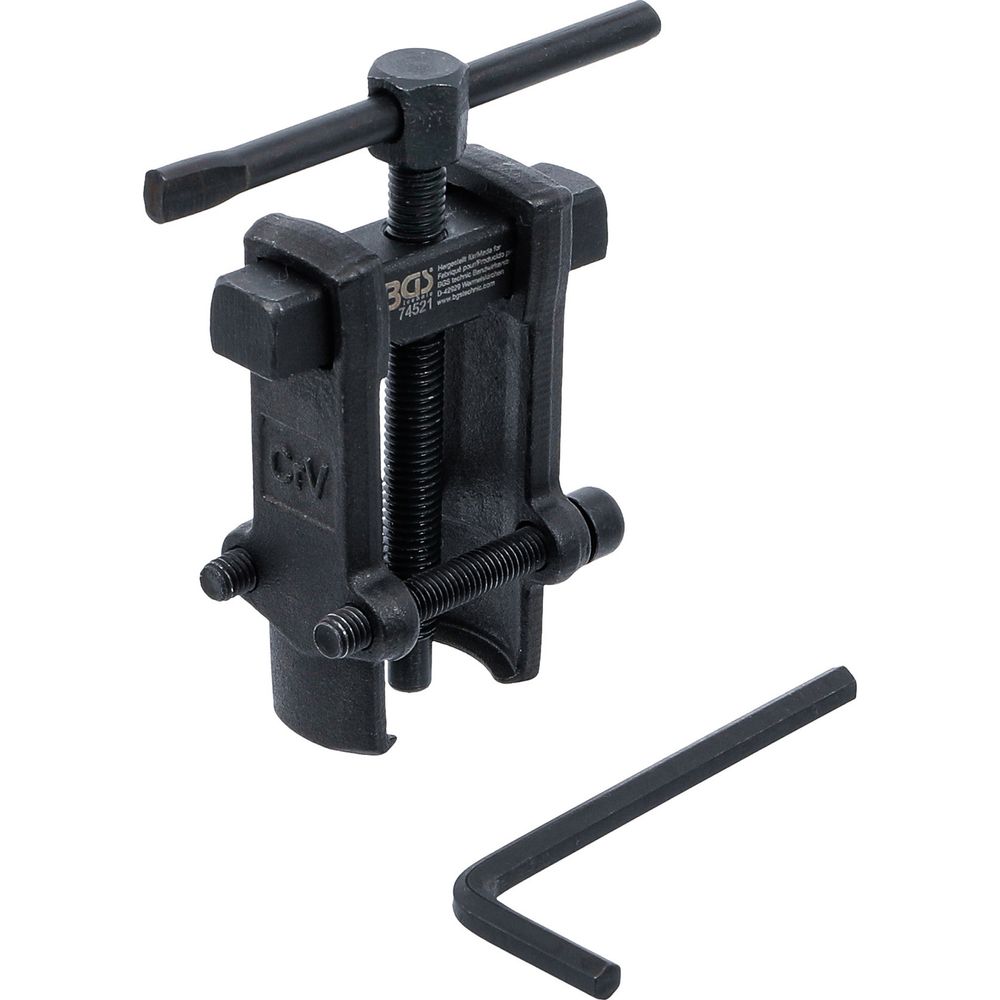

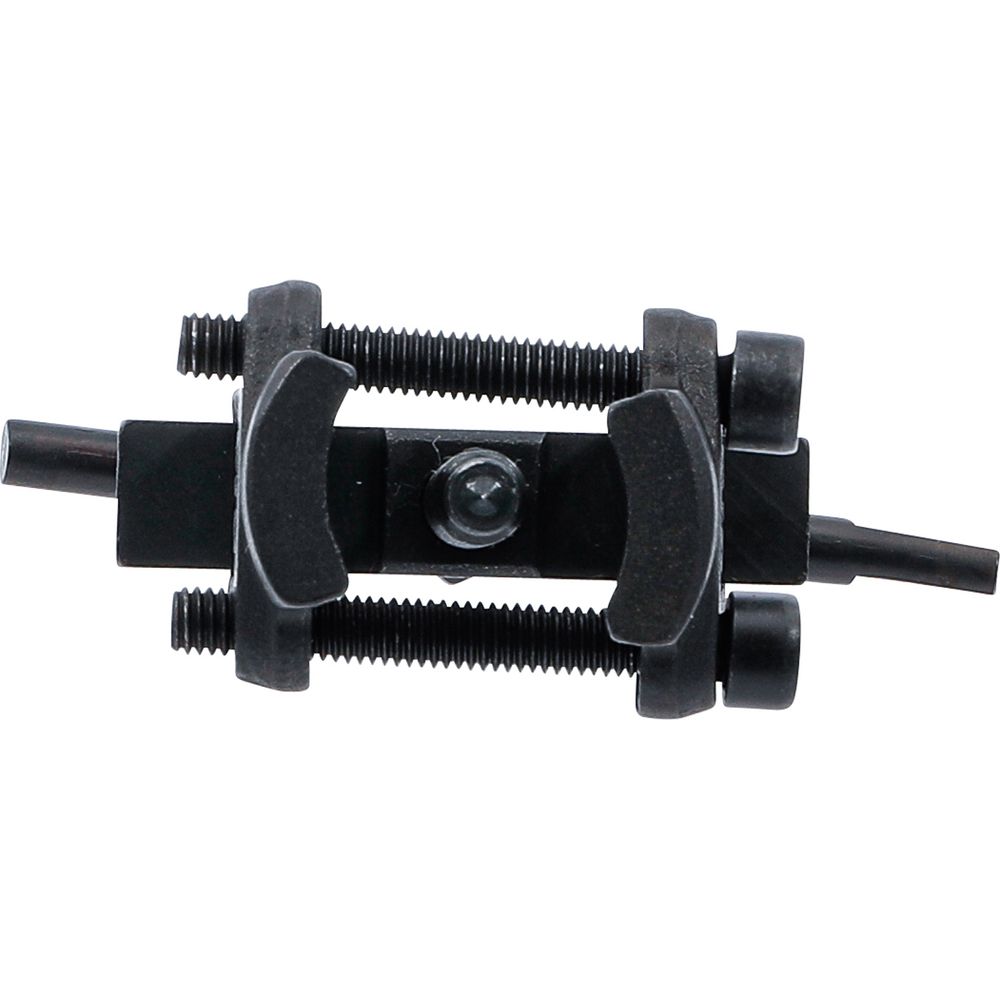

Parallel puller, 2-arm, 19–35mm
Product code: BGS-74521
Brand: BGS
Product description
The parallel puller 2-arm 19–35mm is designed for the safe extraction of bearings, gear wheels, rotors, and other press-fitted components. Thanks to its parallel 2-arm design and laterally assembled tension screws, the puller offers secure grip and prevents the hooks from slipping off during operation.
It is ideal for maintenance work on motorcycles, bicycles, and vehicles, and is suitable for both professional workshops and demanding DIY users. The puller is made of durable drop-forged chrome vanadium steel, ensuring strength and long service life. The hex drive size is 12mm, allowing easy operation with a socket or wrench.
Technical data
| Specification | Value |
|---|---|
| Clamping width | 19–35mm |
| Clamping depth | 18mm |
| Hook length | 71.6mm |
| Hook foot thickness (top) | 1.5mm |
| Hook foot height | 3mm |
| Spindle length | 89mm |
| Drive size | Hex 12mm |
| Material | Chrome vanadium steel |
| Design | Drop-forged |
Key features
- Ideal for bearings, gears, rotors, press-fitted parts
- Suitable for motorcycle, bicycle, and vehicle maintenance
- 2-arm parallel design with anti-slip tension screws
- Hex drive: 12mm
- Drop-forged chrome vanadium steel for durability
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 9.9 x 9.8 x 3.9 cm | 0.3 kg |
