Pneumatic edge flanging and punching tool
24 months warranty
Warranty period: 24 months for consumers, 12 months for businesses. Details
About this product
Description

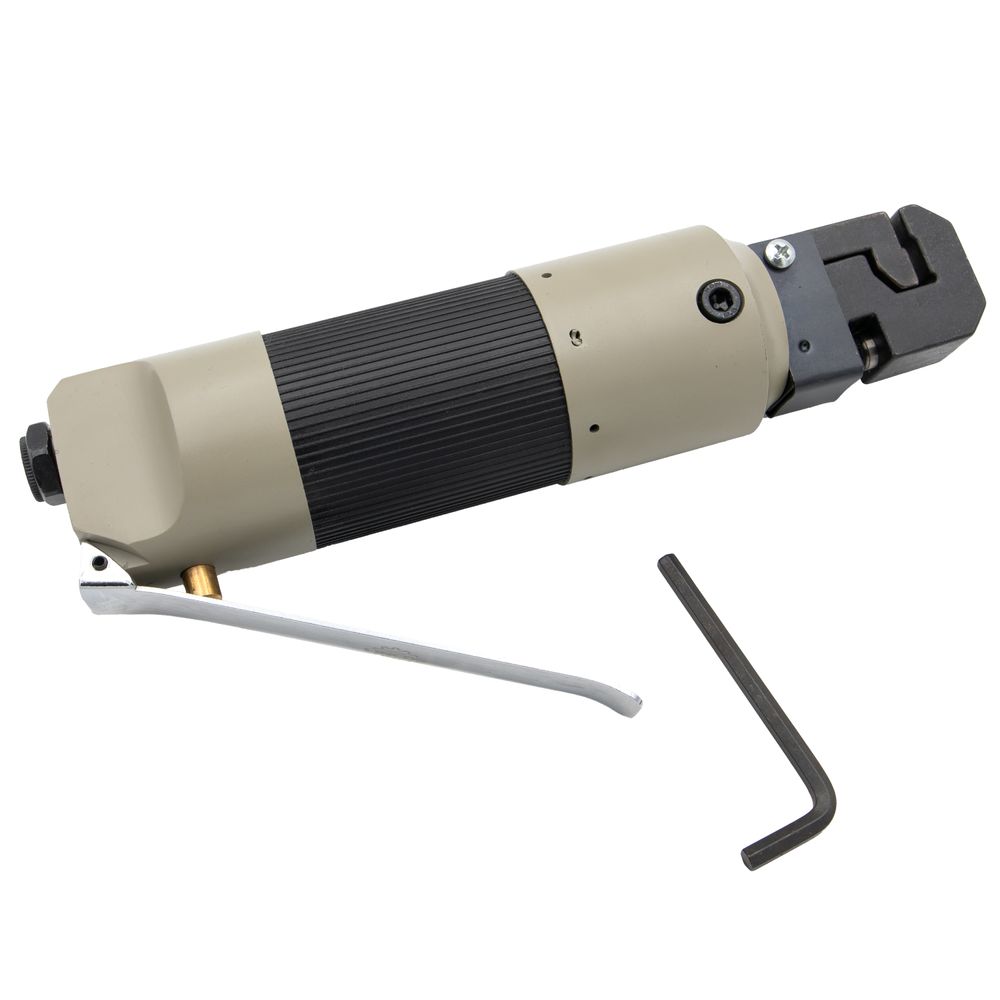

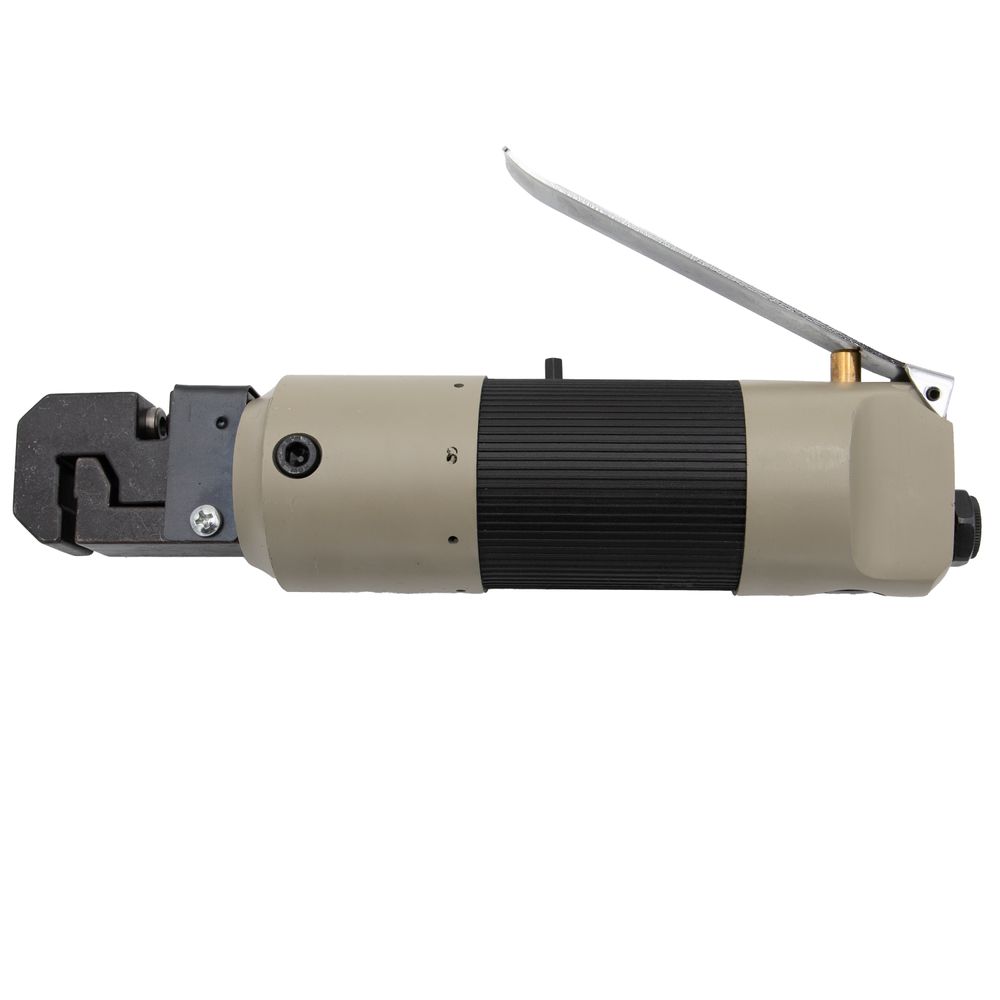

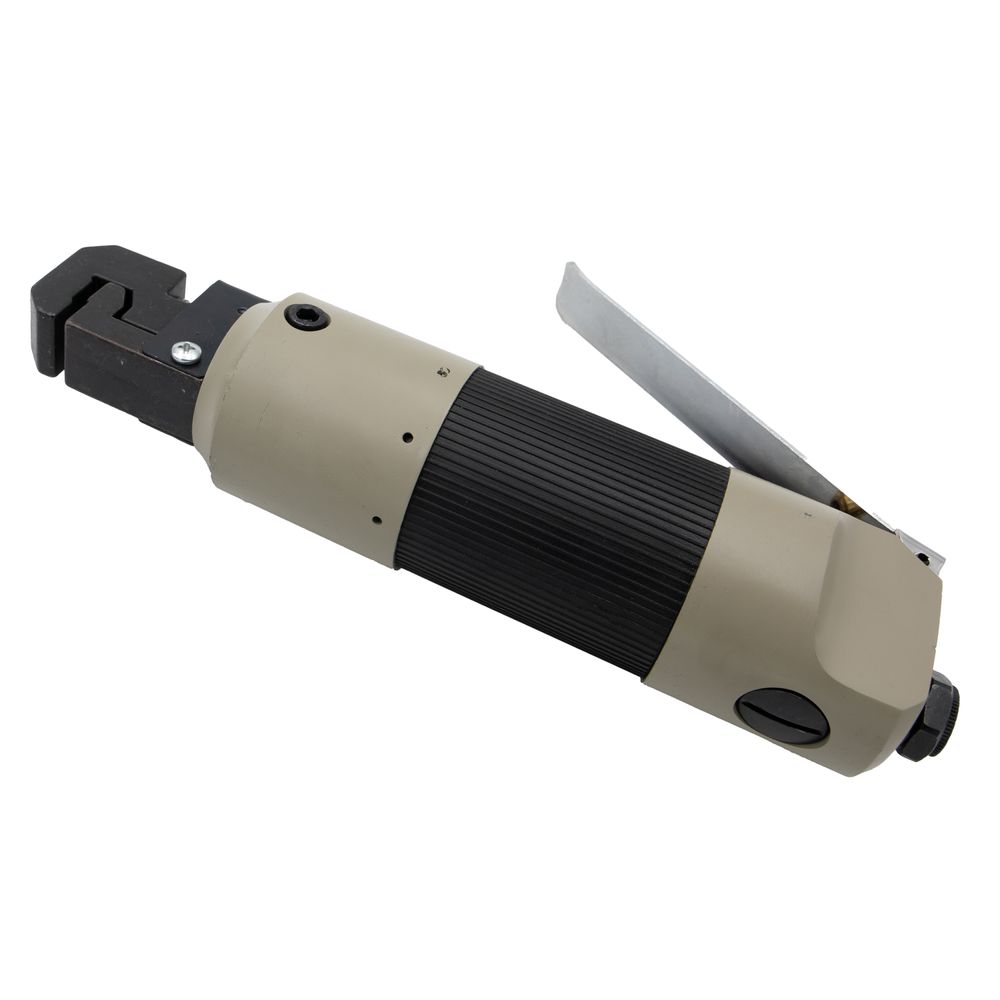

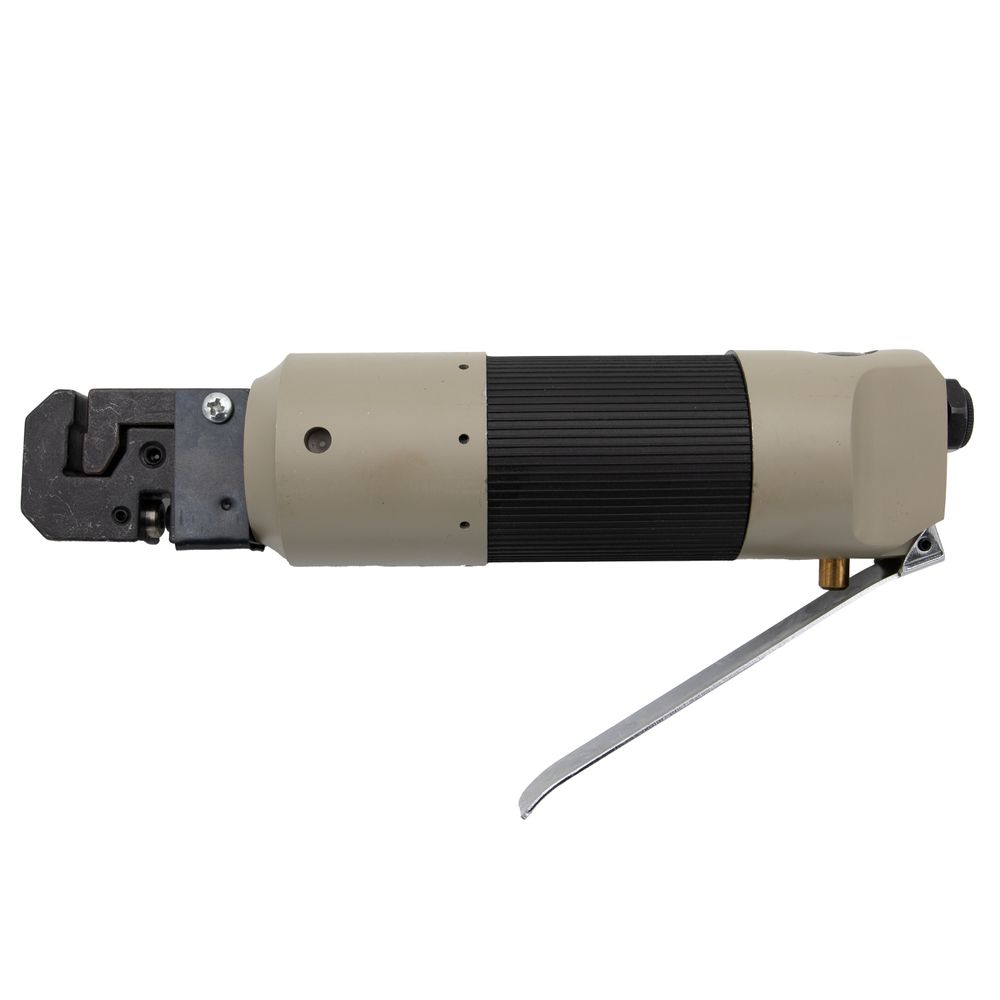

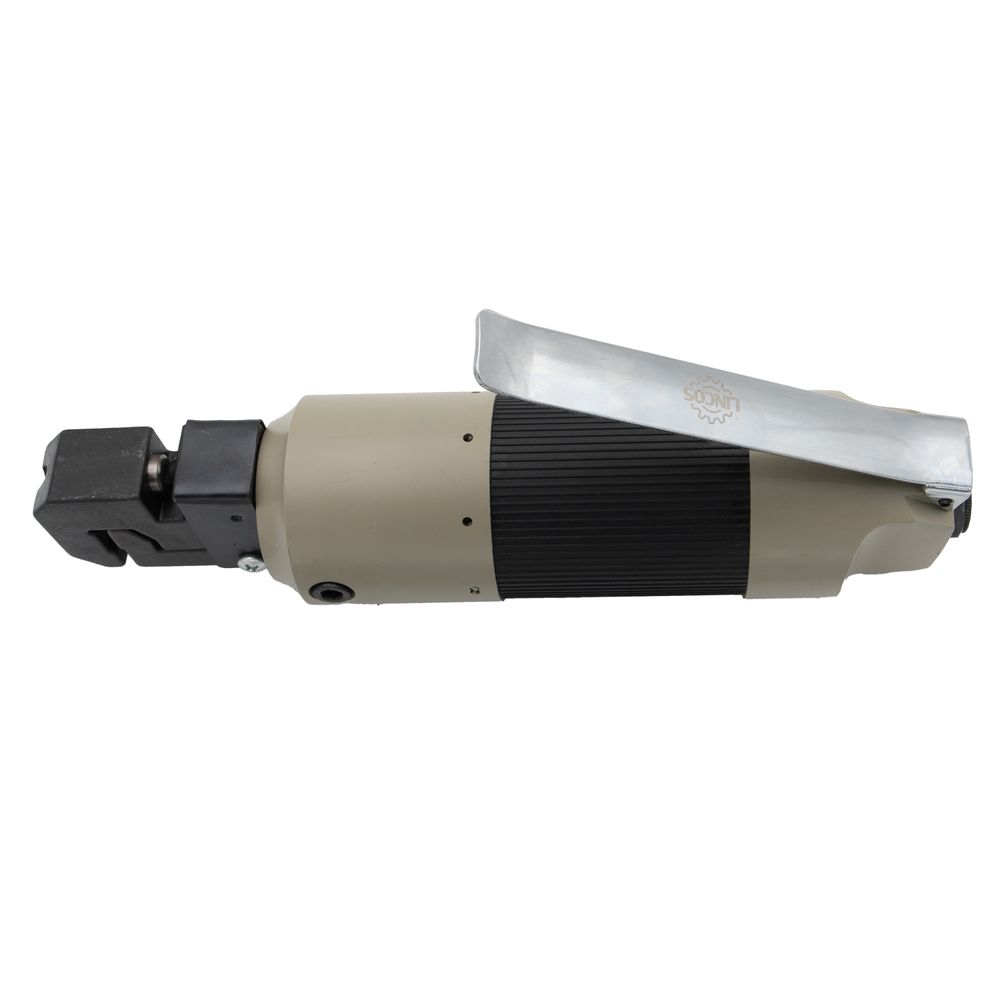

The pneumatic hole punch and flanging tool is a versatile two-in-one air-powered device designed for auto body repair and sheet metal work. It combines the functions of a hole punch and a flange maker in one practical tool.
The punching feature creates clean 4.8mm holes, ideal for fastening or welding metal sheets. The flanging head rotates 360°, allowing precise and comfortable forming of lap joints or flanges even in confined spaces or at awkward angles.
Built to handle metal sheets up to 1.6mm thick, it operates at a working pressure of 6.2bar with an air consumption of 113L/min, making it compatible with most standard workshop compressors. It connects via a 6.35mm (1/4in.) NPT female air inlet for convenience.
Technical specifications
| Feature | Specification |
|---|---|
| Hole punch size | 4.8mm |
| Cutting capacity | 1.6mm |
| Head rotation | 360° |
| Working pressure | 6.2bar (90psi) |
| Air consumption | 113L/min (4cfm) |
| Air inlet size | 6.35mm NPT / Female thread |
This tool ensures efficient and accurate preparation of sheet materials, making it an excellent choice for professional workshops and repair tasks.
Specifications
| Brand | Lincos |
| Product Code | MG93304 |
| EAN | 5999083331246 |
| Weight | 1.39 kg |
| Dimensions | 25 × 15 × 7.5 cm |
Packaging
| Package | Dimensions | Weight |
|---|---|---|
| 1 | 25 × 15 × 7.5 cm | 1.39 kg |
