Injector seat milling and cleaning kit

Description

• A set that can be used for renovating and cleaning an injector seat
• Suitable for a wide range of car types with 13 milling heads
• The milling heads can be moved with a T-shank
• The batteries can also be used to clean the injector housing
• With two brush sizes
• Glow plug is also suitable for cleaning the nest

Use

• To repair the injector seat, first clean the area around the injector and then remove it with the sealing ring.
• Select a milling head that is appropriate for the design of the nest.
• Secure with an Allen key on the milling shank.
• Use the T handle to mill. Do not apply too much pressure to the tool. Move in the direction of milling according to the design of the milling head.
• Before cleaning the injector housing, insert the blanking plug into the nozzle hole using the retaining shank. This prevents the contaminant from entering the cylinder.
• Attach the cleaning brush to the adapter and use the extension shank if necessary. Then move the drill to clean the nest.
• Secure the blind plug with the stem and vacuum the removed dirt.
• Use a long, thin brush to clean the spray tip hole. Rotate in the direction of travel.

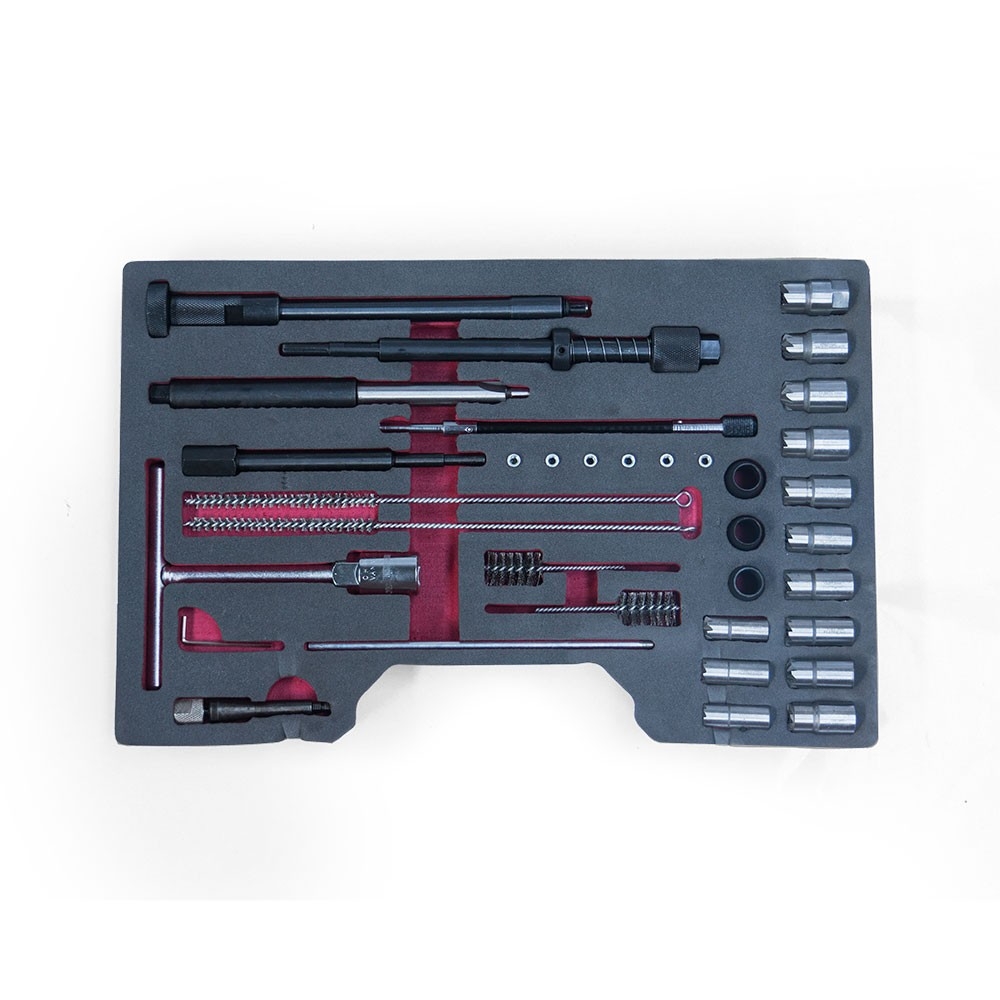

Content

• 2.5mm Allen key,
• 4 cleaning brushes
• Brush holder adapter
• Mounting shank extension
• 6pcs Metal blind plugs
• Metal plug fixing shank
• 3pcs Milling head
• T handle
• 19x170mm Shank
• 13x225mm Cutter
• Seal puller
• Fuel storage box
• 14mm x14mm straight milling head
• 15.5mm x 15.5mm straight milling head
• 15.5mm x 15.5mm angle milling head
• 17.5mm x 20.5mm angle milling head
• 15mm x 19mm straight milling head
• 17mm x 19mm straight milling head
• 17mm x 20mm straight milling head
• 17mm x 17mm straight milling head
• 17mm x 17mm angle milling head
• 17mm x 17.5mm straight milling head
• 17mm x 19.5mm straight milling head
• 17mm x 21mm angle milling head
• 19mm x 21.5mm straight milling head
