Two-post lift, 5.5t, single-side manual lock release
Product code: STD-5055M 400V
Brand: Lincos
- Debrecen: 3
- Budapest: 3
- Depo: 2
Product description

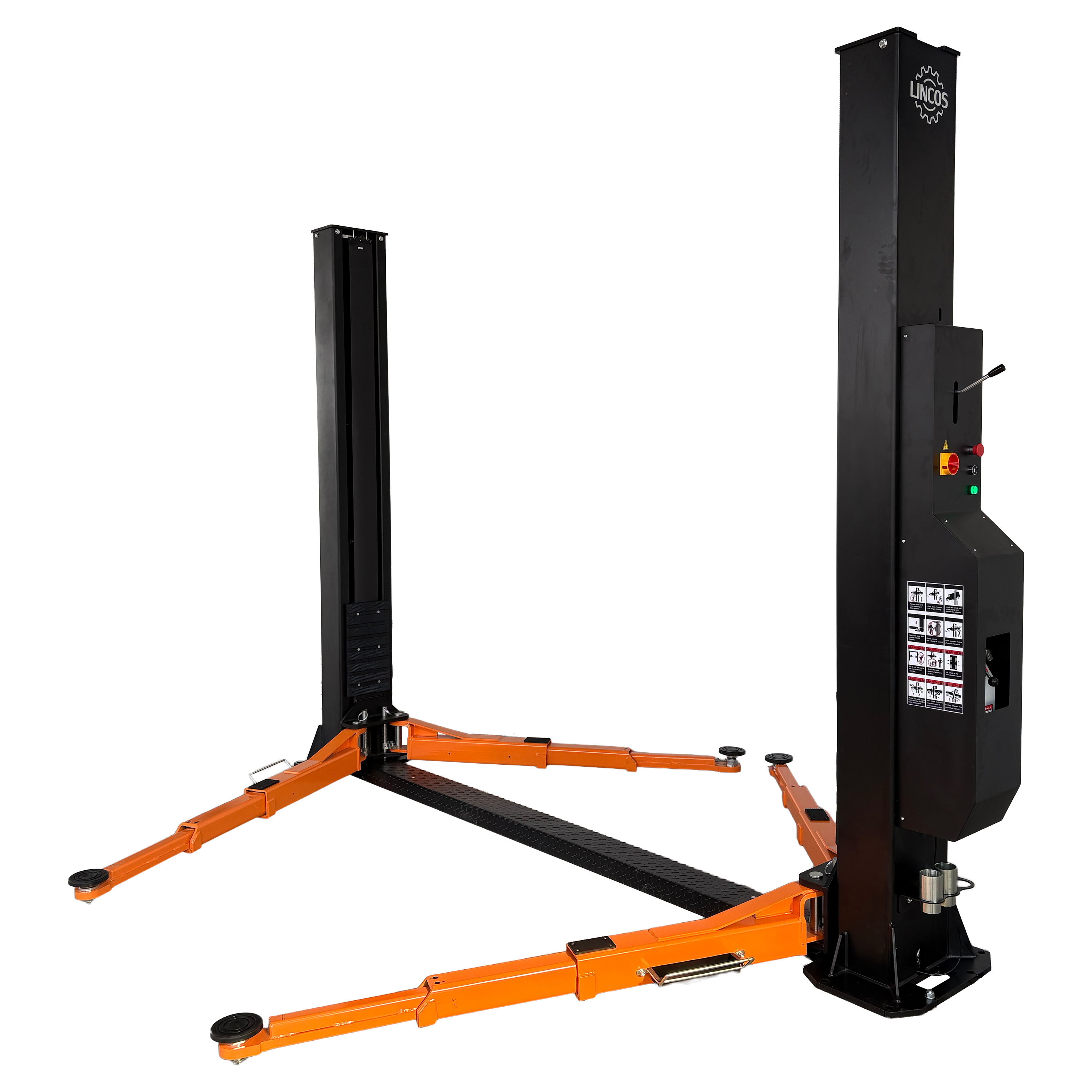

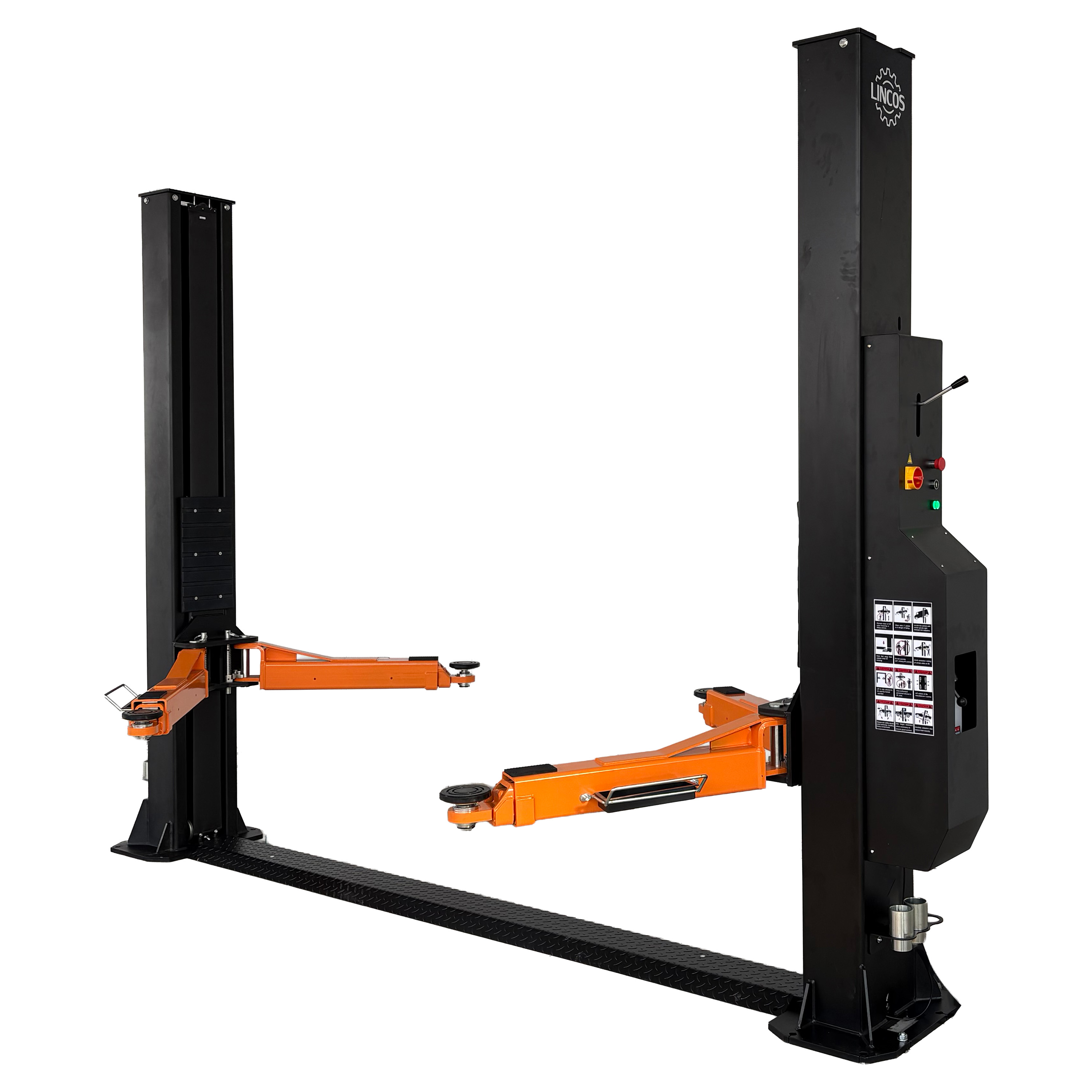

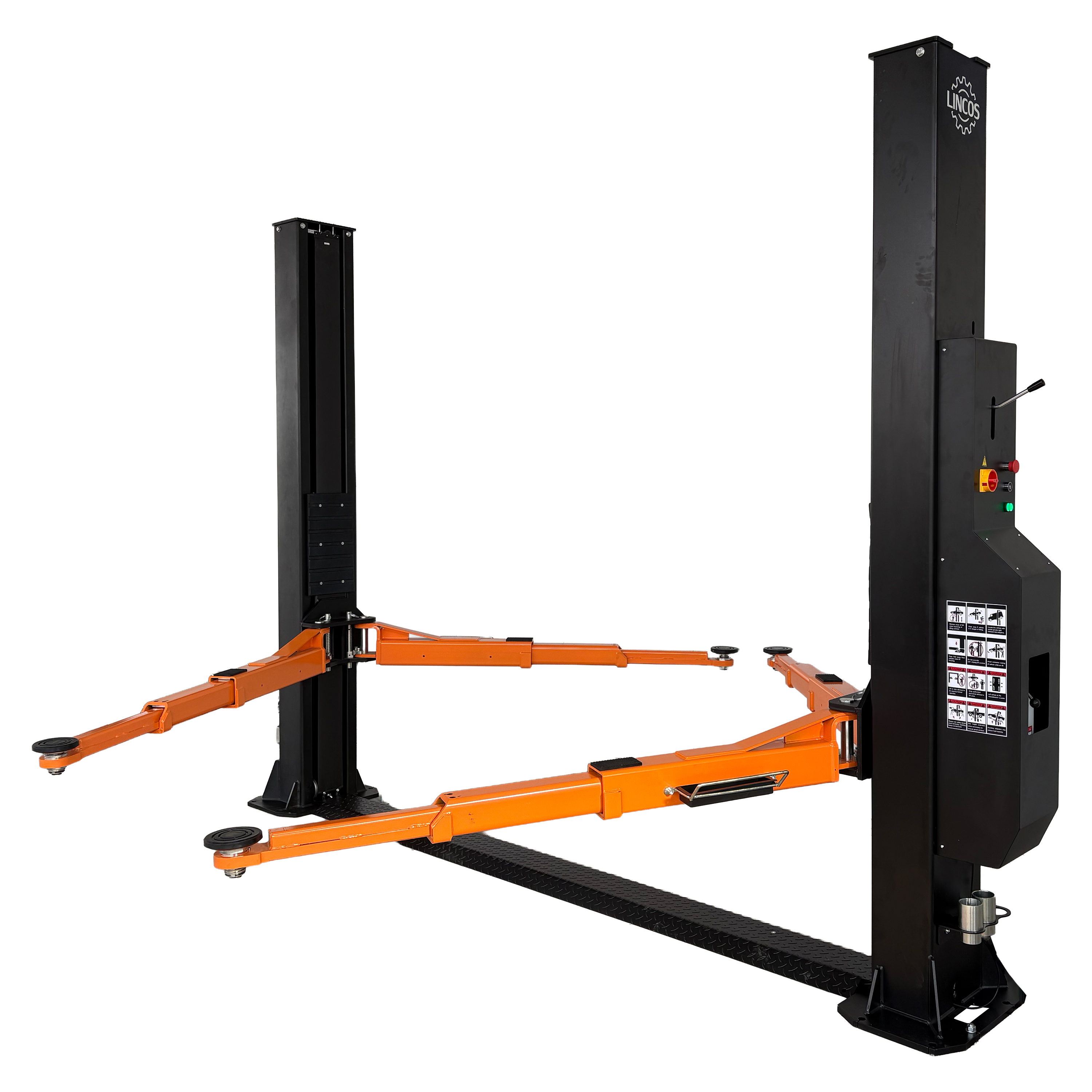

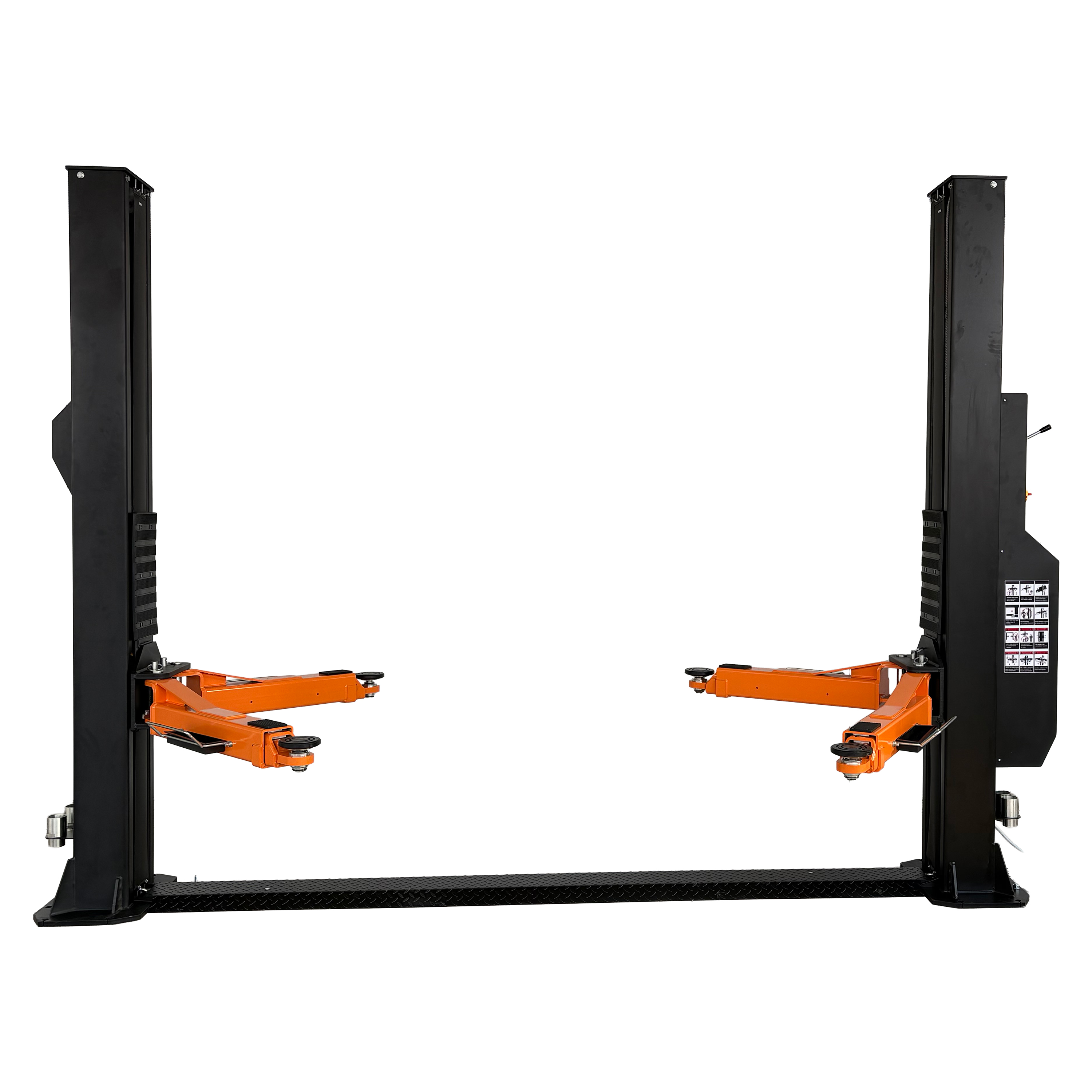

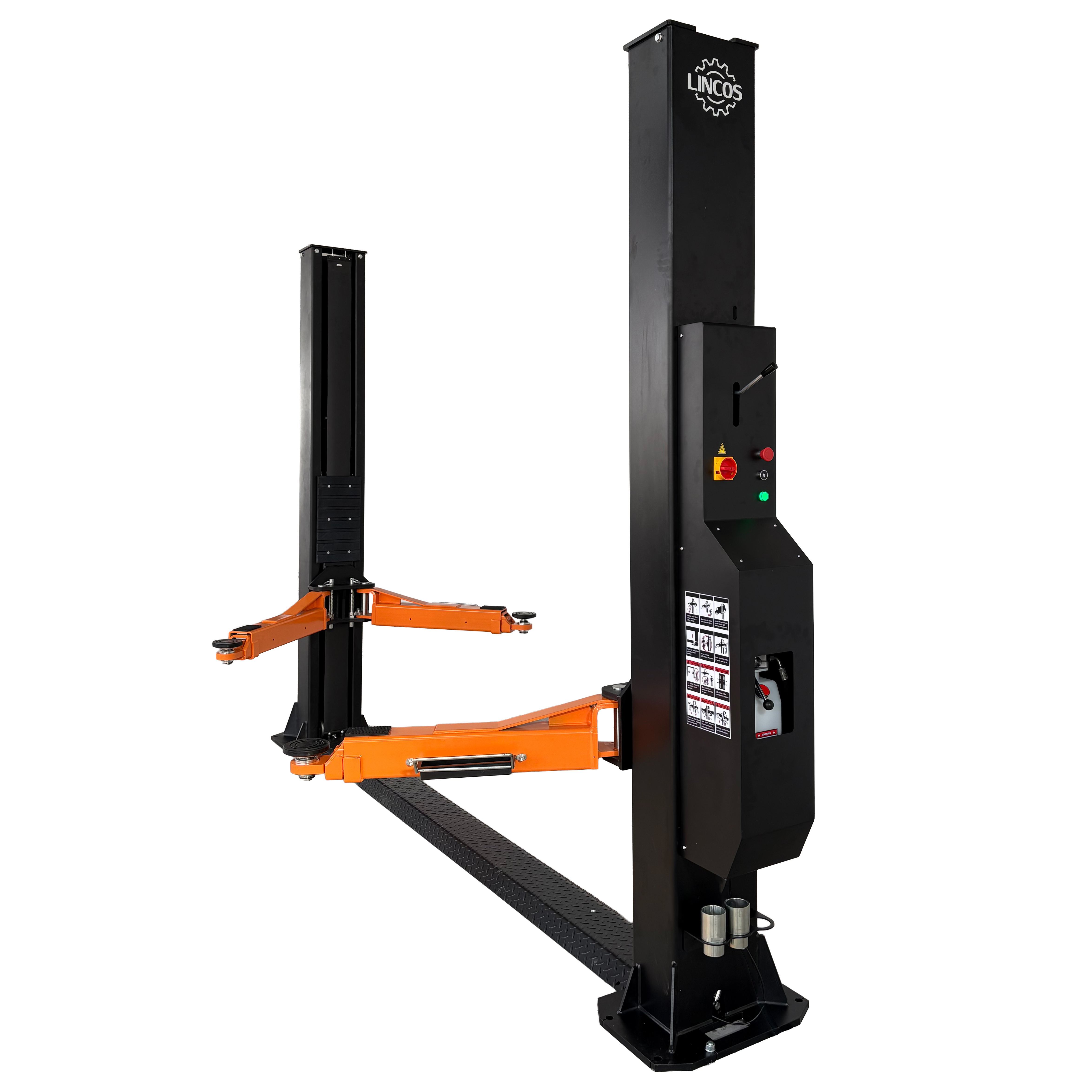

The Lincos STD-5055M two-post vehicle lift is a high-performance hydraulic lift designed for vehicle maintenance, testing, and repair. This lift is ideal for professional workshops looking for reliable and efficient lifting solutions.
The 2-post lift is a result of in-house development, featuring a dual hydraulic cylinder system with synchronized movement via steel cables. It has a lifting capacity of 5,500kg and is powered by an electric motor driving the hydraulic pump, which distributes oil to the cylinders mounted inside the columns.
The lift features synchronized movement via steel equalizer cables and sliding carriages, a mechanical safety locking system operated manually, and a hydraulic system equipped with a one-way valve, solenoid and manual lowering valves, an anti-leakage valve, and a stable-positioning hydraulic cylinder.
Key Features
- Hydraulic System: Dual-cylinder hydraulic lifting system with synchronized steel cable operation ensures stable and even lifting.
- Safety Mechanisms: Mechanical safety locks in each column and a hydraulic pressure relief valve protect against overloading.

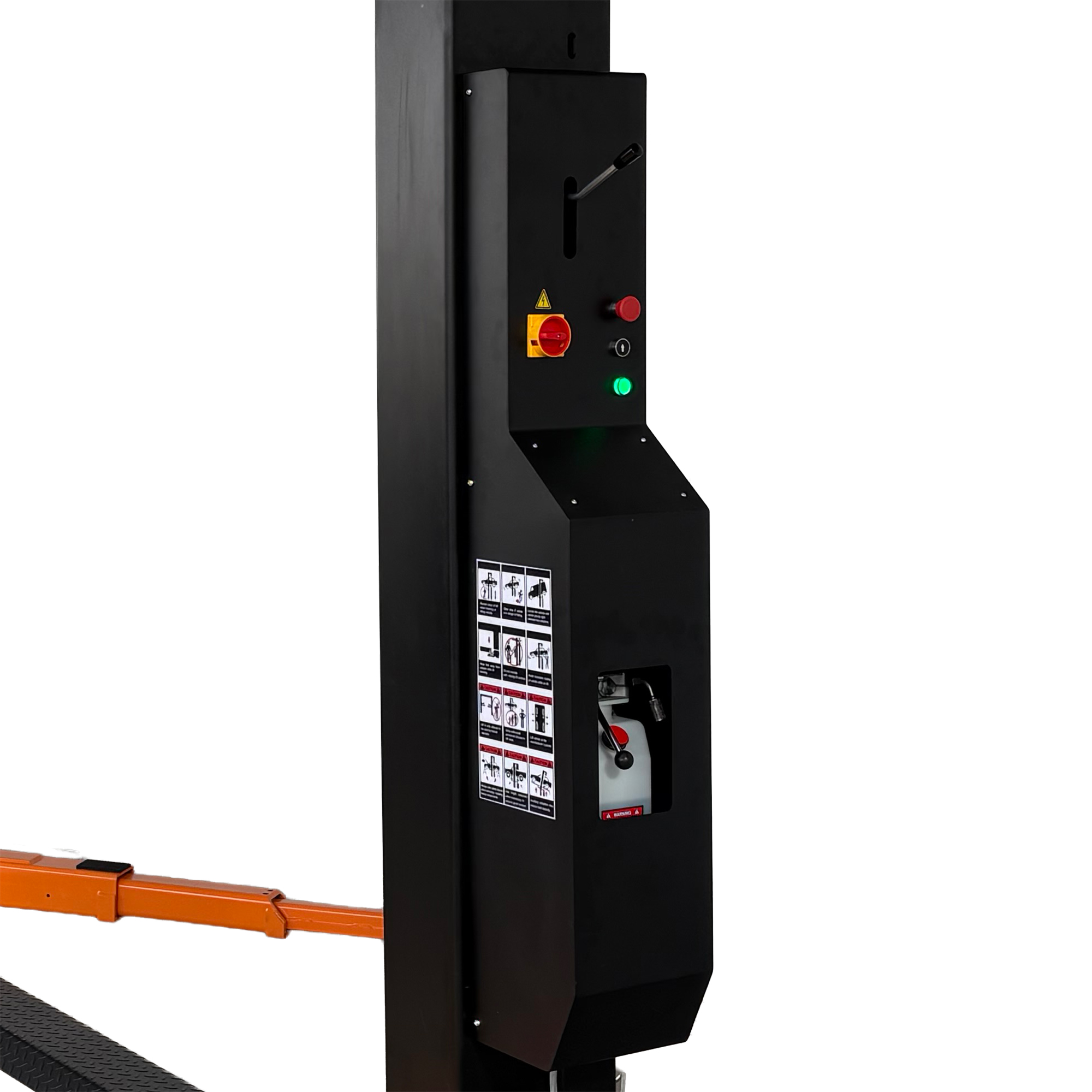

- Ease of Use: User-friendly control panel with power switch, emergency stop, lift button, and indicator light.
- Durability: Robust steel construction designed for long-term reliability in demanding workshop environments.
- Installation Requirements: Requires installation on a level, steel-reinforced concrete floor with at least 200mm thickness and 3000 PSI strength.

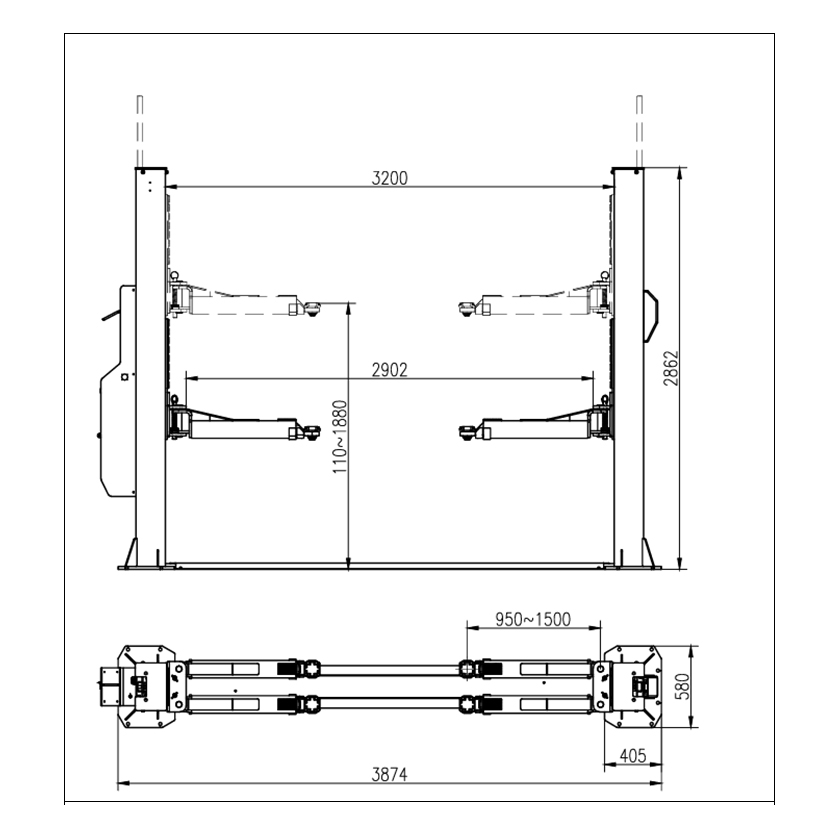

Technical Specifications
| Parameter | Details |
|---|---|
| Lifting capacity | 5500 kg |
| Lifting time | <50 seconds |
| Descent time | <50 seconds |
| Max. Lifting height | 191,5cm |
| Min. Lifting height | 11 cm |
| Overall width | 397 cm |
| Column height | 285 cm |
| Drive through width | 286 cm |
| Overall height | 319,5 cm |

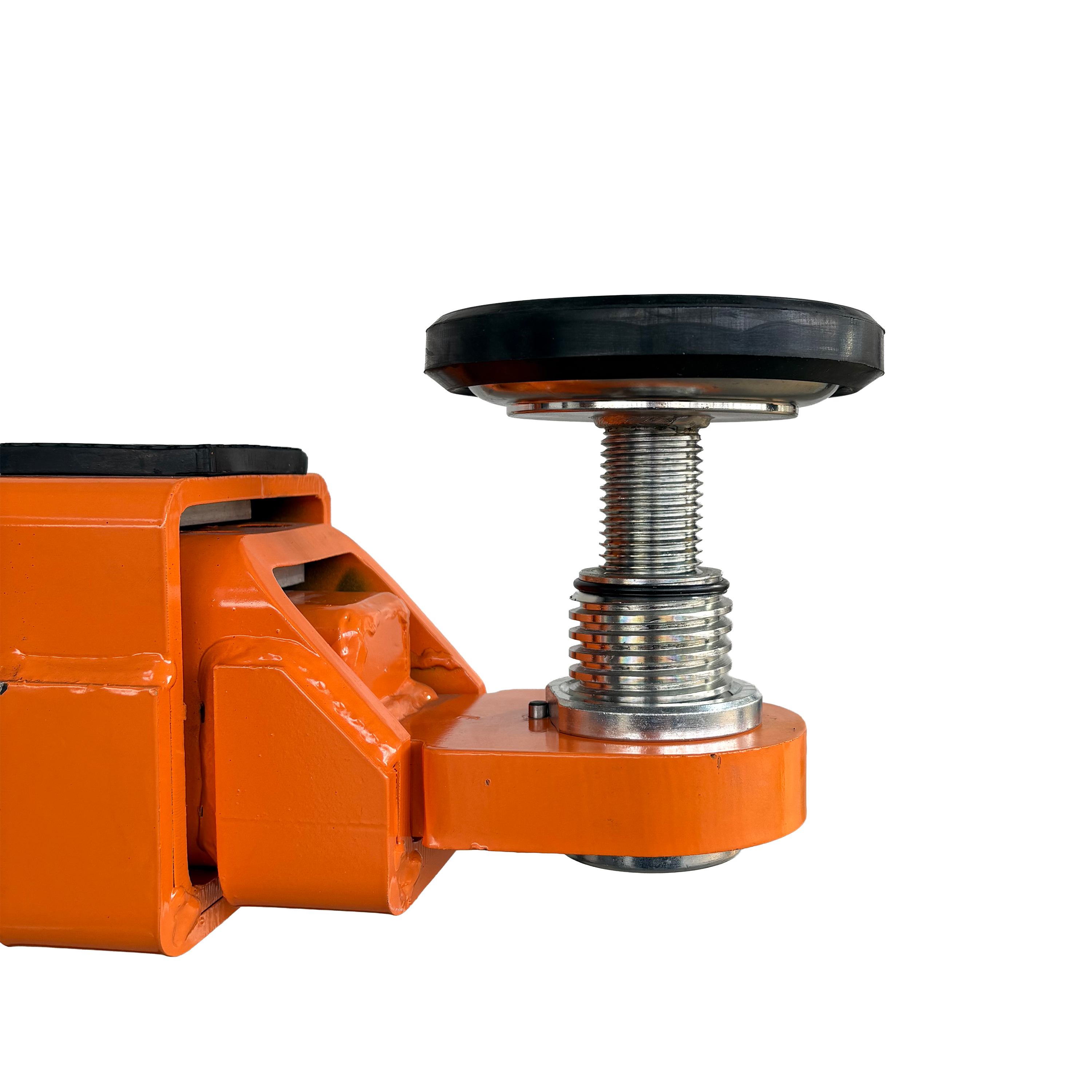

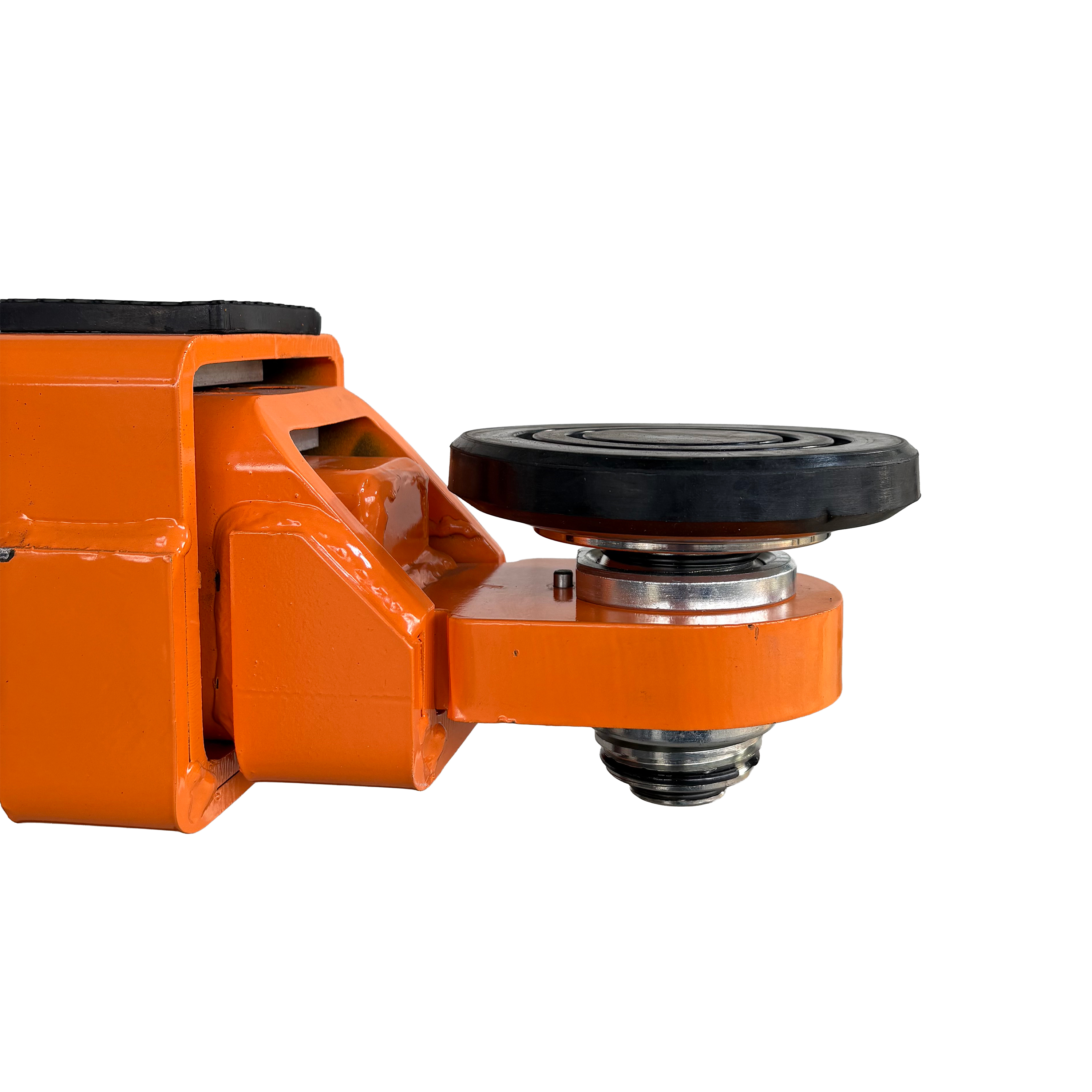

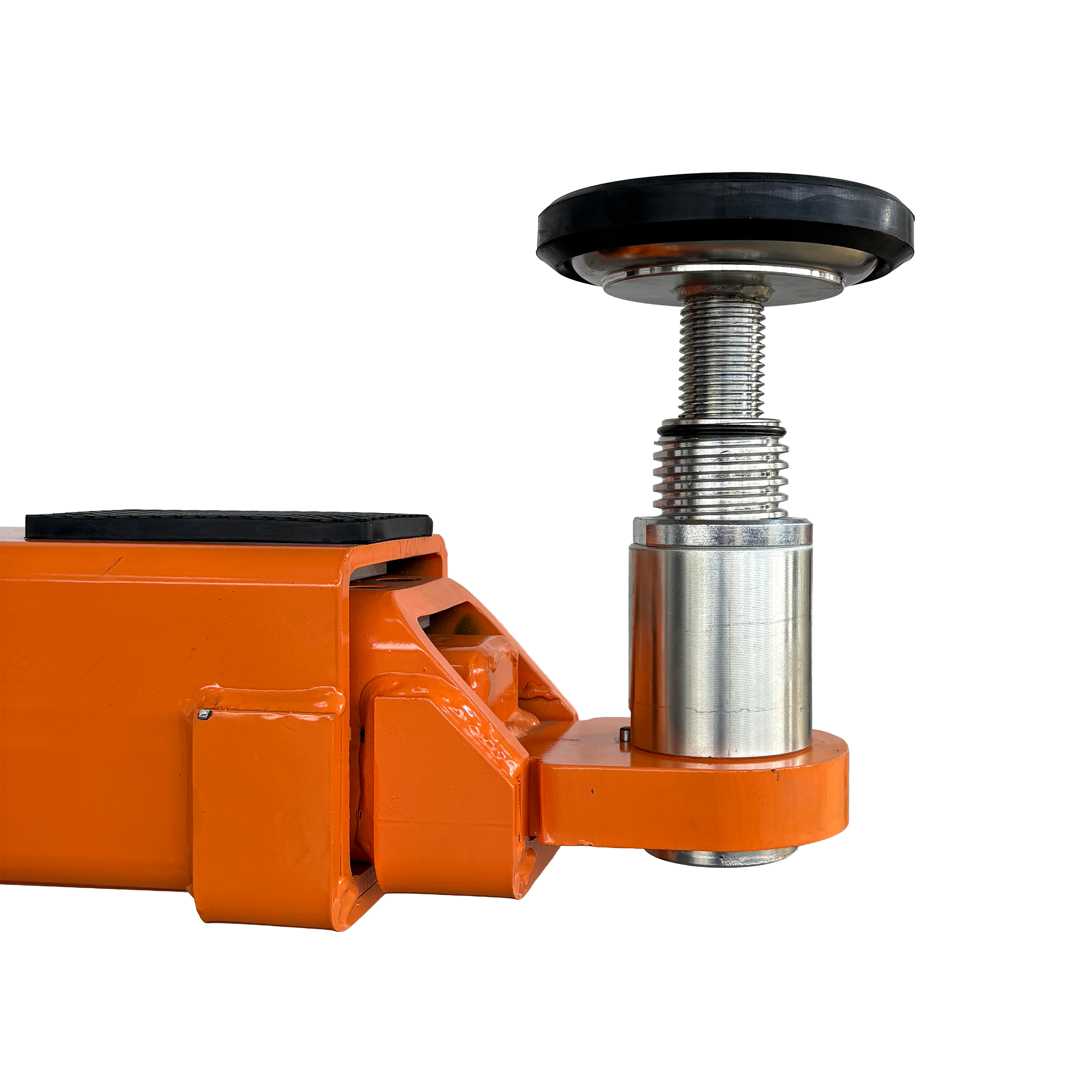

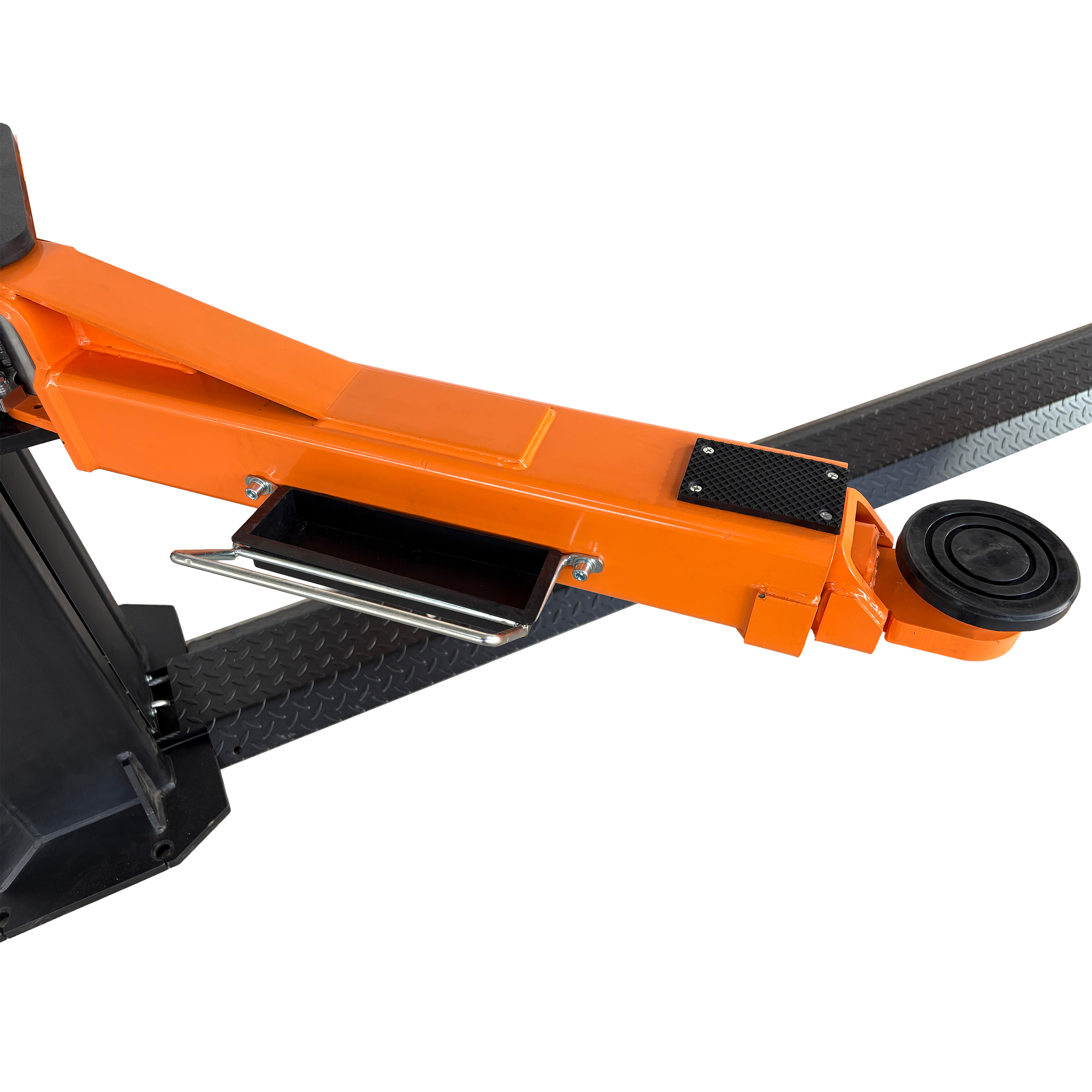

| Arm length | 950 - 1500mm, three-stage |
| Power Supply | 400V, 3Ph, 50Hz |
| Column-integrated socket outlet | 230V, 10A |
| Power | 3 KW |
| Noise Level | ≤85 dB |
| Installation Place | Indoors |
| Net Weight | 990 kg |
| Safety Catch Type | Manual single-side |
| Oil | 10L |
| Symmetric lifting arms | Yes |
| Oil type | #32 or #46 |
Safety Instructions
- Only authorized personnel should operate the lift.
- Do not exceed the rated lifting capacity of 5500 kg.
- Ensure the mechanical safeties are engaged before working under or near the vehicle.
- The lift is designed for indoor installation only.
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 287 x 59 x 87 cm | 910 kg |
| 2 | 82.5 x 24.5 x 31 cm | 23 kg |
| 3 | 156 x 33 x 32 cm | 18 kg |
| 4 | 321 x 30 x 6 cm | 54 kg |
