Two-post lift, 4.0t, electronic lock release

Professional two-post lift – reliable, fast, safe

The Lincos STD-5040E is an electro-hydraulic, asymmetric two-post lift designed for professional car repair workshops. With a 4.0 t capacity it lifts cars and light commercial vehicles, while the electronic safety-lock release and the S-profile columns give a very stable, safe working position. Thanks to the 230V supply it can be installed where no three-phase supply is available.

Main features

• Electronic safety-lock release – the safety latches engage automatically while lifting; when lowering, pressing the down button opens them with magnetic release units, so there is no manual release and less room for human error

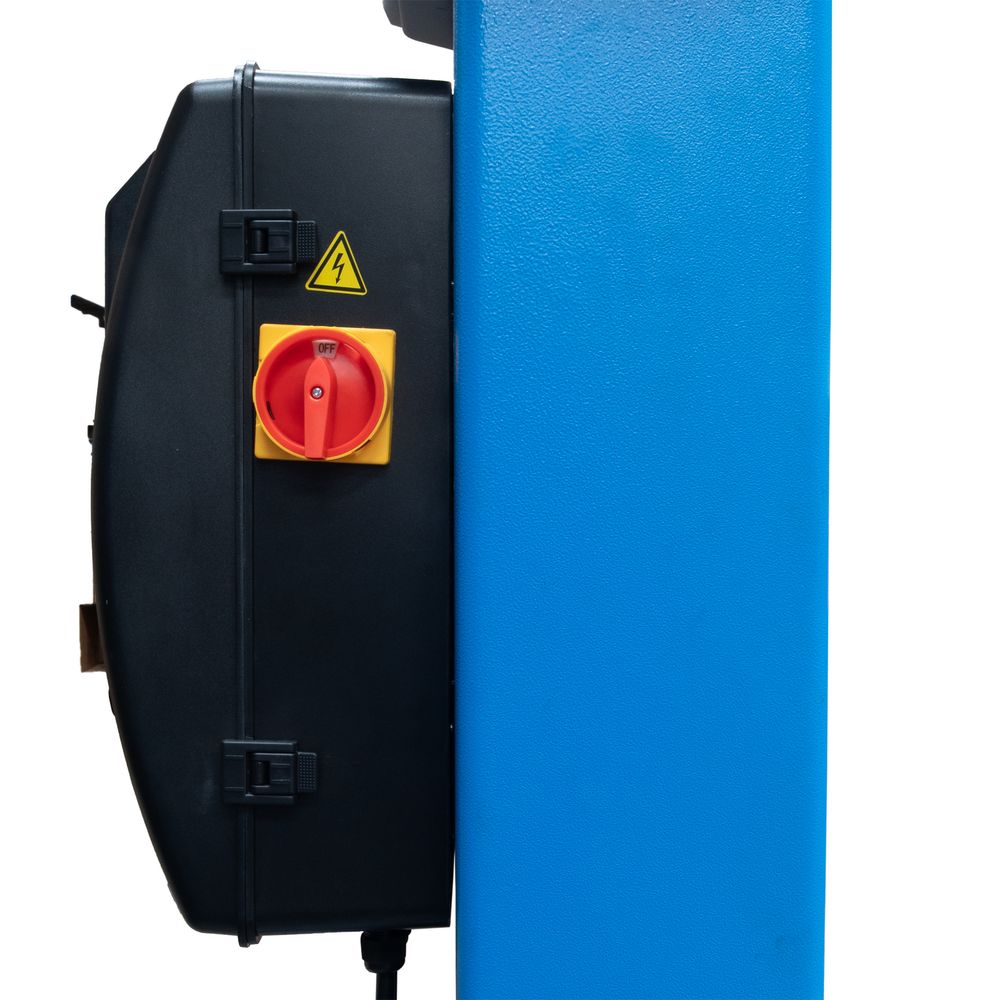

• Enclosed motor and control housing – a closed steel housing protects the motor and hydraulic unit from dust and damage; with no exposed motor it gives the workshop a neat, professional look
• Ergonomic control panel – all controls in one place on the front of the housing, within easy reach: main switch, up, down and lock buttons and an indicator light
• S-profile columns – the special S-shaped column profile is much stiffer and more resistant to twisting than a straight profile, extending the life of the whole structure

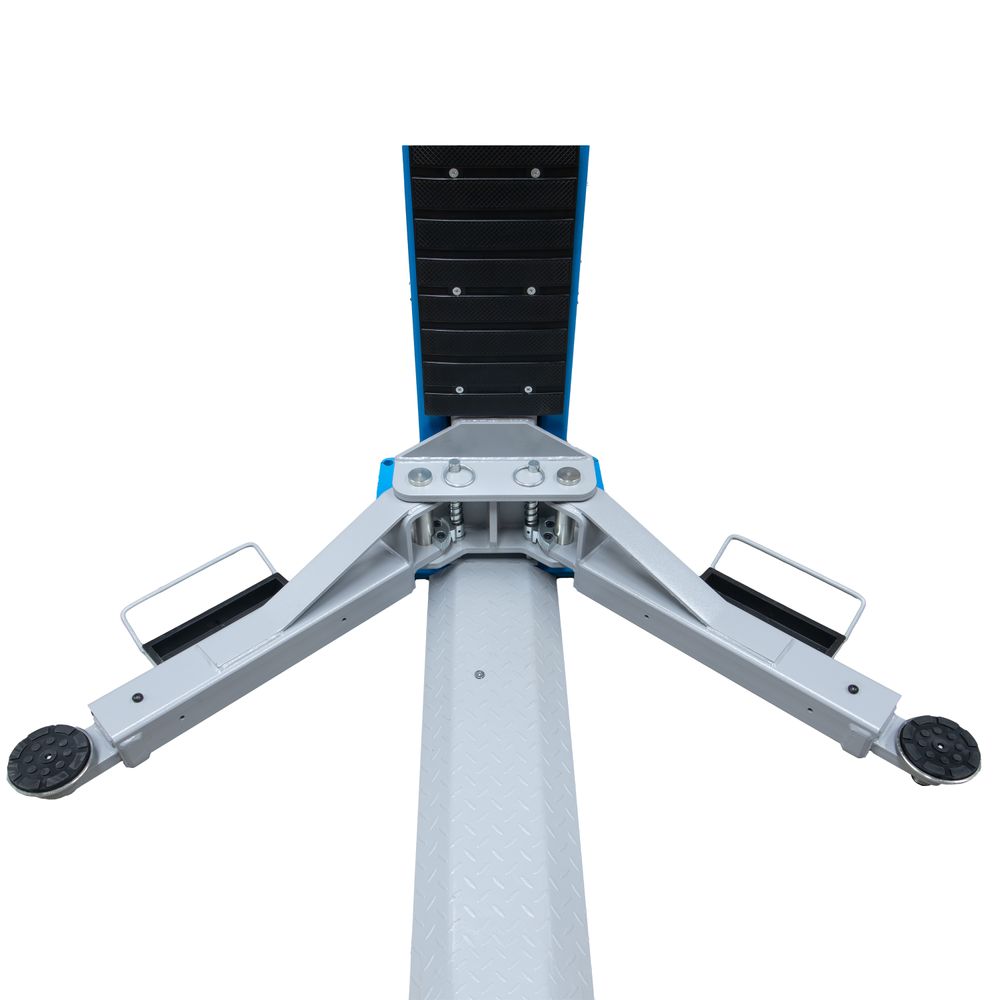

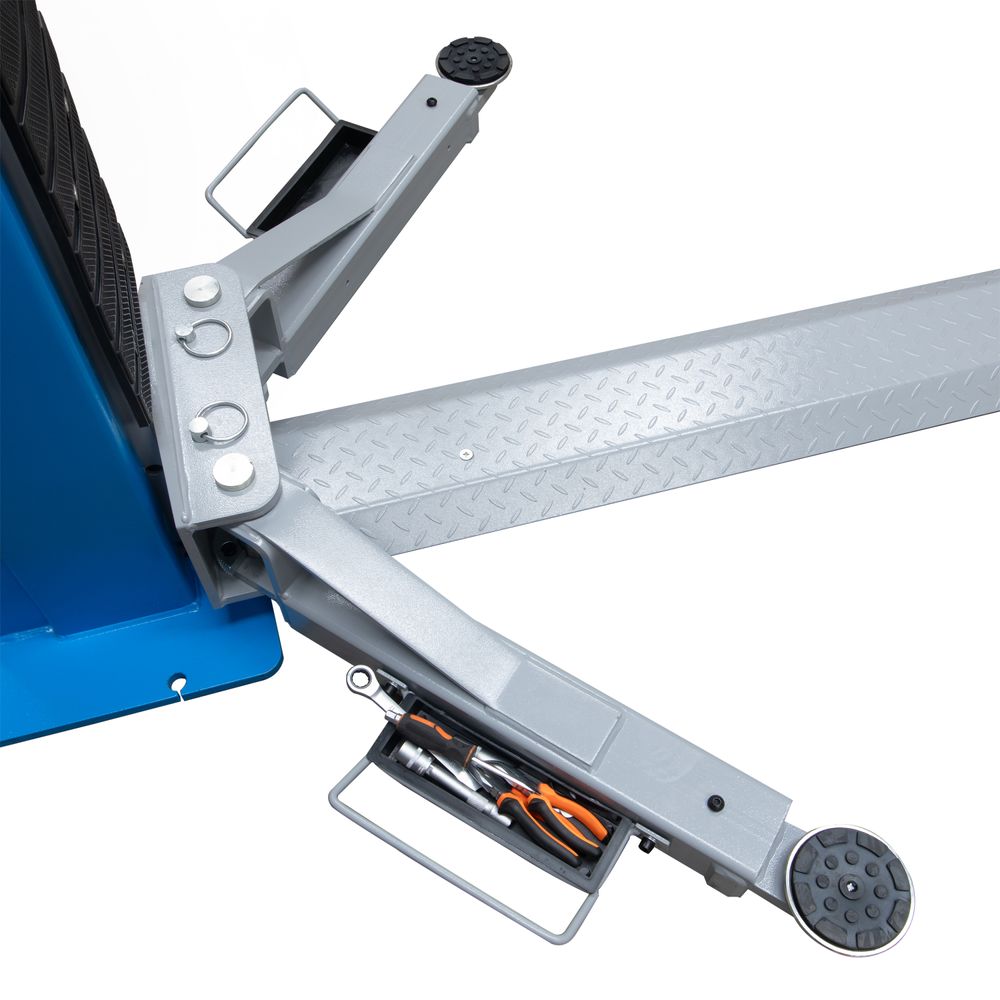

• Asymmetric arms – two pairs of two-stage asymmetric arms (620–880mm and 820–1260mm) make it easier to open the vehicle doors and work on the car
• Easy arm adjustment and locking – the arms are positioned and locked quickly and easily, shortening set-up time

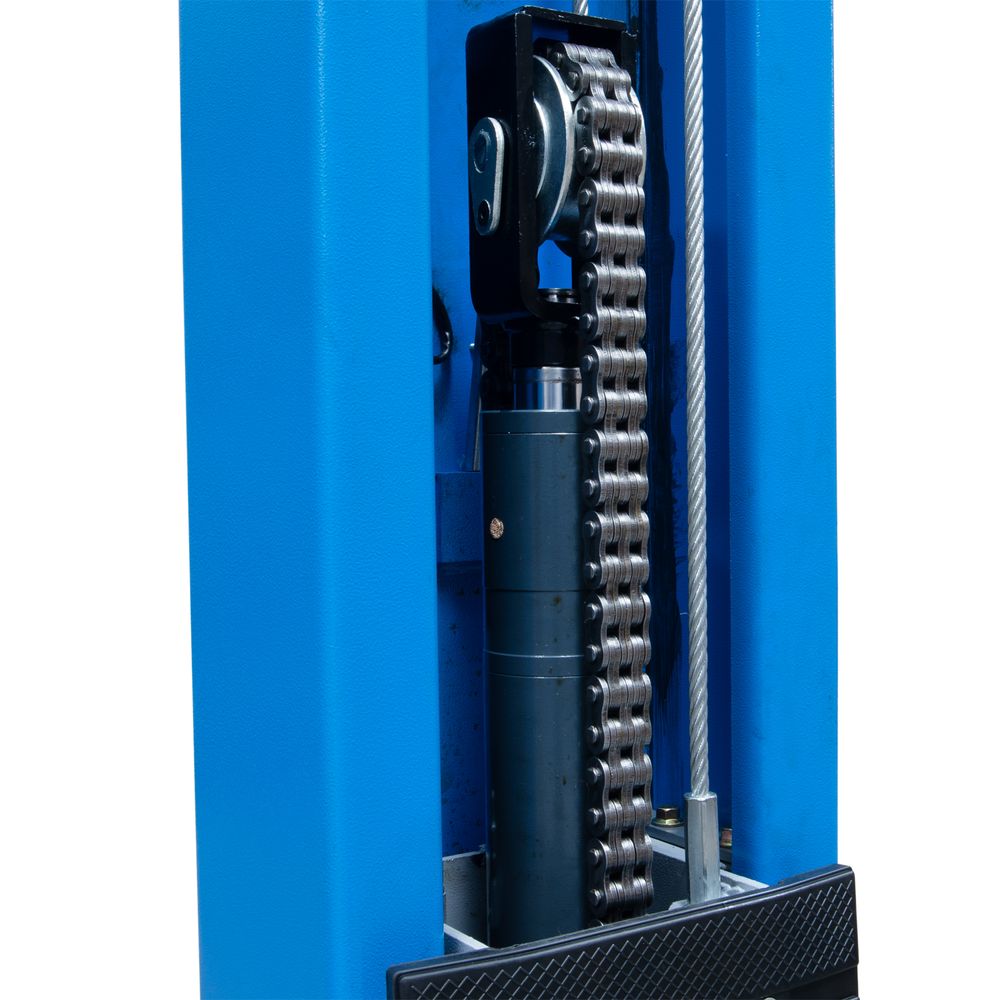

• Hydraulic lifting, steel-cable synchronisation – hydraulic cylinders raise both carriages and steel cables keep them at the same height, for even lifting
• 230V single-phase supply – no three-phase supply needed; can be installed in smaller workshops and garages too
• Replaceable rubber pads – the rubber pads at the ends of the arms (STD-5140M-RP) protect the vehicle sill and are also available separately

Technical data

Typical uses

The STD-5040E is an ideal choice for car repair workshops and tyre shops that lift cars, smaller SUVs and vans every day – for example for suspension repair, oil changes, brake servicing or body repair.

Warning

Installation, commissioning, periodic inspection and operation of the lift must comply with the instruction manual and the regulations in force in the country of use. Otherwise the warranty is void.
