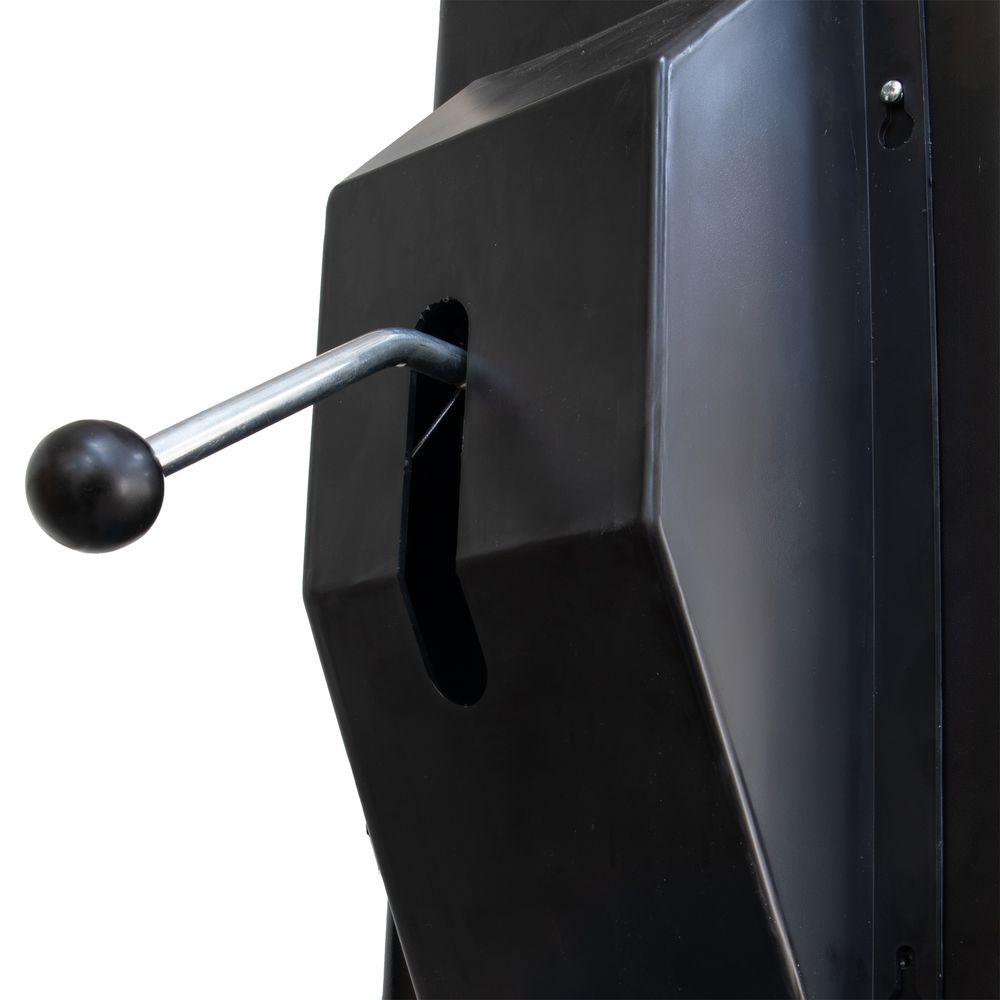

Two-post lift, 4.5t, manual lock release
Product code: STD-5145M 230V
Brand: Lincos
- Debrecen: 21
- Budapest: 21
Product description

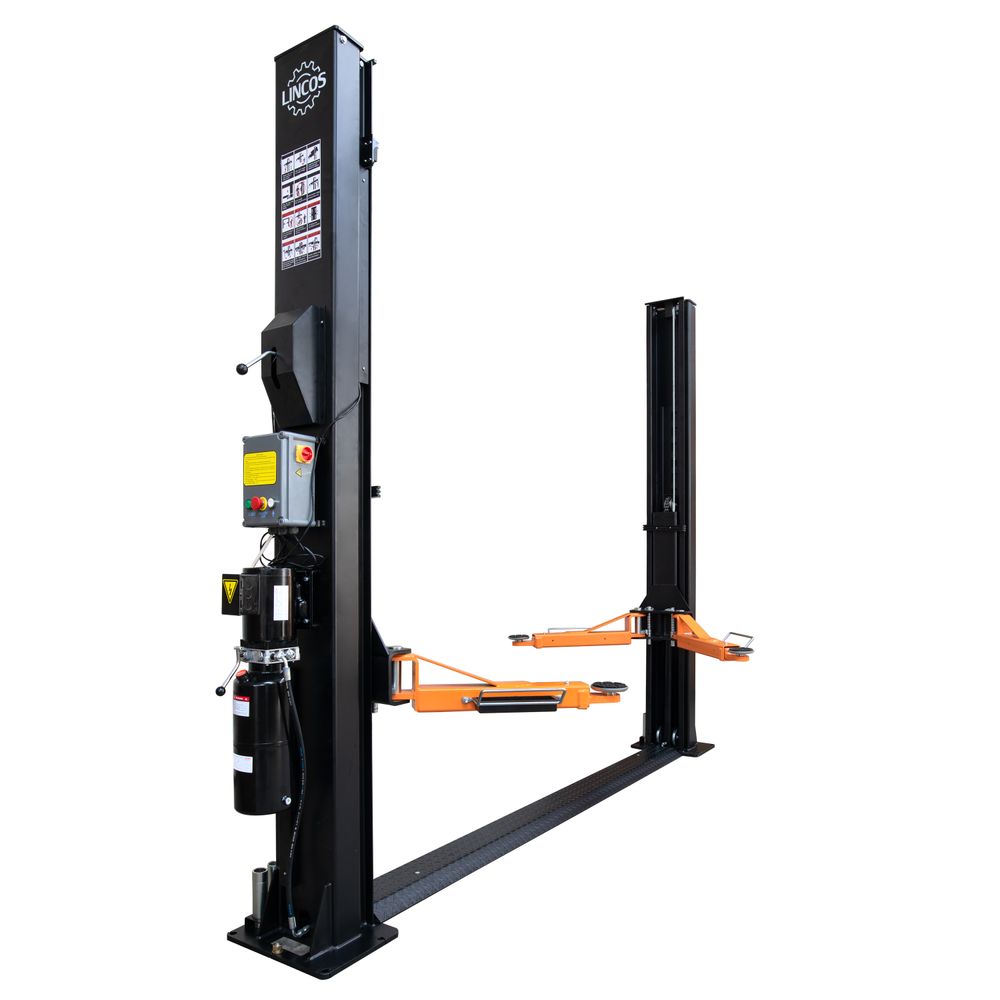

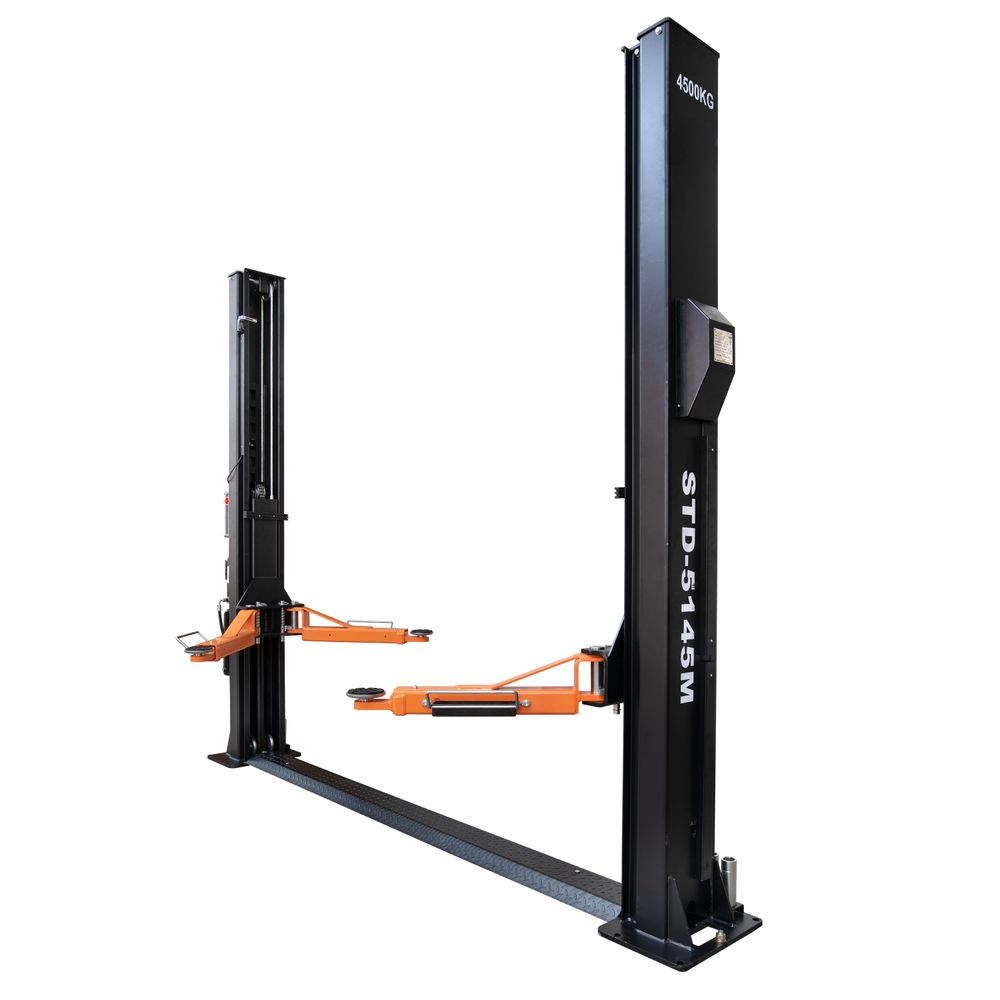

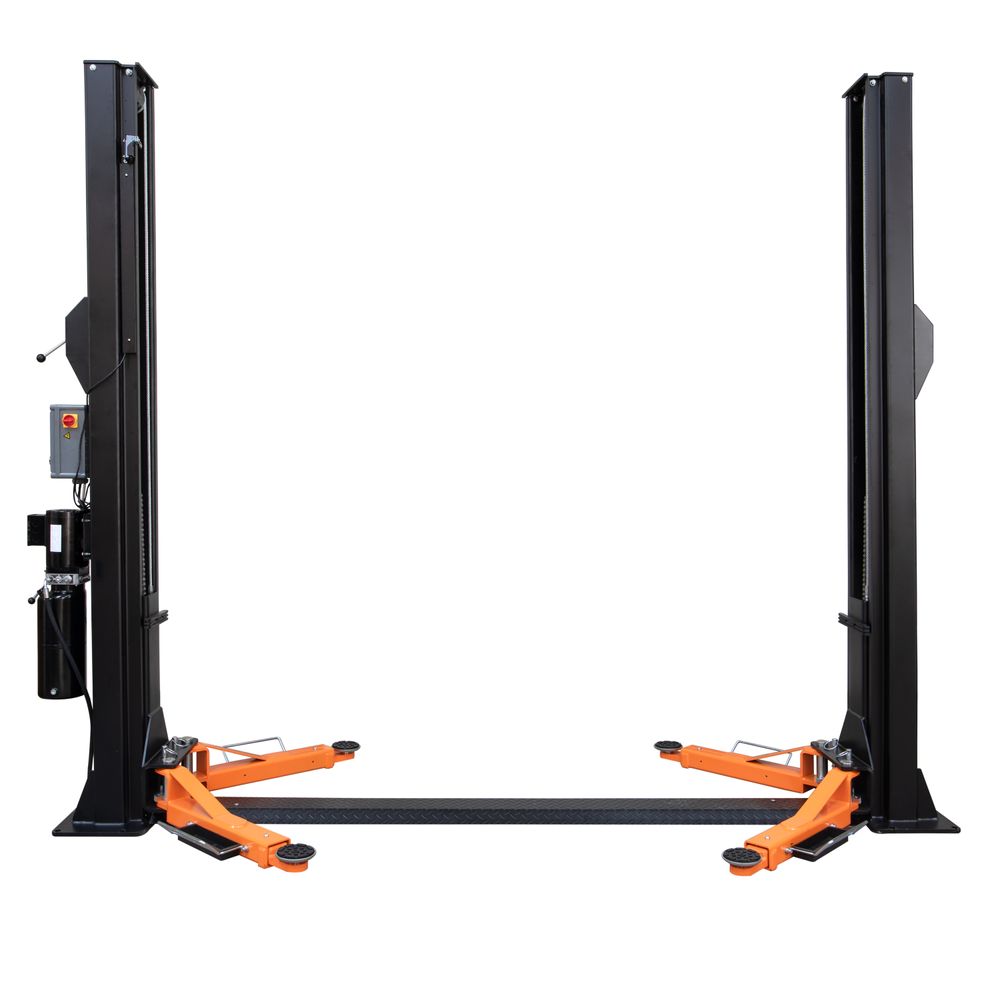

The Lincos STD-5145M two-post vehicle lift is a high-performance hydraulic lift designed for vehicle maintenance, testing, and repair. This lift is ideal for professional workshops looking for reliable and efficient lifting solutions.

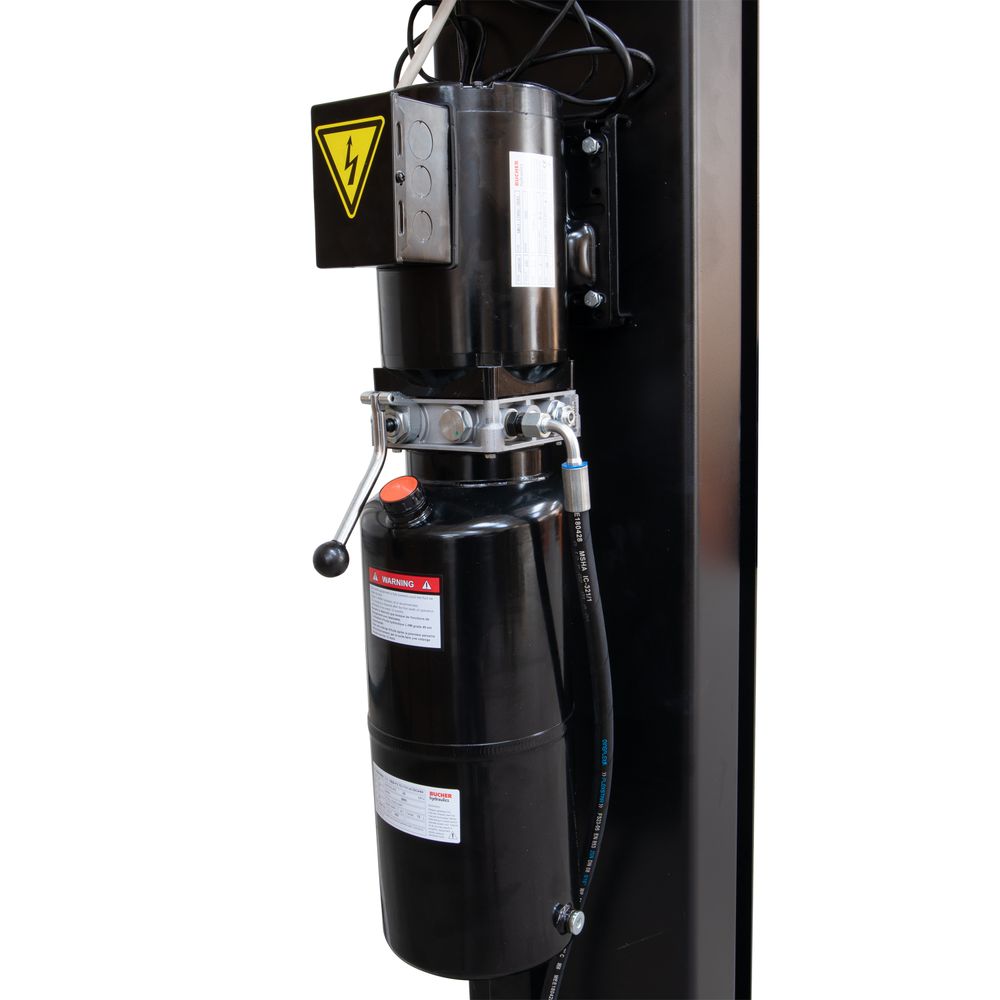

The 2 post lifts are products of our research and development division: a two-cylinder steel-balanced hydraulic lift. Its special features include a lifting capacity of 4500 kg and a hydraulic pulling system with a hydraulic control activator providing power. Power is supplied by oil cylinders installed in its columns.

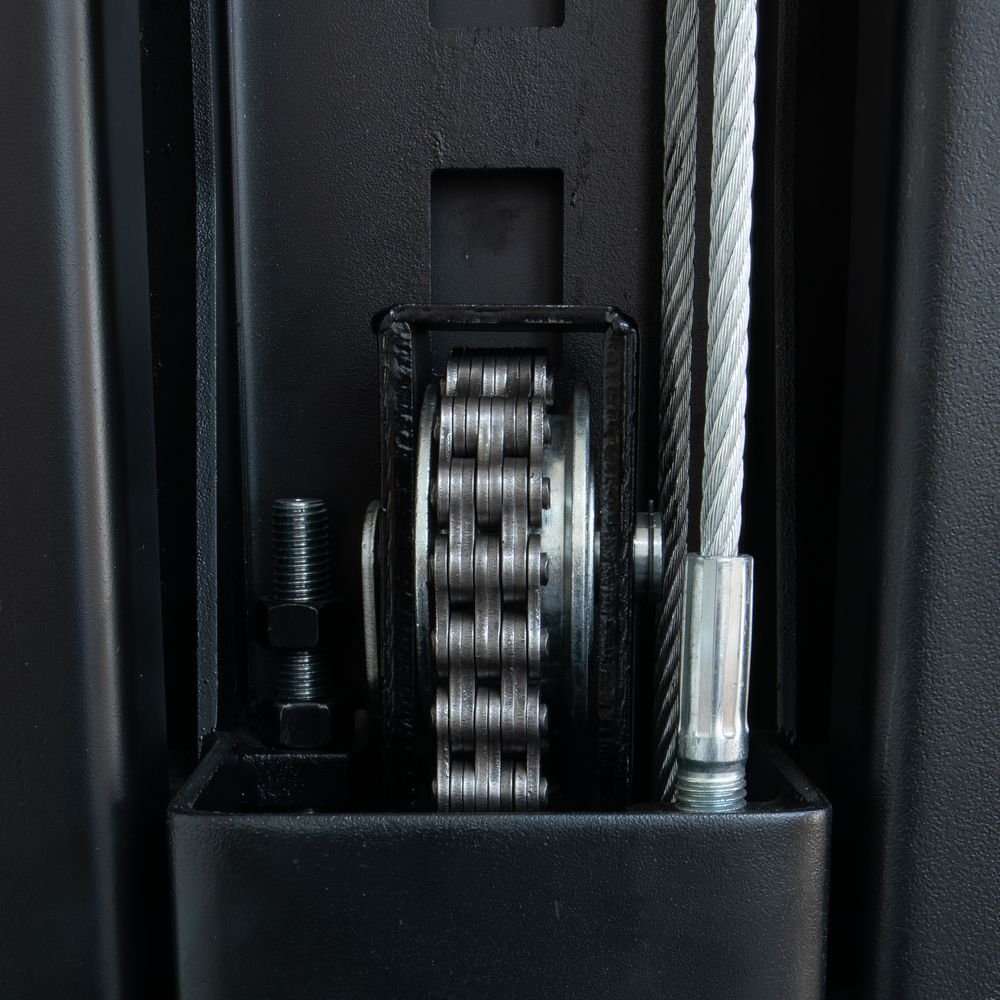

Additionally, a chain system connected through the columns on a slide unit allows free action of the slide unit, giving the lift the capacity to reach relatively high positions.

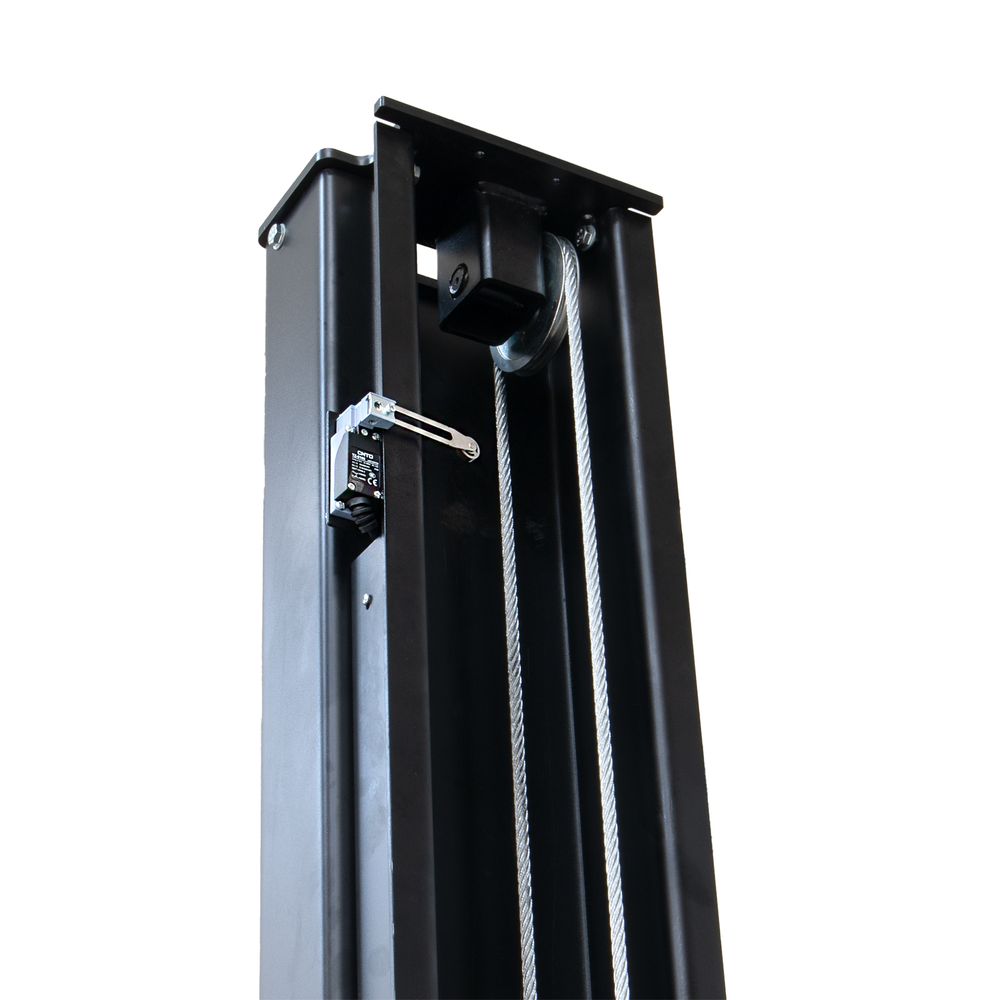

The lift also features synchronized steel cable pulling action and slide unit movement, an electric safety locking system that backs off the lift when activated, one-way and two 2-passage exchange valves in the hydraulic system, and a hydraulic cylinder that freely positions and locks itself.
Key Features

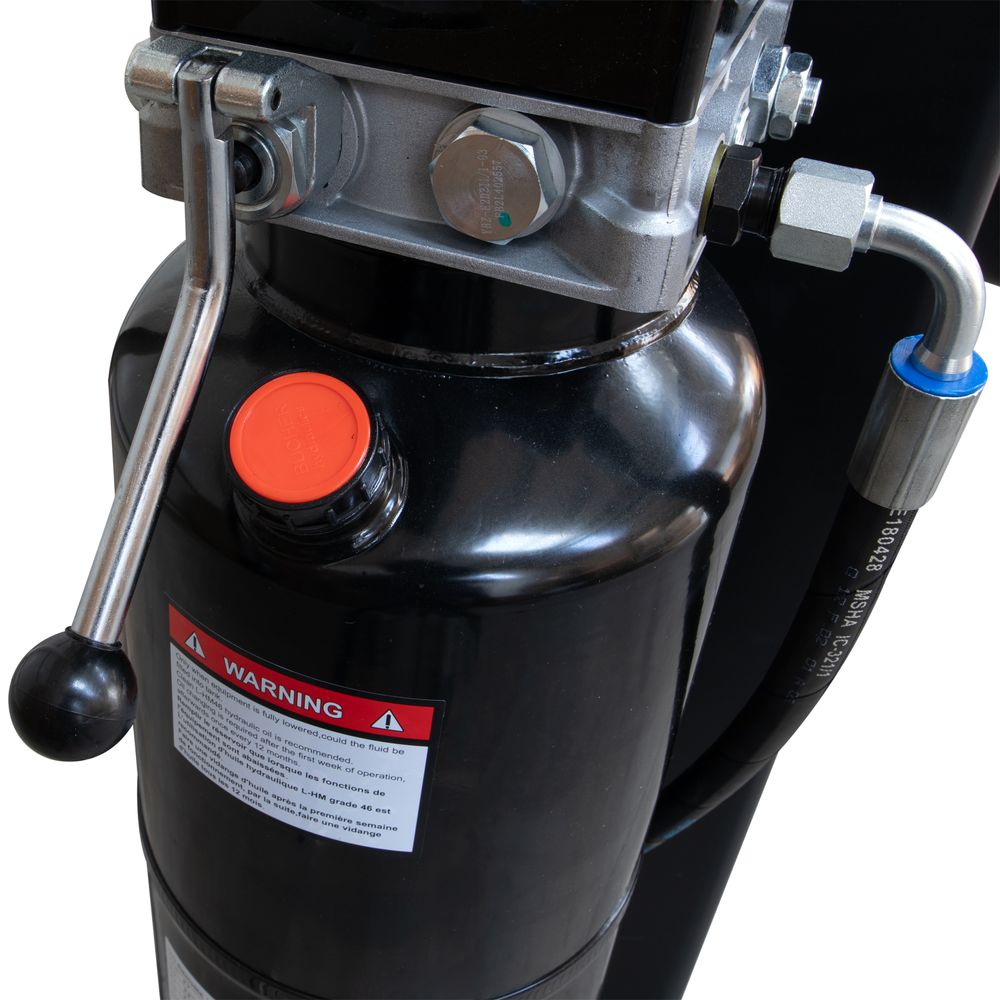

- Hydraulic System: Features a two-cylinder steel-balanced hydraulic lift with a hydraulic pulling system.

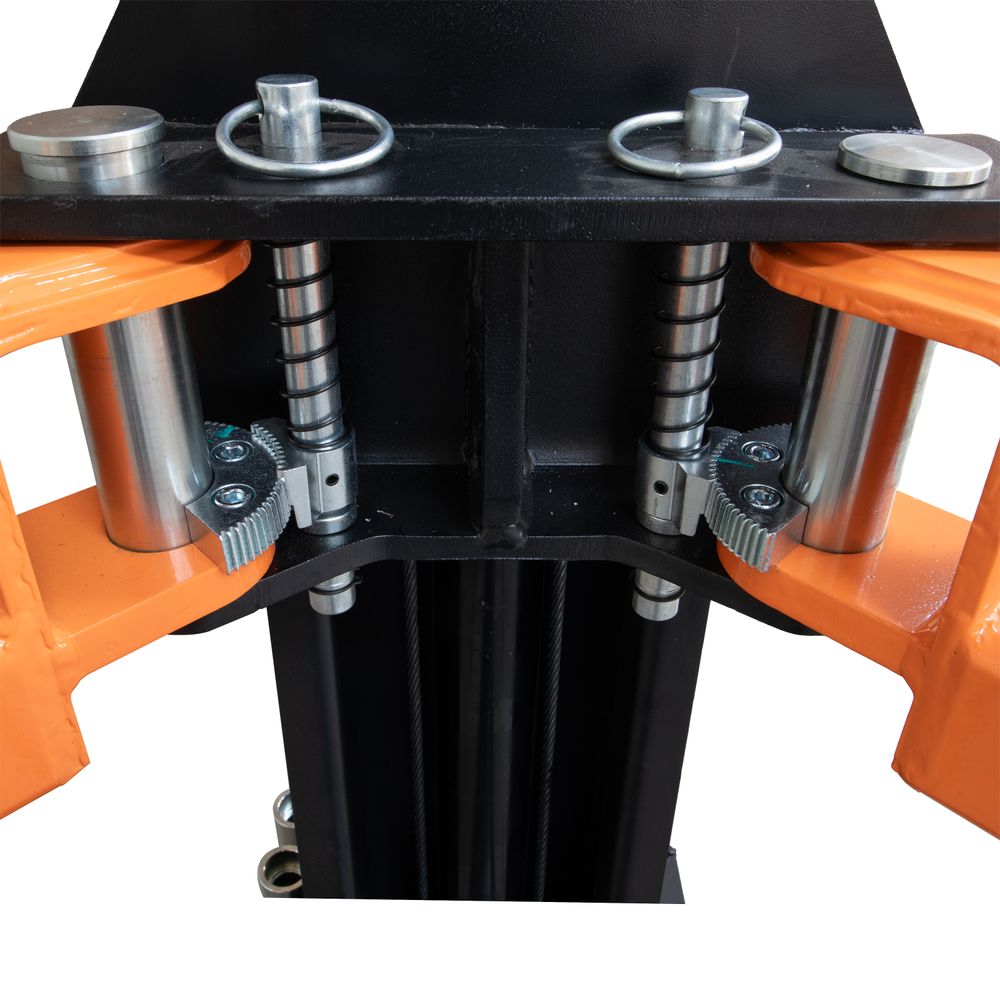

- Safety Mechanisms: Equipped with an electric safety locking system, mechanical safety mechanisms in each carriage, and a maximum pressure valve to prevent overloading.

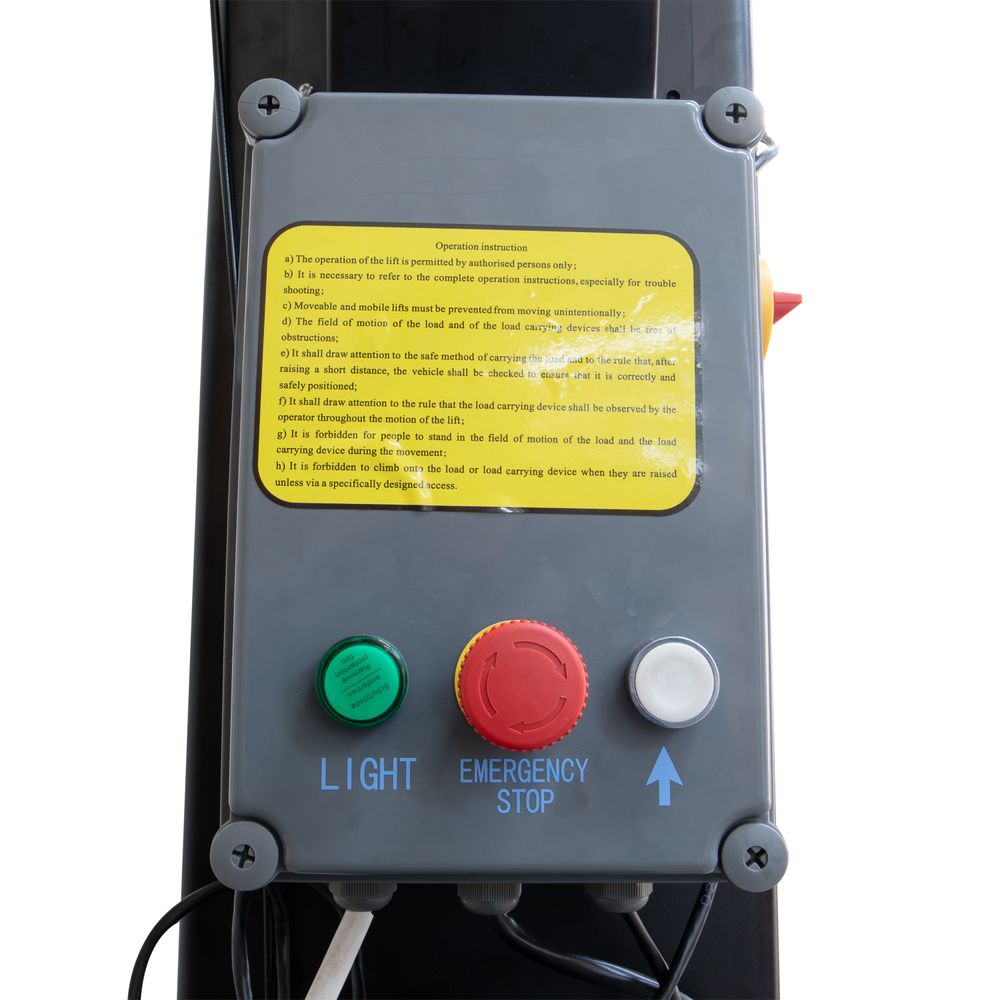

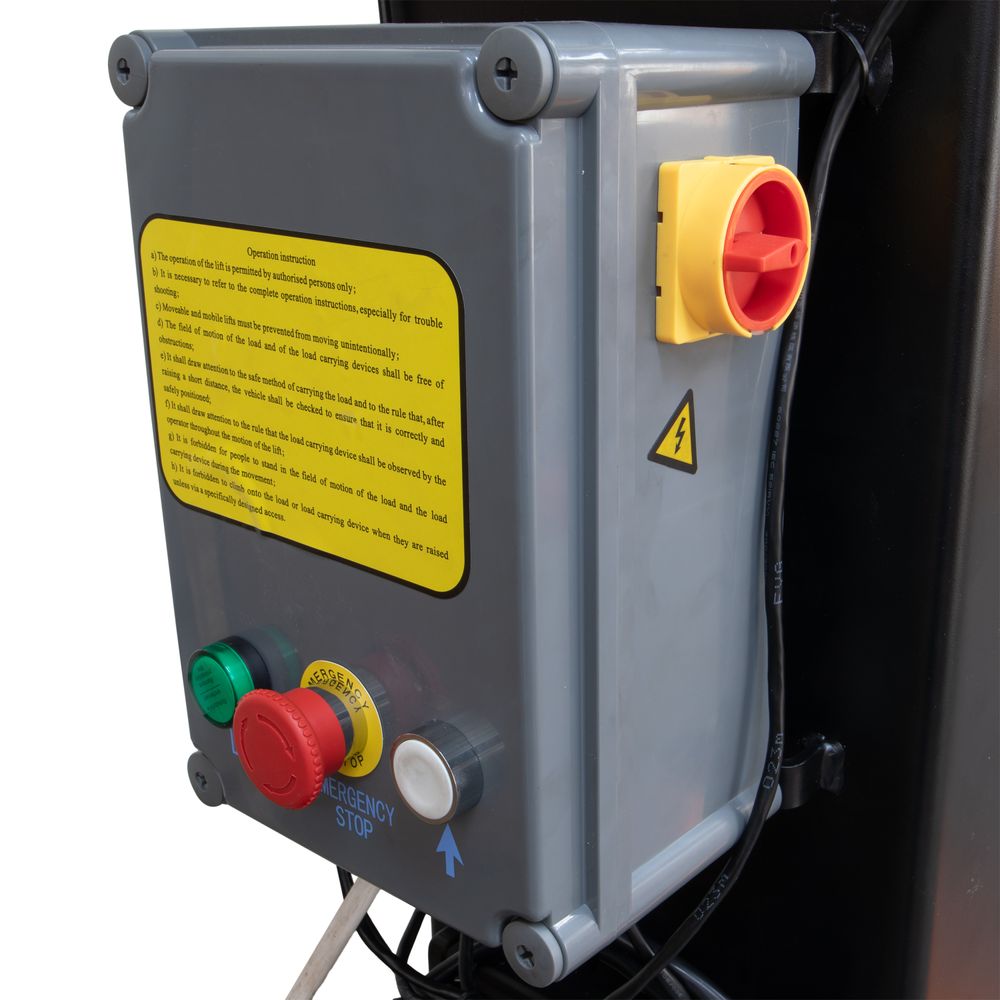

- Ease of Use: The lift is designed with a user-friendly control panel that includes a power switch, emergency stop, lifting button, and operational lamp.
- Durability: Constructed from high-quality materials, the lift ensures long-term durability and reliability.
- Installation Requirements: The lift must be installed on a 3000 PSI concrete floor with a minimum thickness of 250mm.
Technical Specifications
| Parameter | Details |
|---|---|
| Lifting capacity | 4500 kg |
| Lifting time | <50 seconds |
| Descent time | <50 seconds |
| Max. Lifting height | 1850 mm |
| Min. Lifting height | 100 mm |
| Overall width | 3410 mm |
| Column height | 2860 mm |
| Drive through width | 2510 mm |
| Overall height | 3380 mm |

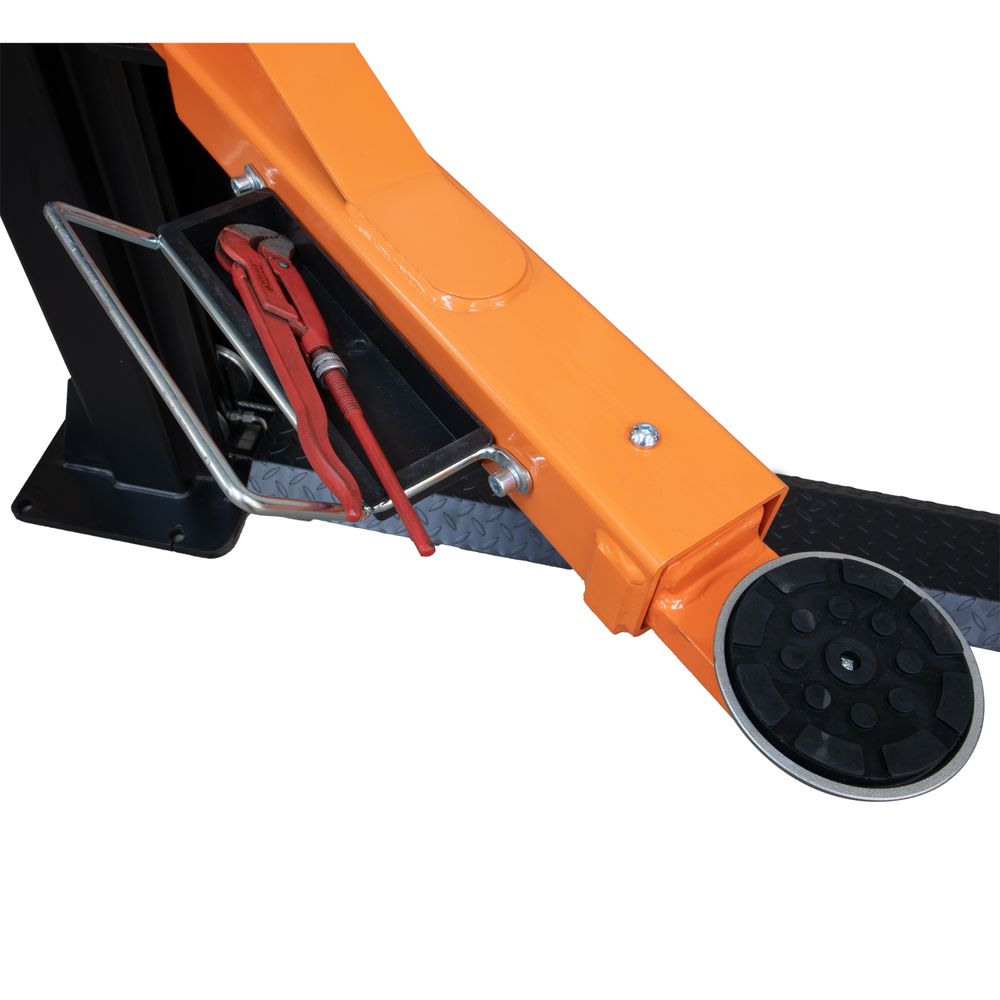

| Arm length | 776 - 1249mm, two-stage |
| Power Supply | 220/230V 1Ph 50/60Hz |
| Power | 2.2 KW |
| Noise Level | ≤75 dB |
| Installation Place | Indoors |
| Net Weight | 655 kg |
| Safety Catch Type | Manual single-side |
| Oil | 10L |
| Oil type | #32 or #46 |
Safety Instructions
- Only authorized personnel should operate the lift.
- Do not exceed the rated lifting capacity of 4500 kg.
- Ensure the mechanical safeties are engaged before working under or near the vehicle.
- The lift is designed for indoor installation only.
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 298 x 47 x 75 cm | 580 kg |
| 2 | 83 x 25 x 32 cm | 21.07 kg |
| 3 | 32 x 24 x 18 cm | 3.29 kg |
