Two-post lift 5,5t
Product code: STD-3550 400V
Brand: Lincos

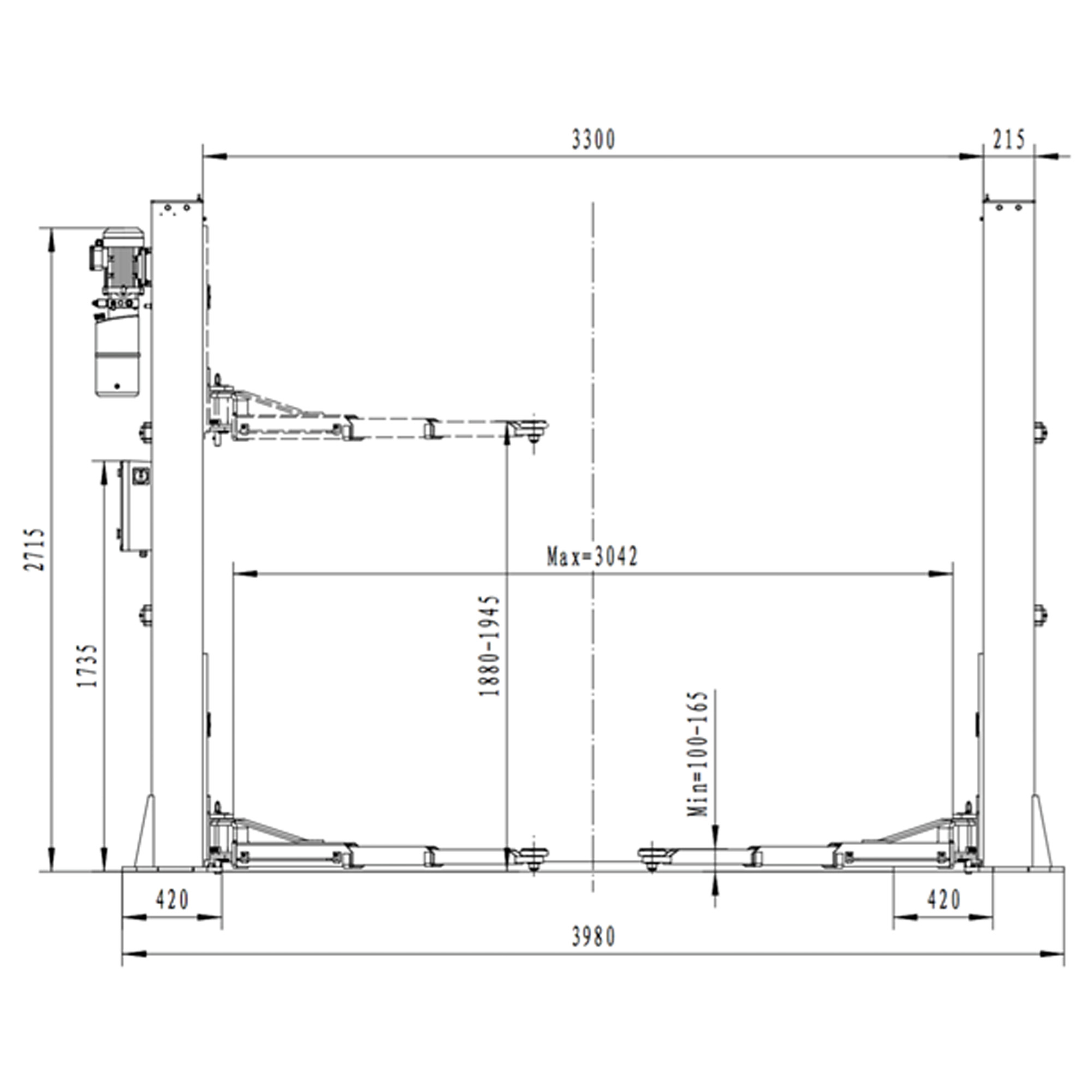

Two-post lift, lifting capacity 5,5 t, electromagnetic lock release, power supply 230V/400V. Bottom interconnection, width between posts 3300 mm, height of post 2815mm, lifting height 1945 mm, lifting time 45-50 s
🟡 Expected in stock on:
29/12/2024
Gross price:
3.981,96 €
Kétoszlopos emelő 5,5t
Two-post lift 5,5t
Two-post lift 5,5t
Two-post lift 5,5t
Kétoszlopos emelő 5,5t
Kétoszlopos emelő 5,5t
Product description
Description:
Electrohydraulic two-column vehicle lift with hydraulic cylinders in each column are designed to lift cars and light commercial vehicles. Side carriages with asymmetric telescopic arms move in the columns. The lifts have recognized design, with reliable hydraulics and high operational safety. All types of lifts are equipped with teeth that lock the safety release latches when moving up. When moving down, the safety latches are unlocked by safety electromagnets with a 24 V control voltage. The lifts are designed for years of reliable, low-maintenance operation.
Features:

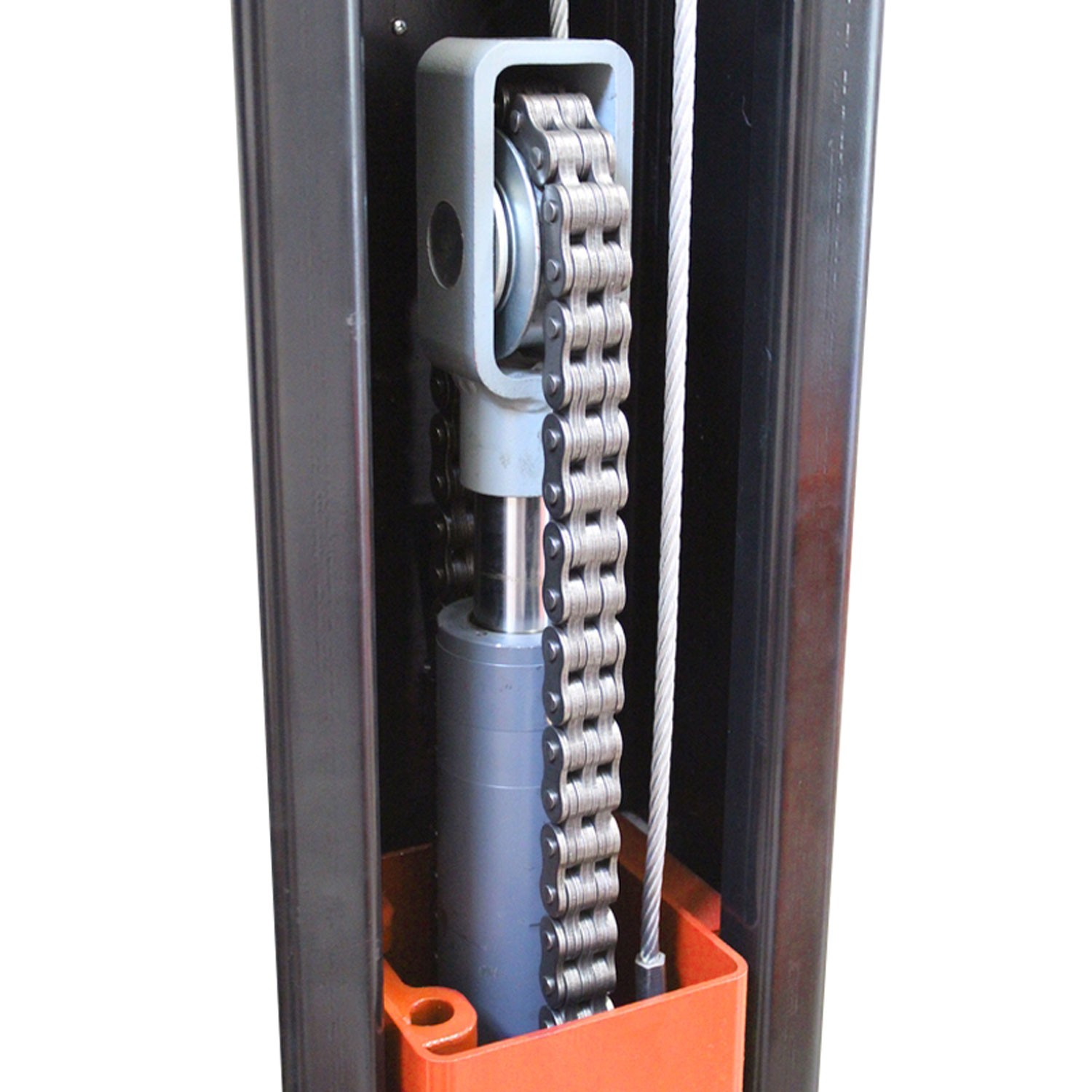

- Hydraulic cylinders in each column
- Electrohydraulic lock release
- Strong, stable columns fixed to the ground to provide a safe workflow
- Rubber bumper to protect the doors of the car
- Hydraulic safety valve
- Compact, hydraulic control panel
- International CE standard design
Technical specifications:
| Min. lifting height | 100 mm |
| Max. lifting height | 1945 mm |
| Lifting capacity | 5500 kg |
| Height of columns | 2815 mm |
| Width between columns | 3300 mm |
| Lifting time | 45-50 s |
| Lowering time | 30-50 s |
| Power consumption of the engine | 3 kW |
| Voltage of control panel | 24V |
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 290 x 55 x 78 cm | 820 kg |
| 2 | 325 x 22 x 6 cm | 33 kg |
| 3 | 82 x 24 x 33 cm | 23 kg |
