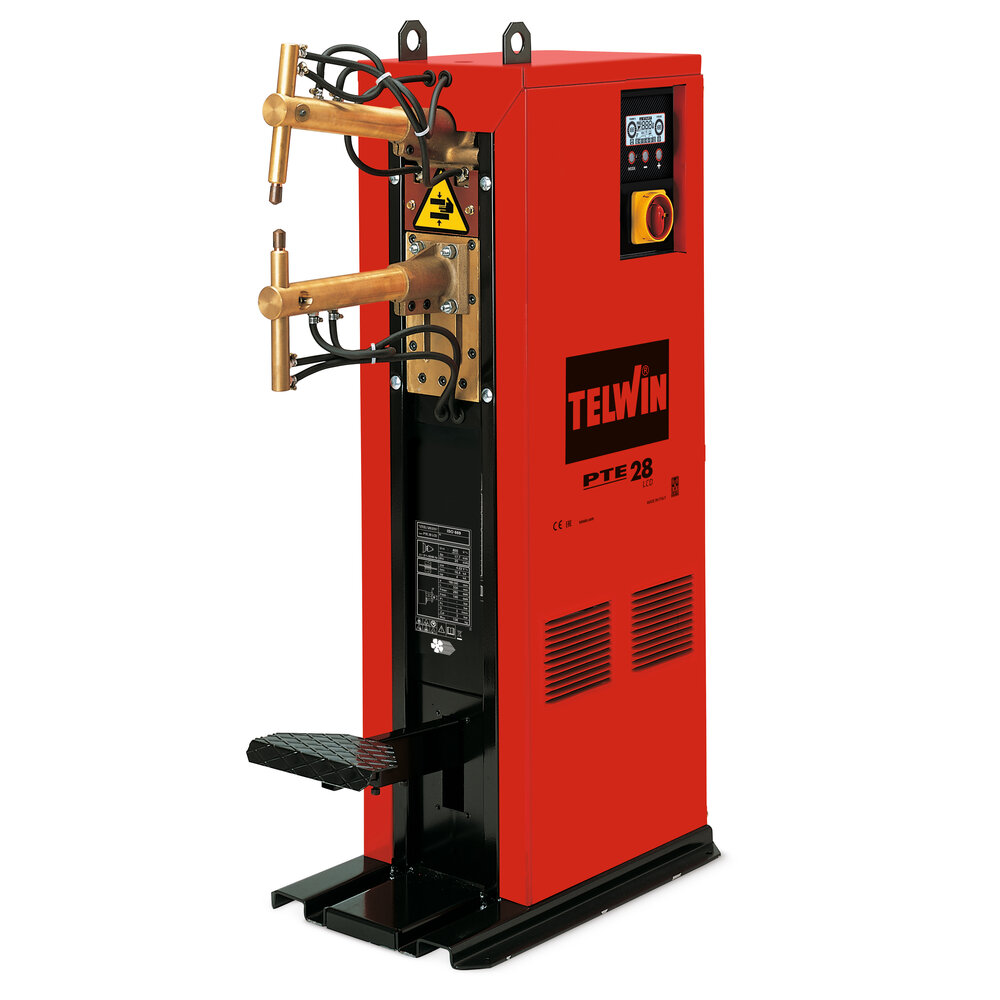

PTE 28 LCD spot welder,  400V + 700mm Arms

PTE 28 LCD spot welder, 400V + 700mm Arms

Product code: 824208

Brand: Telwin

Column spot welding machine with movable arms, microprocessor digitally controlled. The digital, multifunction LCD control panel allows to operate: in EASY mode (setting of spot welding current and time); in EXPERT mode (setting of different spot welding parameters) storing up to 20 customised programmes. It operates both in continuous and pulse mode and grants optimum results on different kinds of steel.
🔵 Available in 9 days
Gross price: 5.505,91 €
PTE 28 LCD spot welder,  400V + 700mm Arms
PTE 28 LCD spot welder, 400V + 700mm Arms

Product description

Spot welding is a type of resistance welding, where mechanical and electrical forces are applied to metals during the welding process. In this method, two electrodes clamp the metal pieces together and then a current is passed through them after they are connected. This current and the high pressure applied create reinforced bonds between the metals in a relatively small area by transferring electrical energy.

Main features

  • Column resistance welding machine (spot welding machine) with movable arms with mechanical activation, with multi-functional LCD digital panel. Continuous and pulse operation on steel, stainless steel and galvanised sheet metal.
  • Possibility of working in EASY or EXPERT mode. Up to 20 customisable spot welding programs.
  • Adjustment of the spot welding current (%), spot welding time (cycles), pressure and speed of electrodes closure and air flow adjustment for slowing arms closure. Choice of various spot welding cycle parameters.
  • Requires liquid cooling of electrodes and arms.
  • Mechanical pedal control.
  • Thermal protection with indicator.
  • Gap setting of the arms.
  • Equipped with 700mm arms.

Specifications

Double phase mains voltage: 400V Mains frequency: 50/60Hz
Max. spot-welding current: 16400A Max. no load voltage: 4,2V
Max. absorbed power: 60kW Rated Power X=50%: 25kW
Max. electrodes power: 220DAN Max. weld.thick. on 2 sheets: 5+5mm
Duty cycle: 5,5% Arms projection: 330mm
Protection degree: IP20 Power factor: 0,7
Weight: 147kg Dimensions: 79 x 32 x 128cm

Product packing

Pack number Dimensions Weight
1 62 x 32.5 x 53 cm 153.18 kg
