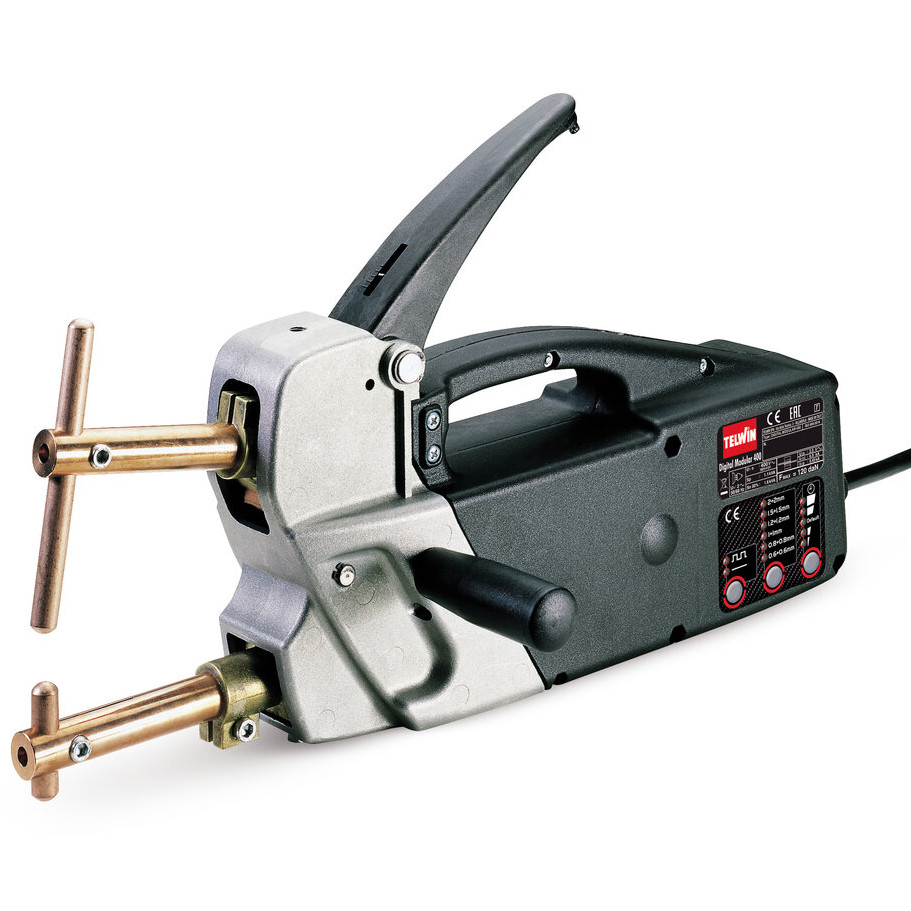

Digital Modular 400 spot welder, 400V
Product code: 823017
Brand: Telwin
Product description
Main features
- Micro-processor controlled resistance welding machine (spot welding machine). It implements a new Fuzzy logic control system that simplifies its use and increases the spot welding quality.
- Suitable for spot welding of sheets with maximum thickness 2+2mm.
- Automatic adjustment of spot welding parameters (time, current) according to sheet metal thickness.
- Pulse operation for HSS, galvanised and oxidised sheet metal.
- Arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
- Handgrip made out of thermic isolating material
- Thermal protection
Specifications
| Single phase mains voltage: 400V | Mains frequency: 50/60Hz |
| Peak spot-welding current: 6900A | Max. no load voltage: 2,5V |
| Duty cycle: 1,5% | Rated Power X=50%: 1,6kW |
| Max. weld.thick. on 2 sheets: 2+2mm | Power factor: 0,9 |
| Protection degree: IP20 | Dimensions: 44 x 10 x 18,5cm |
| Weight: 10,3kg |
Product packing
| Pack number | Dimensions | Weight |
|---|---|---|
| 1 | 34 x 46 x 17 cm | 11.3 kg |
Delivery fee
| Delivery method | Gross price |
|---|---|
| Pickup in Nagytarcsa | 0,00 € |
| Pickup in Debrecen | 0,00 € |
| DHL Worldwide Express | 152,30 € |
Downloads
