Electro-hydraulic motorcycle lift 300kg
Product code: HML300
Brand: Lincos
- Budapest: 0
- Debrecen: 7
Product description
Description
The sturdy construction of the lift ensures stability and durability during use. It is built to safely support the weight of motorcycles, providing a secure platform for maintenance tasks such as oil changes, tire replacements, and general repairs. It can be used in various settings, including home garages, motorcycle workshops, or professional repair shops. Its compact design allows it to fit in tight spaces, making it suitable for both small and large work areas.
The lift has been designed to lift motorcycles and make them stand at any level between the minimum and maximum height. The maximum lifting weight, including any additional load on the vehicle, is as specified on the serial plate. All mechanical frames, such as platforms, extensions, base frames and arms have been built in steel plate to make the frame stiff and strong while keeping a low weight.

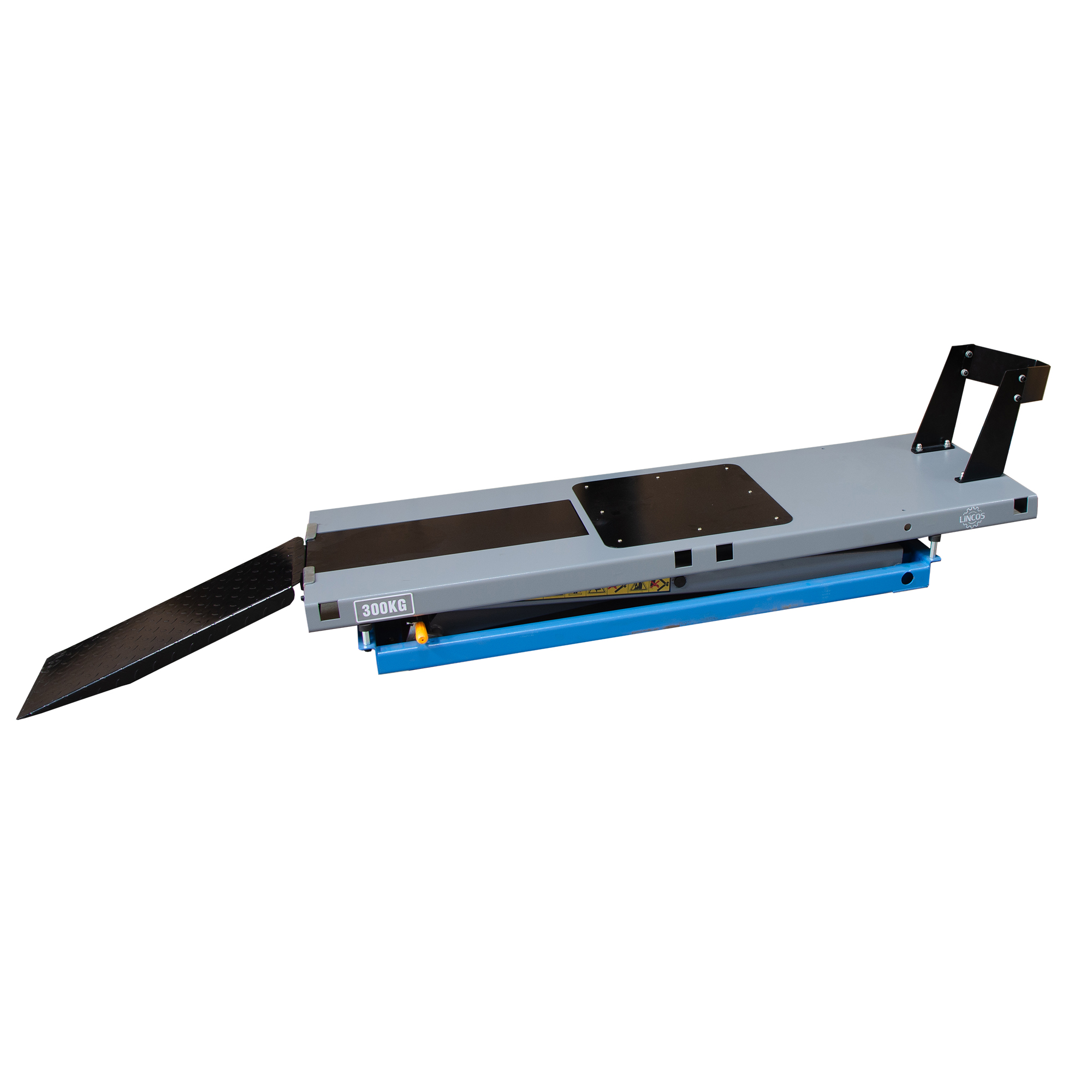

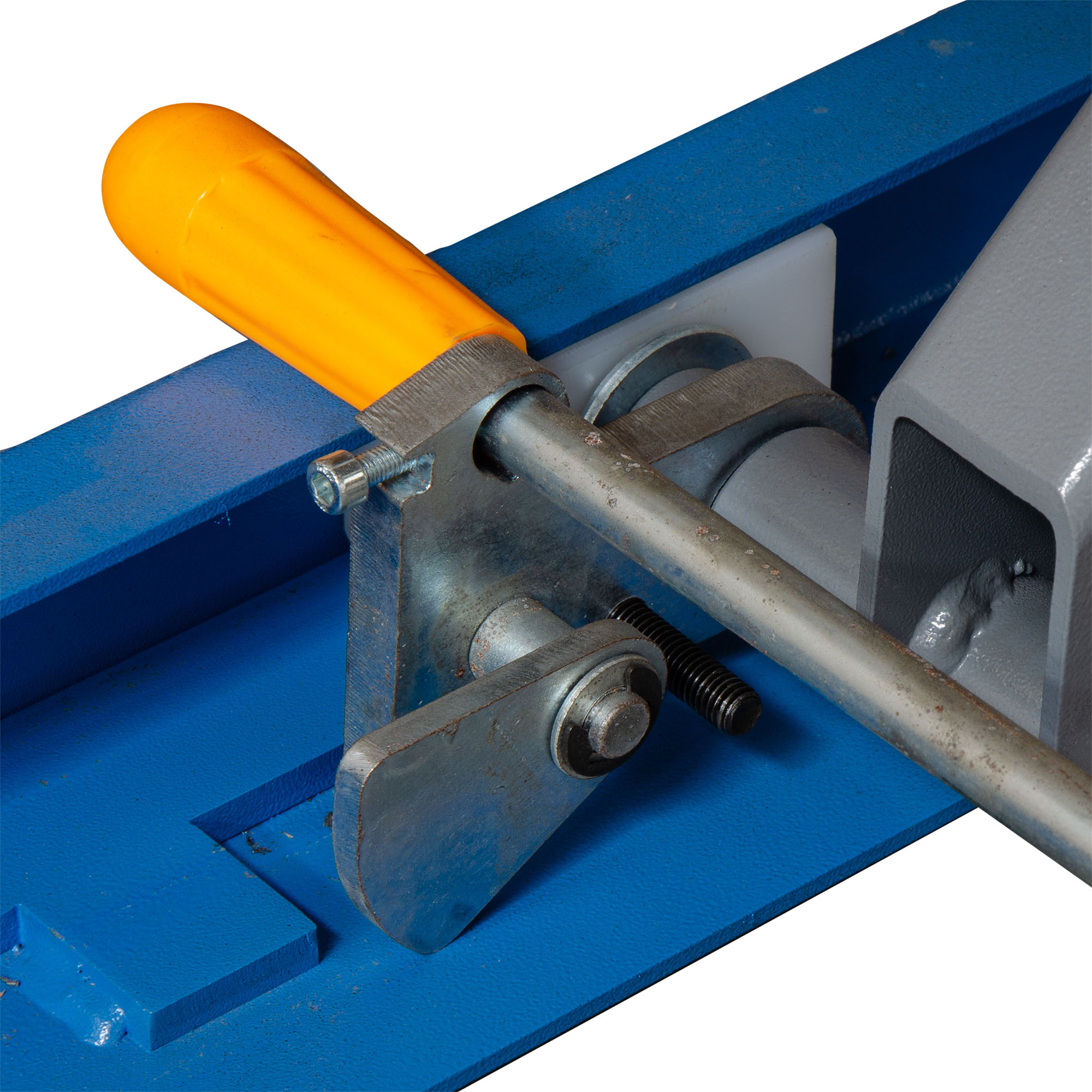

The lift is composed of one platform connected to the base frame and anchored to the ground by means of a set of bolts. The platform is linked to the base frame by means of a pair of arms. The platform is equipped with a ramp which can pull out for access of a motorcycle and be folded under the working table when the lift is completely lifted The lifting system is composed of two arms and one cylinder. Lift lowering and lifting are carried out by means of a hydraulic pump. The mechanical safety operating by a slider is installed at the base of the inside arm.
Specifications
- Capacity 300Kg
- Maximum lifting height 900mm
- Minimum height of lift 210mm
- Length of the platform 1830mm
- Width of platform 600mm
- Lifting time 30s
- Noise level 70 dB(A)/1m
- Working temperature -10°C ÷40°C
Pump
- Type Hydraulic
- Max. working hydraulic pressure 700 bar (10000psi)
- Volume of oil reservoir 750cc
Product packing
Pack number | Dimensions | Weight |
---|---|---|
1 | 187 x 62 x 28 cm | 270 kg |
2 | 73 x 30 x 41 cm | 30 kg |
